6

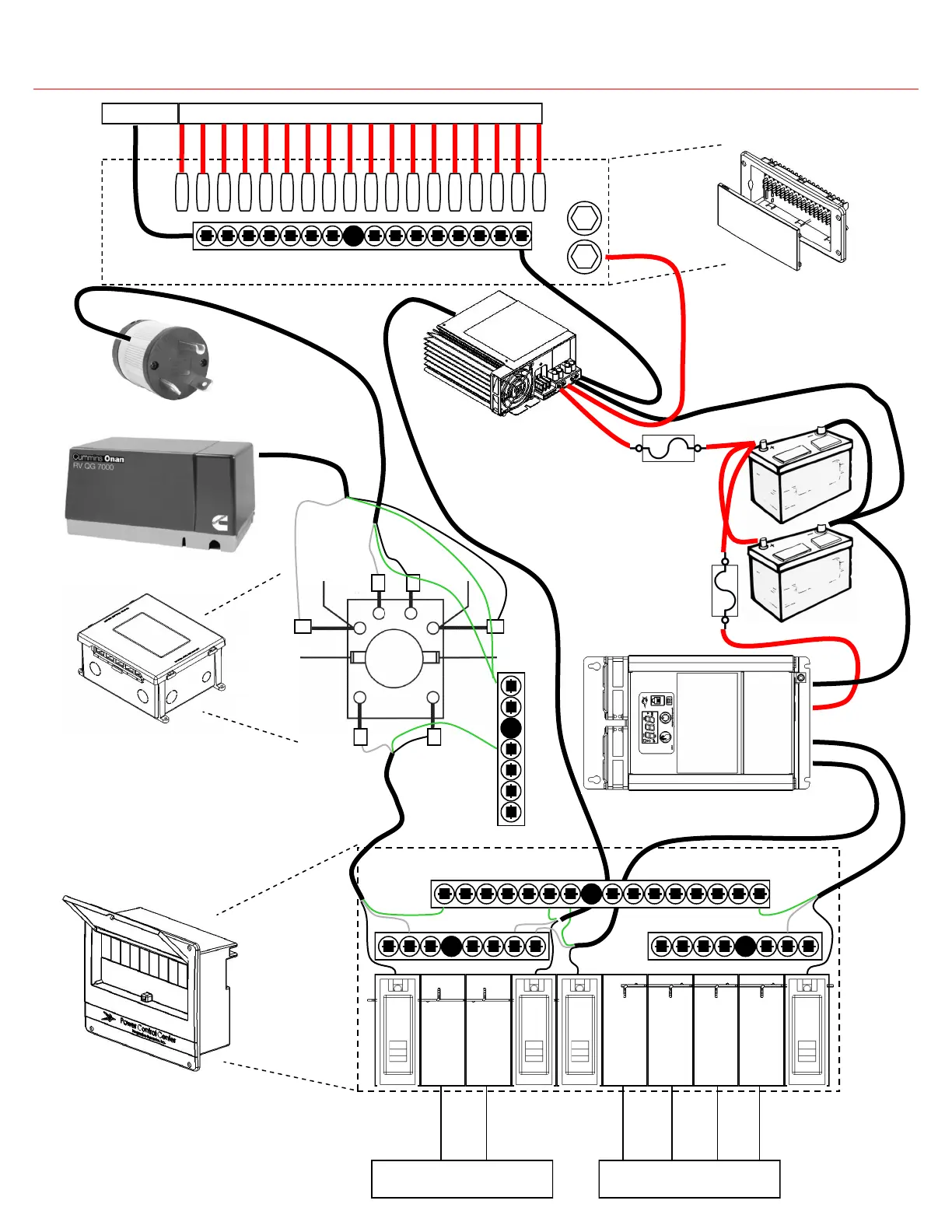

The PD1600 Series Inverter in a 30A RV Power System
MAIN NEUTRAL SUB NEUTRAL
12V BATTERY
BANK
PD9200 SERIES
CONVERTER
PD60 SERIES
DC DISTRIBUTION PANEL
MAIN
SUB
PD51 SERIES
TRANSFER SWITCH
PD55 SERIES
AC DISTRIBUTION PANEL
GROUND
GROUND
TO DC LOADS DC GROUND
GROUND
TO AC LOADS (HOT)
(SHORE/GENERATOR ONLY)
30A 20A
TO AC LOADS (HOT)
(SHORE/GENERATOR/INVERTER)
15A 20A
GENERATOR
SHORE CONNECTION
PD1600 SERIES
INVERTER
AC IN
AC OUT
DC+
DC-
SHORE
NEU
PANEL
HOT
PANEL
NEU
GEN
NEU
GEN
HOT
NOTE:
REFER TO WIRING DIAGRAM INCLUDED
WITH PD51 SERIES TRANSFER SWITCH
SHORE
HOT
