PROHEAT M-SERIES SERVICE MANUAL
3-17
IGNITION MODULE
SCREWS (2)
NOZZLE
FLAME SHIELD
IGNITION
ELECTRODE
ASSEMBLY
FUEL PUMP
FUEL SHUT-OFF VALVE
FUEL REGULATOR

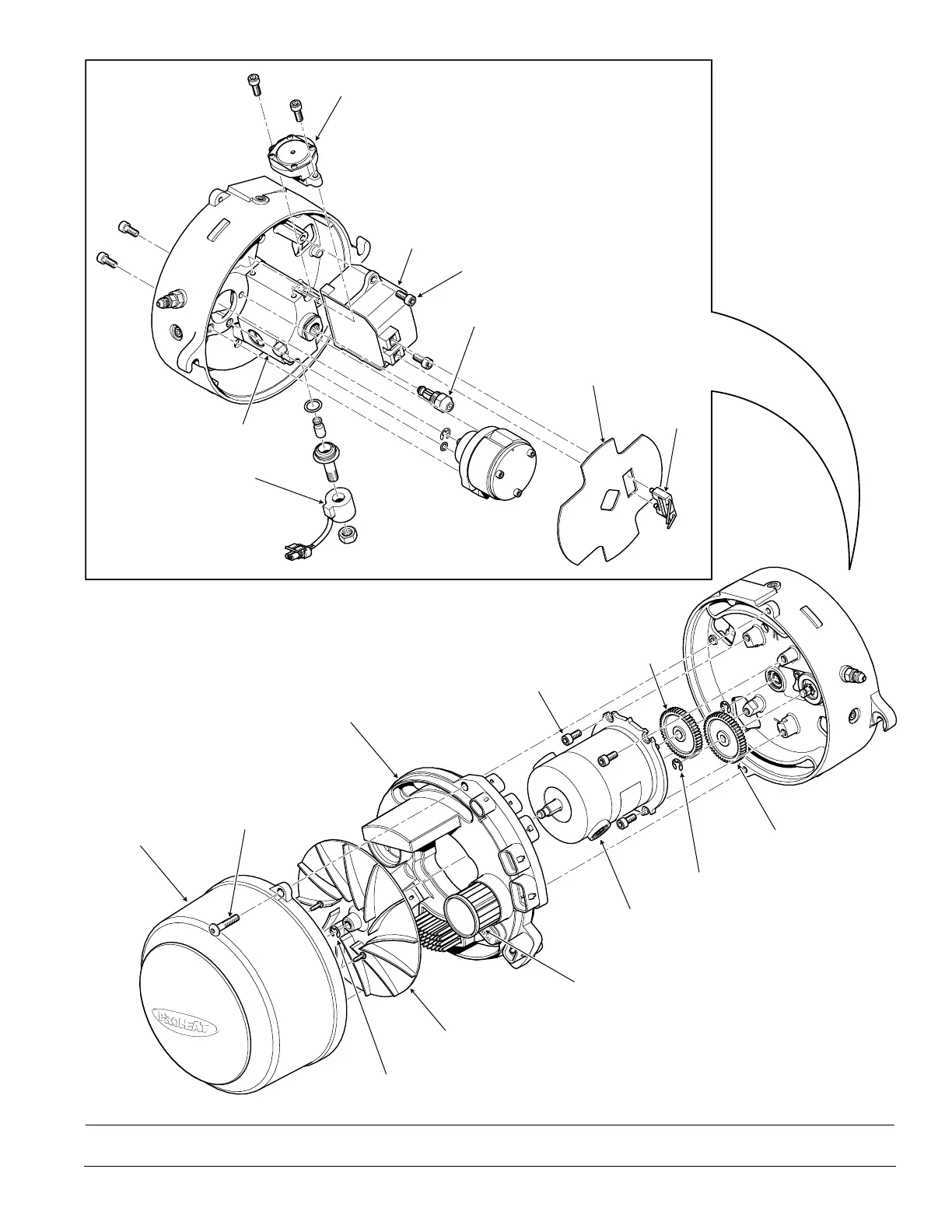

Figure 3-18: Fuel Supply Pump Removal
BLOWER HOUSING
BLOWER RETAINING SNAP RING
BLOWER
AIR COMPRESSOR FILTER
MOTOR
AIR COMPRESSOR GEAR
DRIVE GEAR
PCM
AIR COMPRESSOR GEAR RETAINING RING
HOUSING SCREWS
TORQUE = 75 in-lbs
MOTOR SCREWS
TORQUE = 75 in-lbs
