X30 Owner’s Handbook Page 15

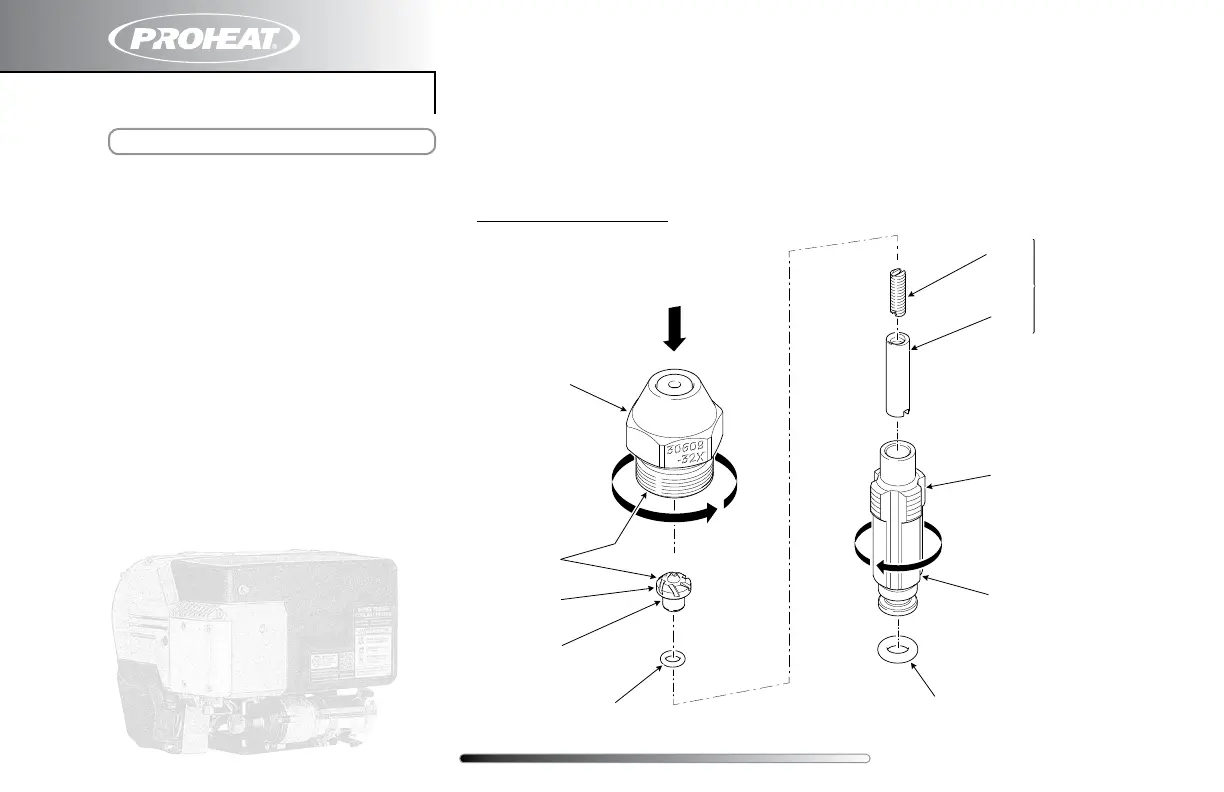

cleaN Nozzle
Nozzle
Distributor
Apply Compressed Air
in this Direction
Holes & Grooves
Must be Clear
Stem
Inner
Rod
Outer
Barrel
Thread together
until flush. Do not
press together.
No Nicks in O-ring
Counter Bore
No Nicks in O-Ring
• Remove and install nozzle as per Installation & Service manual SL9211. Torque to 150 in/lbs. (17.35 Nm).
• To properly clean the nozzle use a degreaser/cleaner or carburetor cleaner in a spray can. This will
wash any dirt out and leave no residue. When using compressed air, blow into the nozzle orifice
from the head end ONLY.
Tor que to 30 ±3 In/Lbs
(3.4 ±0.3 Nm)
HOLD NOZZLE
UPRIGHT TO
ASSEMBLE
Caring for your PROHEAT
