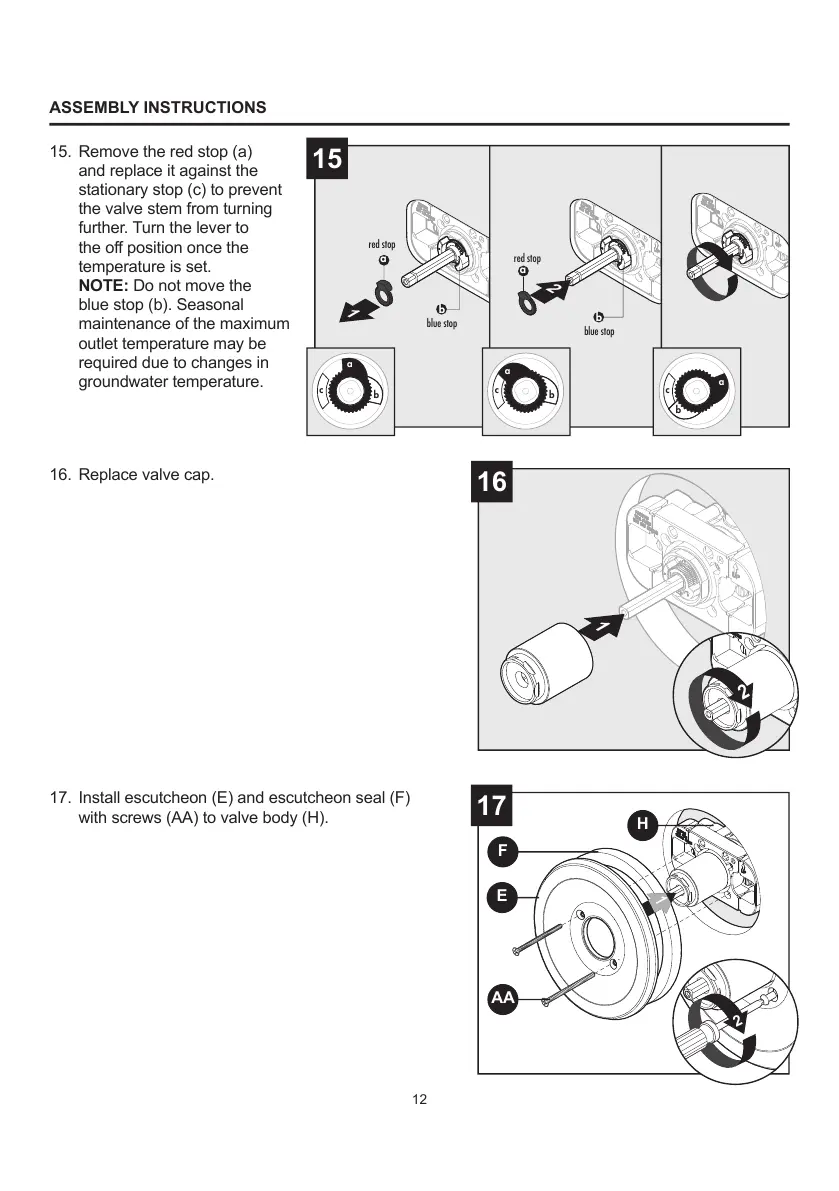

ASSEMBLY INSTRUCTIONS
17. Install escutcheon (E) and escutcheon seal (F)
with screws (AA) to valve body (H).
1
17
17
F
H
E
AA
2
16. Replace valve cap.
1
16
16
2
15. Remove the red stop (a)
and replace it against the
stationary stop (c) to prevent
the valve stem from turning
further. Turn the lever to
the off position once the
temperature is set.
NOTE: Do not move the
blue stop (b). Seasonal
maintenance of the maximum
outlet temperature may be
required due to changes in
groundwater temperature.
