ASSEMBLY INSTRUCTIONS
FAUCET AND DRAIN KIT

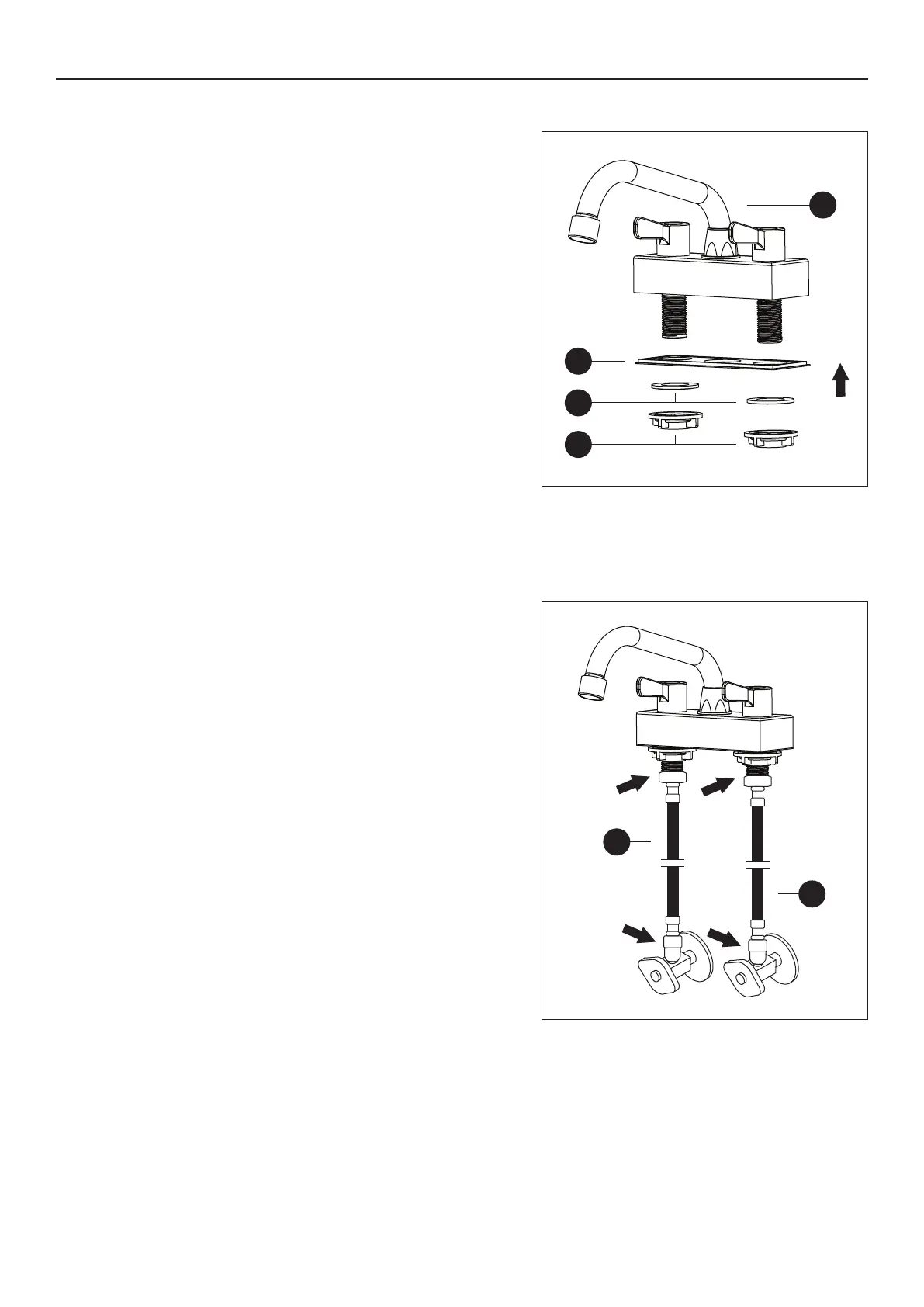

Slide the faucet body (E) and base plate (F) into
the faucet sink holes and position the gaskets (G)
in place.
Position the laundry tub in its installation location.
Connect the exible water supply lines (I) to the
hot and cold supply lines.
Note: Ensure the hot supply line (marked red)
connects to the hot supply and the cold supply
line (marked blue) connects to the cold supply
line. If additional supply line length is needed,
installer must purchase additional parts separately.
Slide the locknuts (H) up to the gaskets and
tighten by hand until snug. Use a wrench to
ensure locknuts are fully tightened.
Carefully grab the entire sink assembly and ip it
over. Move the sink into position to connect your
water lines and waste pipe.
8.
9.
10.
11.
E
F
I
I
G
H
To Next Page
