ASSEMBLY INSTRUCTIONS
FAUCET AND DRAIN KIT
Note: After everything is connected and the sink is located in its nal position, the sink may
be anchored to the oor via the sink feet. There are four pre-drilled holes in each of the feet.
Screws (not included) can be drilled to the oor through these holes.
Measure the drain tube so that it makes a trap
and cut to length. Afx the second threaded
adapter to the trimmed end of the drain tube.
Use the threaded adapter to connect the drain
tube to the drain line, tightening by hand until
snug. DO NOT use a wrench.
Note: It can be installed as an S-trap as well.

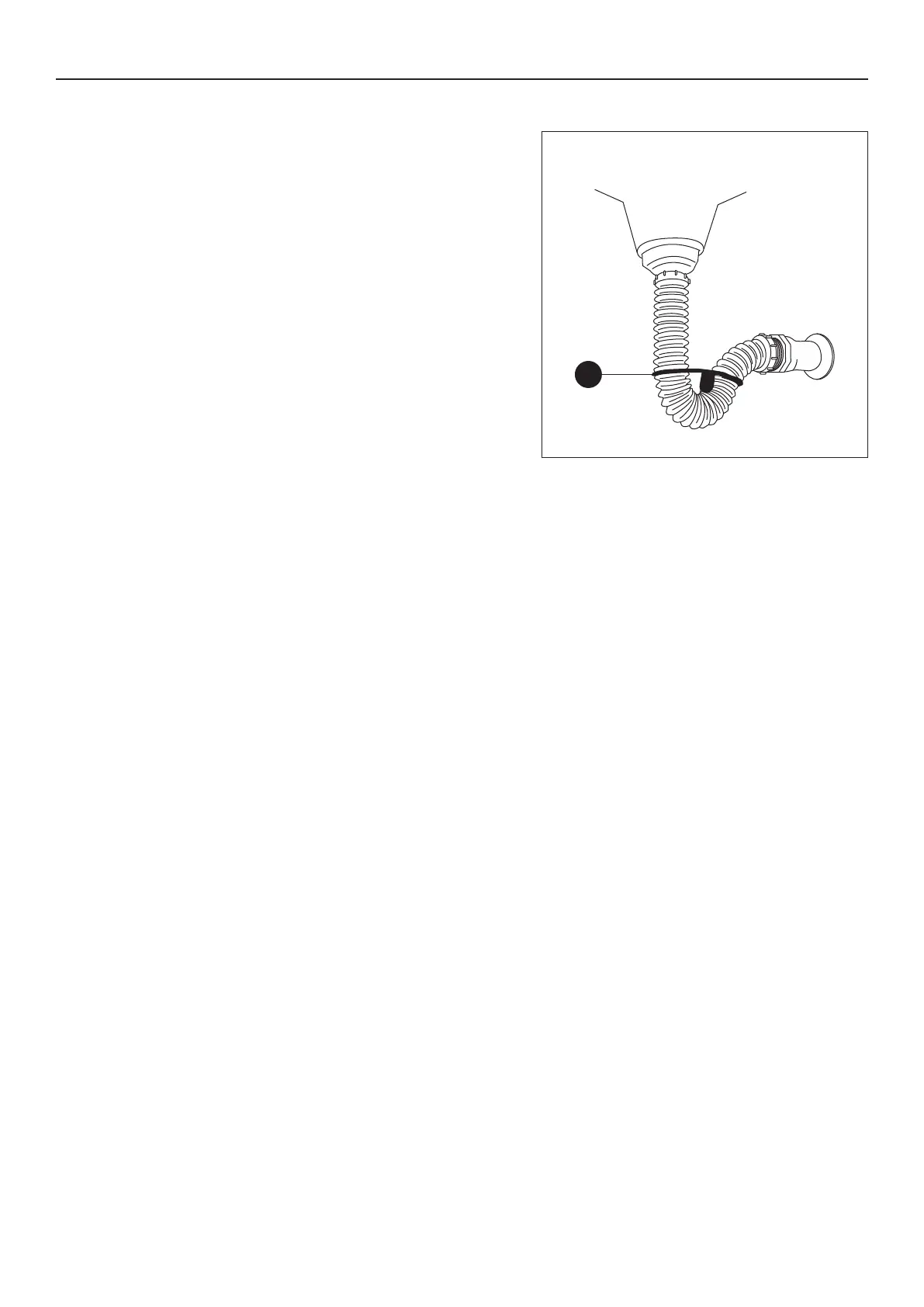

Connect the drain tube trap loop (L). See the
image for loop placement to ensure a proper trap.
*LOOP LEVEL: Level with bottom of waste
to create 2-4” water P-trap.
12.
13.
14.
L
