Project Source F201E514CP - Repair Instructions

10
4
2
2
2
1
2
1
1
2
2
2

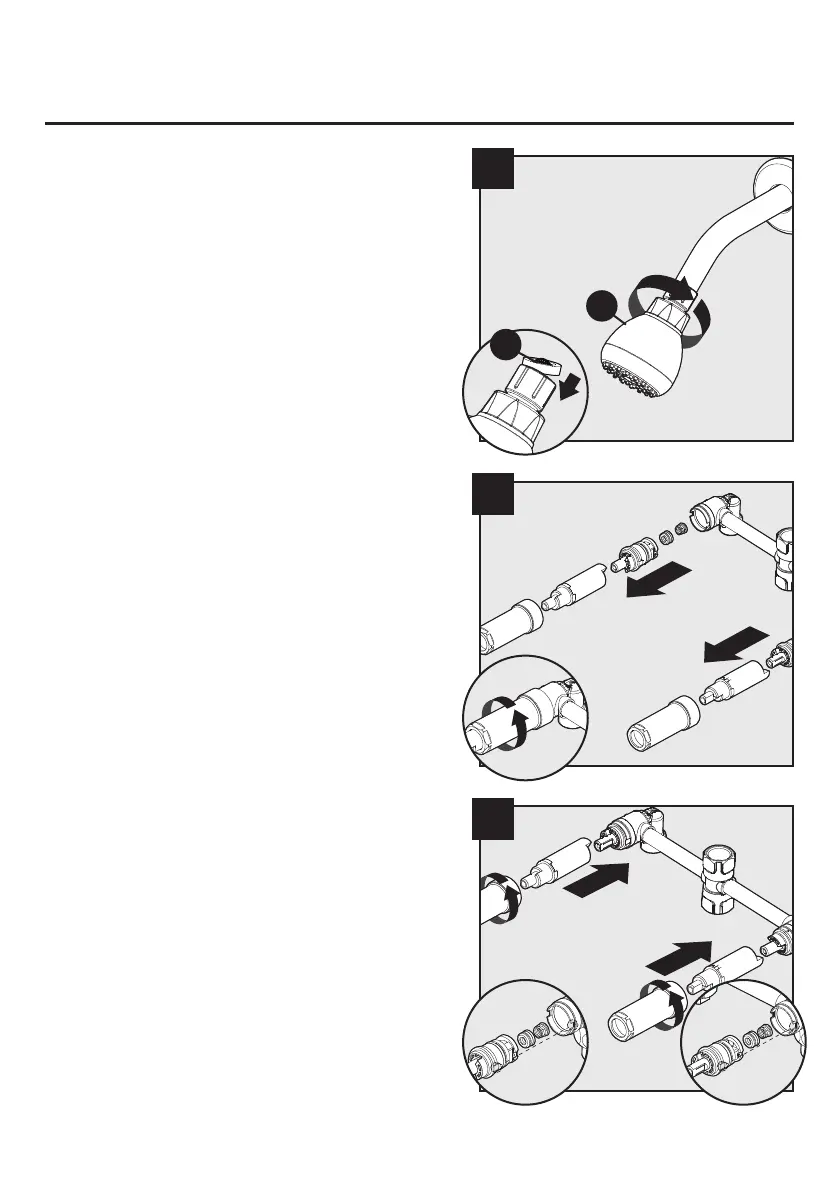

REPAIR INSTRUCTIONS
4. Reinstall the screen washer (I) and shower head
(C). Hand tighten shower head.
4
C
1
4a
I
IN CASE OF FAUCET CONTINUALLY DRIPPING
To order a replacement shower cartridge repair kit, call
our customer service department at 1-866-389-8827,
8 a.m. - 8 p.m., EST, Monday - Sunday.
1. Locate and shut off main water supply in your
house. Turn on the shower valve to drain the
remaining water in the shower valve. Remove the
sleeve, stem extension, cartridge, rubber seat and
spring.
2. Install the replacement spring, rubber seat,
cartridge, stem extension and sleeve.
Warning:
The larger end of the spring should be facing
the valve body.
Insert the two cartridge lugs back to back.
1
2
1
1a
2b
2a
Hot Cold
