Installing the Miter Guide

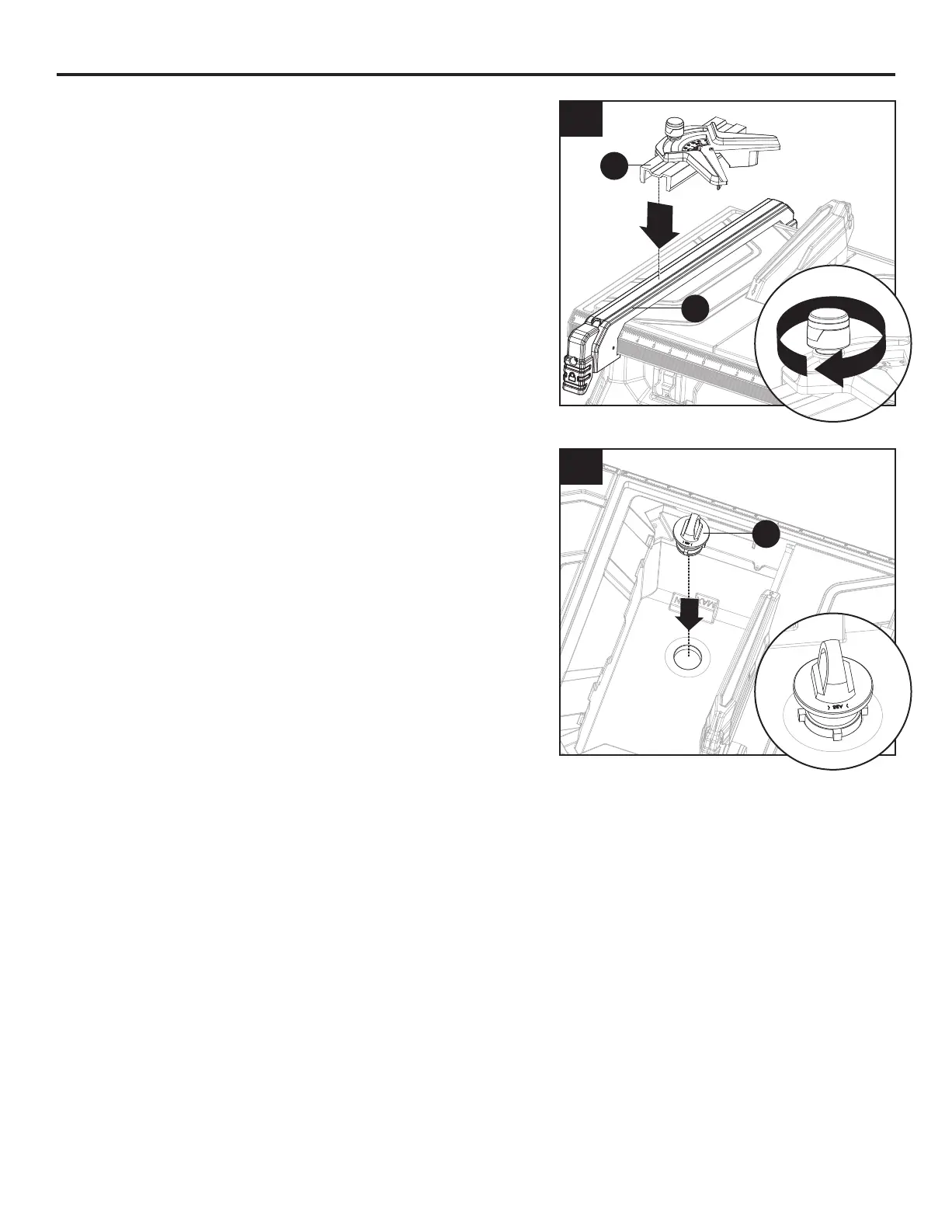

1. Place slot on underside of the miter guide (B) on the
rip guide (E).
Adjust to desired angle using angle scale and tighten
securely with miter guide knob.
With rip guide at desired width, secure in place.
NOTE: The miter guide can only be used when the rip
guide is installed.
Installing the Overflow Drain
1. Remove bevel table.
Firmly push overflow drain (L) into hole in the bottom
of the water reservoir.
