5.2.3 Alphabet Explanation
CHARACTER
ALPHABET
A B C D E F G H I J K L M N O P Q R S T U V W X Y

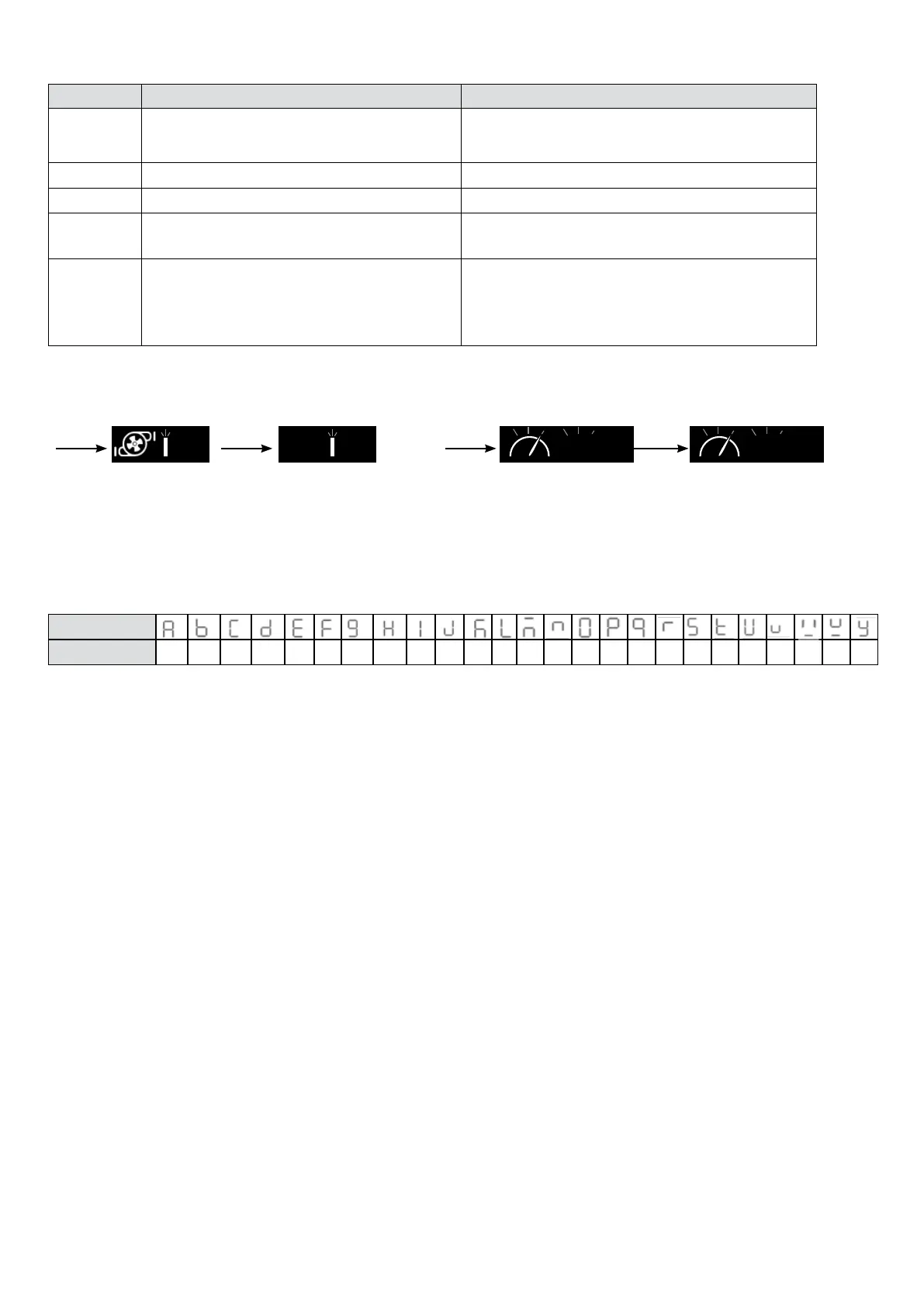

Figure 24 Switch ON /OFF Pump Figure 25 Switch ON /OFF all of the DC Loads
Table 9 Switch Explanation
5.2.2 LCD Monitor Switch Explanation
SWITCH FUNCTION DESCRIPTION
HWS To switch on/off Hot Water Service HWS on: HWS off
(Appears in top left of screen for 10 seconds)
PUMP To switch on/off pump Refer Figure 24
PWR To switch off all the loads connected on DC charger Refer Figure 25
DIM To adjust the brightness and switch off the
backlight of he monitor
Total three levels of brightness
DIM Hold
(5 sec)
To set clock, battery battery tank quantity etc Hold down the ‘LIGHT’ button until the Date zone
(Table 16) shows the setting code. It means the unit
enters the setting mode. For the full details of setting
codes, please refer to Chapter 6.2.1
PUMP PUMP PWR PWR
Load Load
OFF
ON
Table 10 Alphabet code
