5
MOUNTING INSTRUCTIONS
Pro-Charge chargers are designed for indoor, out of weather use only. Ensure that both
charger and battery are in a well-ventilated space during charging.

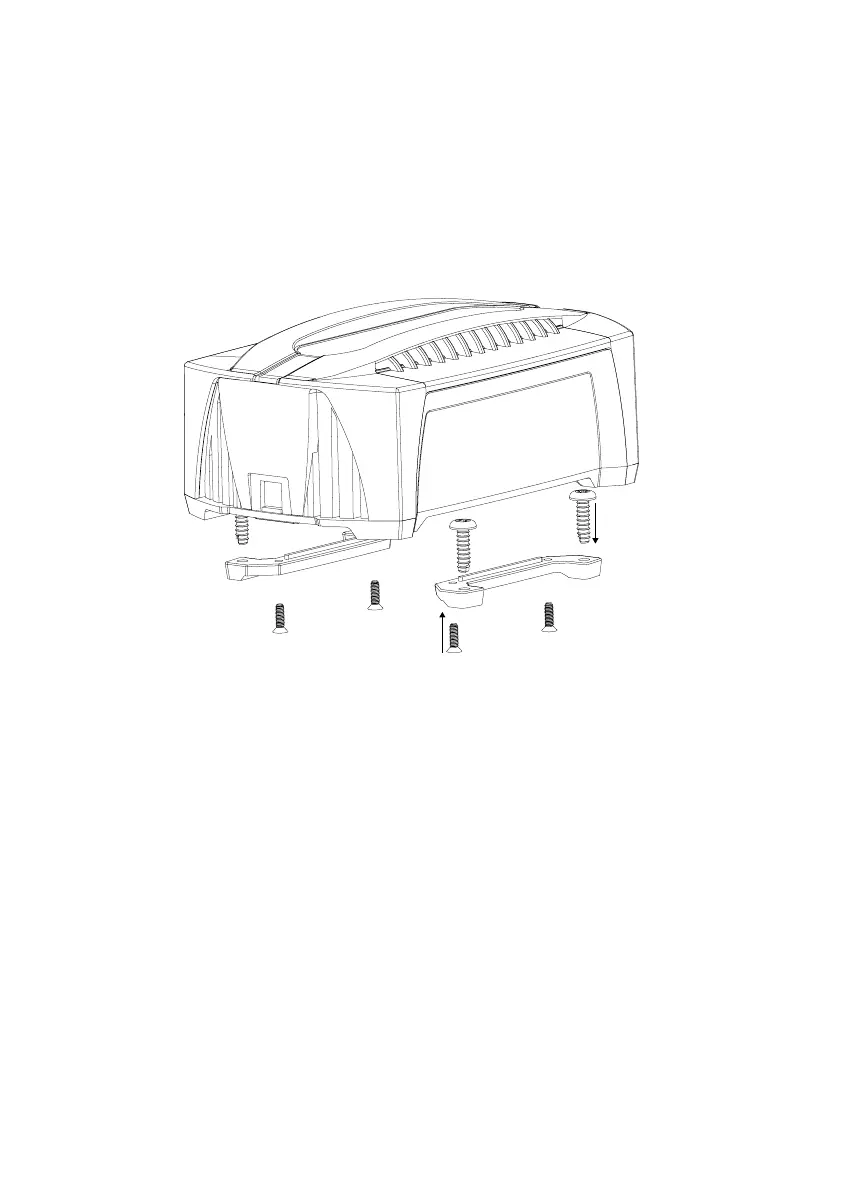

The battery charger includes optional side wings for easy mounting. If permanently
fixed, attach side wings to the base of the charger using the supplied screws as
illustrated
1
. The charger should then be mounted to a suitable horizontal or vertical
panel
2
with at least 10cm clearance around the charger to provide adequate ventilation
for the cooling vents.
CONTROLS
The battery charger’s interface allows you to control the charge rates and charge modes
to best suit your battery. The functions of the buttons are explained below:
1. BATTERY TYPE: Set the charge mode (Normal, Calcium, Rejuvenation)
2. CHARGE RATE: Set the charge rate to suit the size of the battery
1
2
