Projectiondesign F22 - Page 33

34
english
S-Video
4 PIN MINI DIN
FEMALE
1 GND
2 GND
3 Luma
4 Chroma
C-Video
PHONO/RCA
FEMALE
STEM YELLOW:
Composite
SHIELD: GND
G/Y
PHONO/RCA
FEMALE
STEM GREEN: G/Y
SHIELD: GND
B/Pb
PHONO/RCA
FEMALE
STEM BLUE: B/Pb
SHIELD: GND
R/Pr
PHONO/RCA
FEMALE
STEM RED: R/Pr
SHIELD: GND
Computer DVI
DVI-D
1 TMDS Data 2-
2 TMDS Data 2+
3 TMDS Data 2/4 Shield
4 Not used
5 Not used
6 DDC Clock
7 DDC Data
8NC
9 TMDS Data 1-
10 TMDS Data 1+
11 TMDS Data 1/3 Shield
12 Not used
13 Not used
14 +5V Power
Computer VGA 1
15 HIGH DENSITY
DSUB FEMALE
1 Analog R in
2 Analog G in
3 Analog B in
4 AGND
5 AGND
6 Analog R GND in
7 Analog G GND in
8 Analog B GND in
9 Reserved
10 Sync GND in
11 AGND
12 DDC/SDA
13 H Sync in
14 V Sync in
15 DDC/SCL
Monitor VGA
15 HIGH DENSITY
DSUB FEMALE
1 Analog R in
2 Analog G in
3 Analog B in
4 NC
5 AGND
6 Analog R GND in
7 Analog G GND in
8 Analog B GND in
9 Reserved
10 Sync GND in
11 NC
12 NC
13 H Sync in
14 V Sync in
15 NC
BNC H - C
BNC MALE
STEM:
Horizontal/
Composite
sync.
SHIELD: GND
BNC R
BNC MALE
STEM: RED
SHIELD: GND
RS-232 in
9 PIN DSUB
FEMALE
1NC
2 RXD
3 TXD
4NC
5 GND
6NC
7NC
8NC
RS-232 out
9 PIN DSUB
MALE
1NC
2 TXD
3 RXD
4NC
5 GND
6NC
7NC
8NC
RC in
3,5mm stereo
mini jack
TIP: 5V DC
RING: SIGNAL
STEM: GND
Screen
3.5mm
mini jack
TIP: 12V DC
60mA max
STEM: GND
Aspect
3.5mm
mini jack
TIP: 12V DC
80mA max
STEM: GND
LAN
1 TX+
2 TX-
3 RX+
4 GND
5 GND
6 RX-
7 GND
8 GND
USB
DIGITAL
USB
1VCC
2 -Data
3 +Data
4 GND

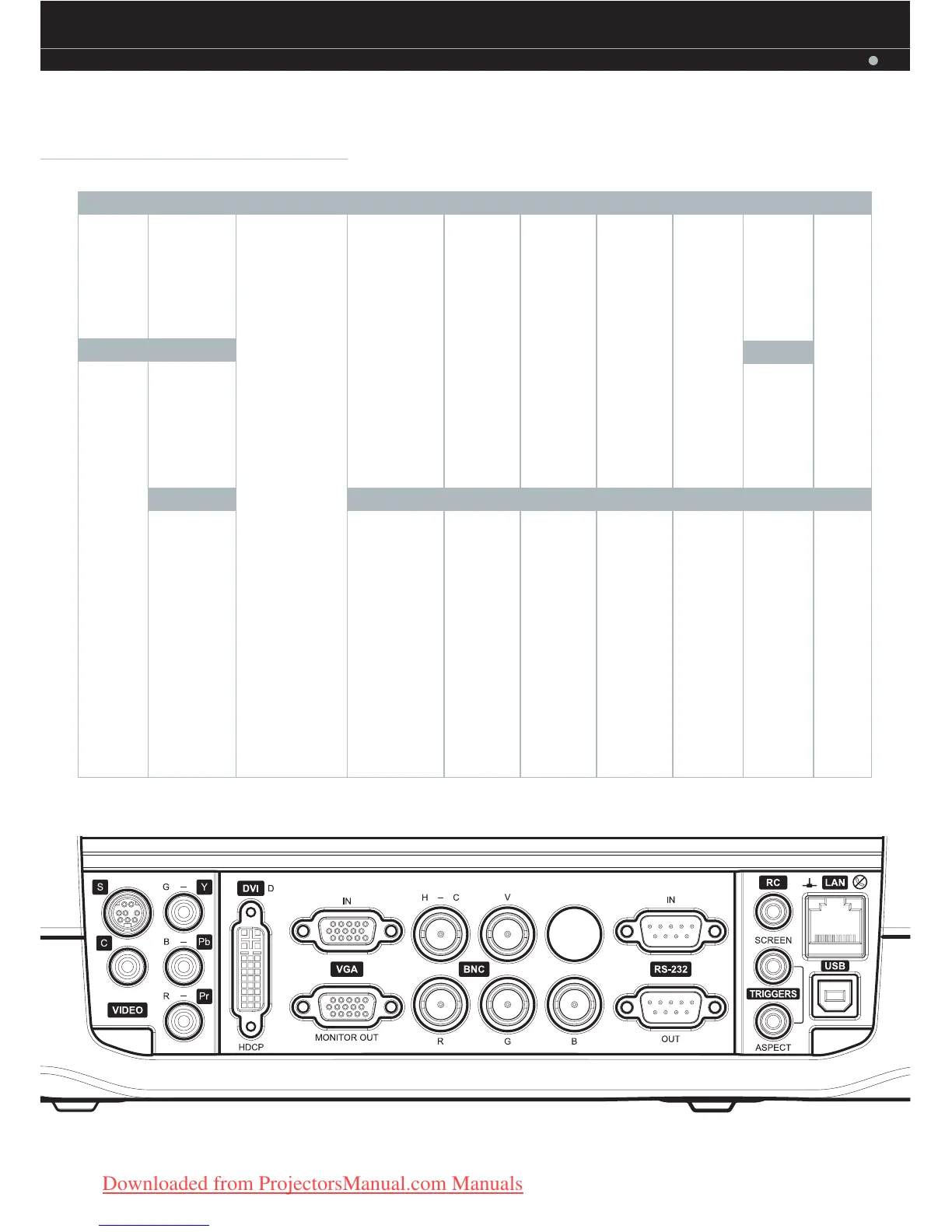

TECHNICAL DATA
CONNECTORS
BNC V
BNC MALE
STEM: Vertical
sync.
SHIELD: GND
BNC G
BNC MALE
STEM: GREEN
SHIELD: GND
BNC B
BNC MALE
STEM: BLUE
SHIELD: GND
