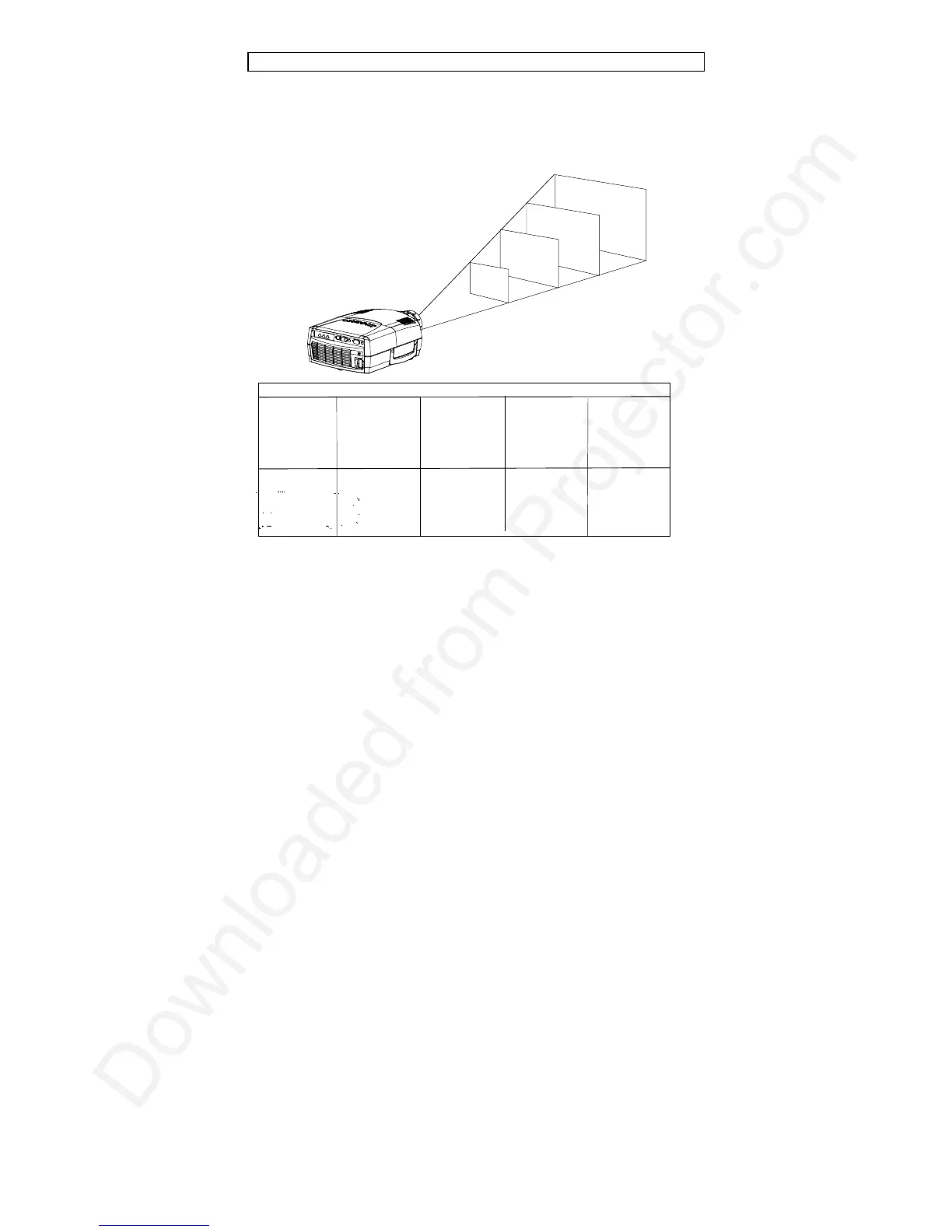

12.6 PROJECTION DISTANCES
The following table shows the combinations of projection distances and
screen sizes that are possible.
DIAGONAL
0.48m/ 19” 1.52m/ 60” 2.54m/ 100”
7.62m/ 300
”
WIDTH
0.39m/ 15” 1.22m/ 48” 2.00m/ 80” 6.10m/ 240”
HEIGHT
0.29m/ 11” 0.91m/ 36” 1.52m/ 60” 4.57m/ 180”
DISTANCE
1.00m/ 39” 3.10m/ 122” 5.30m/ 209”
15.60m/ 614
”
MINIMUM MAXIMUM
DISTANCE
1.00m/ 39” 3.20m/ 126” 5.60m/ 220” 12.00m/ 472”
DIAGONAL
0.63m/ 25”
2.00m/ 80”
3.56m/ 140” 7.62m/ 300”
WIDTH
0.51m/ 20” 1.63m/ 64” 2,84m/ 112” 6.10m/ 240”
HEIGHT
0.38m/ 15”
1.22m/ 48”
2.13m/ 84 ”
4.57m/ 180”
WIDE
TELE
Please consider the values given as nominal, with a variation of +/- 10%.
