OVEN OVERVIEW
• Never place the turntable upside down. The turntable should never be
restricted.
• Both turntable and rotating ring must always be used during cooking.
• All food and containers of food must always be placed on the turntable for
cooking.
• If turntable or rotating ring cracks or breaks, stop using your microwave oven
and contact a nearest authorised service centre.

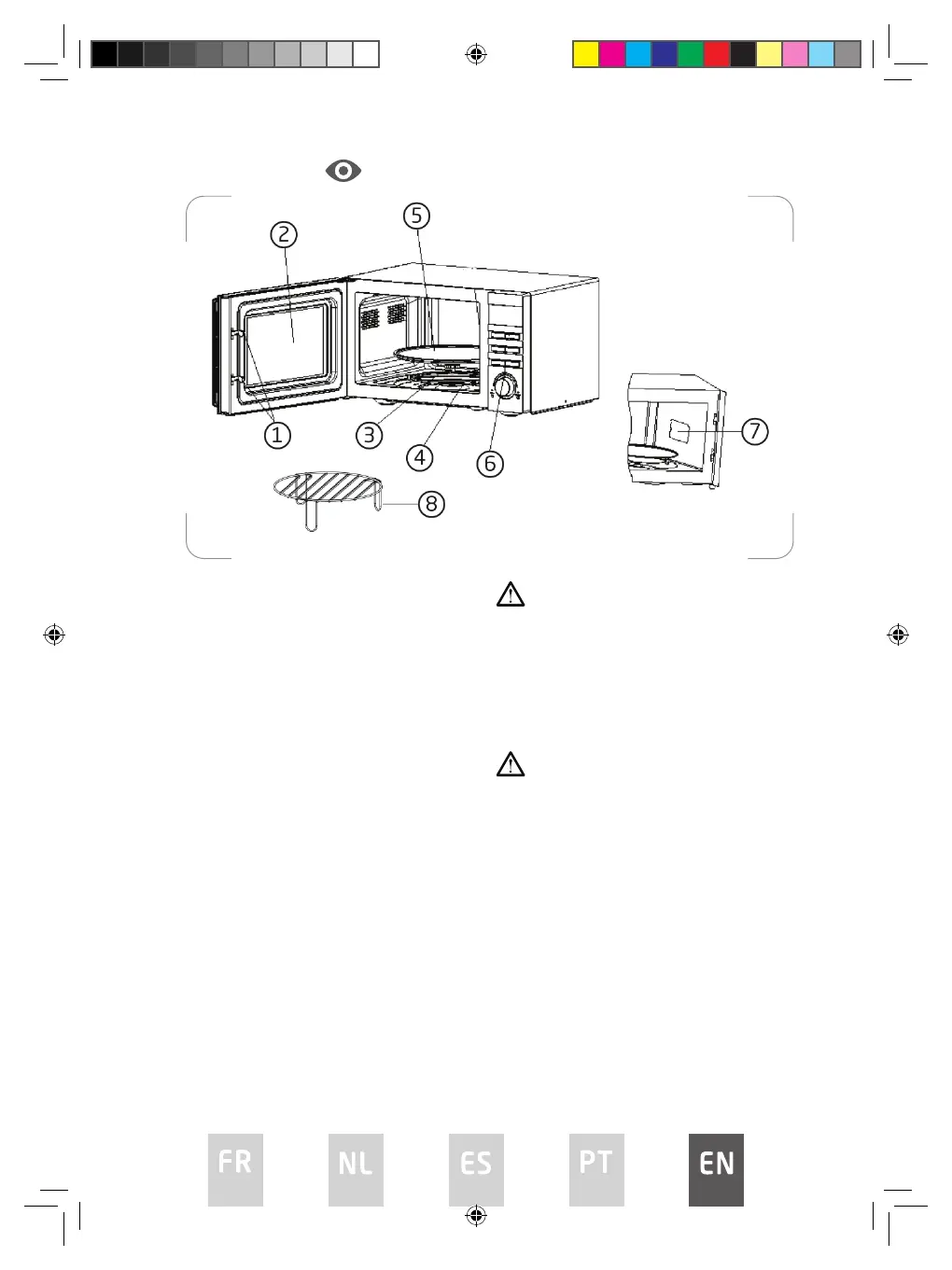

1. Door lock
Microwave oven door must be properly closed in order
for it to operate.
2. Viewing window
Allow user to see the cooking status.
3. Rotating axis
The glass turntable sits on the axis; the motor
underneath it drives the turntable to rotate.
4. Rotating ring
The glass turntable sits on its wheels; it supports the
turntable and helps it to balance when rotating.
5. Turntable
The food sits on the turntable, its rotation during
operation helps to cook food evenly.
CAUTION
• Place the rotating ring first.
• Fit the turntable onto the rotating axis and
make sure that it is geared in properly.
6. Control panel
See below in details.
7. Wave guide cover
It is inside the microwave oven, next to the wall of
control panel.
WARNING
Never remove the wave guide cover.
8. Grill rack
CB230 IB.indd 121CB230 IB.indd 121 26/7/2022 3:35 PM26/7/2022 3:35 PM
