Proline GR800 - Exhaust Hose Installation Details; Installing Exhaust Hose to Wall

8

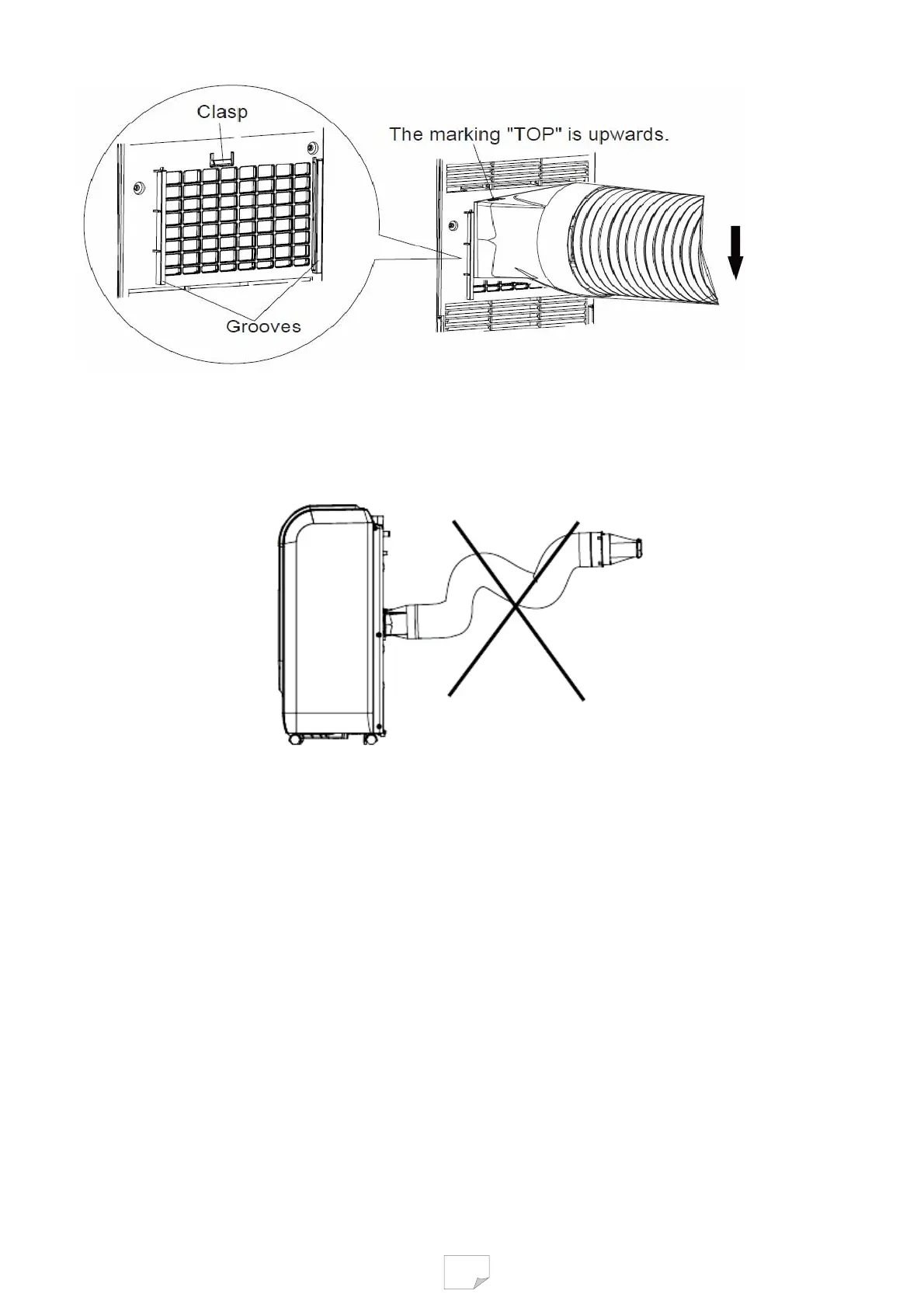

2. Inserttheexhaustconnectorintotheairoutletlocatedatthereartheapplianceuntilaclickisheard.

3. Extendthehoseandscrewtheexhaustadaptertothehoseconnector.
• NOTE:Thehosemaybeextendedbutformaximumefficiencyusetheshortestlength.
• IMPORTANT:DONOTBENDTHEHOSE.
• 

Installingexhausthoseintothewall

1. Placetheexhaustadapteragainstthewallandmarkit. 
2. Cutaholeinthewall,usingtheappropriatetoolsandsafetyequipment.
3. Placetheexhaustadapteragainstthewallandmarkthelocationforthefourholes.
4. Drillfourholesinthewallandinsertexpansionplugsintheholes. 
5. Fixtheexhaustadapteronthewallbyinsertingandtighteningfourscrews.
