Cautions
Figure (3)
5
eulb
wolley-neerg
N2 N1 L2 L1
yerg
nworb
kcalb
220-240V
220-240V
eulb
wolley-neerg
N L2 L1
yerg
nworb
kcalb
400V
220-240V
220-240V
PE
eulb
wolley-neerg
N L
yerg
nworb
kcalb
220-240V
PE
PE
connet to the main power supply
connet to the main power supply connet to the main power supply
220-240V 2+2N~
220-240V~
400V~ 2-N

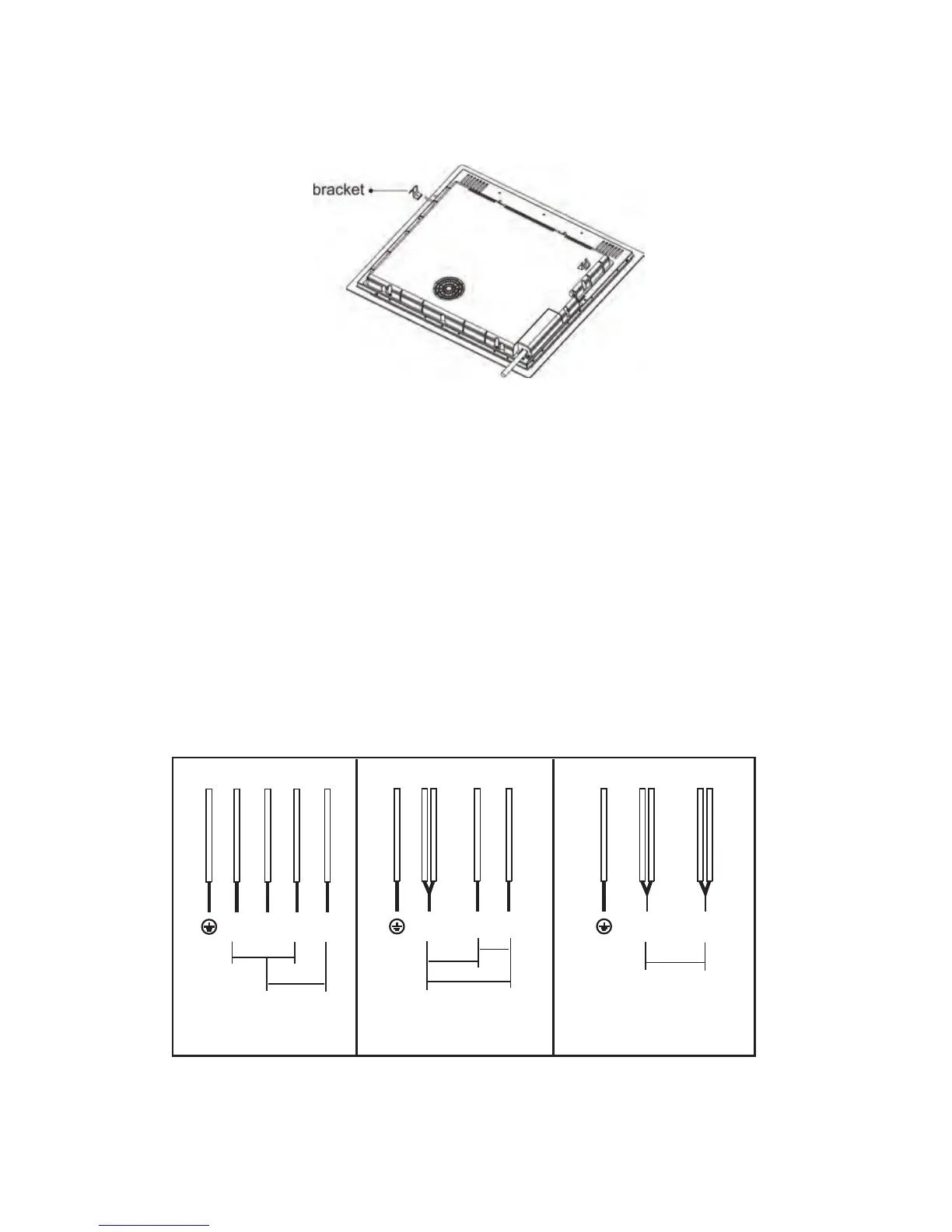

3. Fix the hob to the worktop using the four brackets on the base of the hob.
The position of the brackets can be adjusted according to the thickness
of the top.
1.The induction hob must be installed by a properly qualified person.
Never try to install the appliance yourself.
2.The induction hob must not be installed above refrigerators, freezers, dishwashers
or tumble dryers.Install the induction hob away from heat sources such as ovens
or direct sunlight.
3.The induction hob should be installed so that optimum radiation of heat is possible.
4.The wall and the area above the hob should be able to withstand heat.
5.To avoid any damage, the sandwich layer and adhesive should be heat-resistant.
Connection to power supply
The socket should be connected in compliance with the relevant standard, to
a dedicated omnipolar circuit breaker. 30A minimum supply
