Changing the reversible door
Reversing the door
Warning! When changing the way the door opens, the appliance must not be connected to the mains.
Remove the plug from the mains before working on the door.
1. Remove the two screws (6) and remove the worktop by raising the rear and pushing it forwards.
2. Remove the two screws (1) and remove the upper hinge (5) from the right side of the fridge.
3. Lift the door off the lower hinge pin and place in a safe location to avoid damaging it.
4. Remove the two screws (8) and remove the lower hinge with hinge pin (2), (9).
5. Unscrew the left front foot (4) and transfer to the right side.
6. Unscrew the hinge pin (9) from the lower hinge (2) and screw it into the other side. (reversed)
7. Repeat this with the foot, so both hinge pin and foot are on the same side of the lower hinge (2).
8. Screw the lower hinge (2) into place on the bottom left side with the two screws (8).
9. Slot the door onto the lower hinge pin and align with the door opening in its closed position.
10. Remove the blanking plug from the hole on the top left of the door and transfer to the right side.
11. Screw the upper hinge (5) into place with screws (1) on the top left side of the fridge.
12. Make sure the hinge pin on the top hinge locates in the hole in the top left of the door.
13. Make sure you have tightened all the screws securely.
14. Re-fit the worktop in reverse order of step 1.

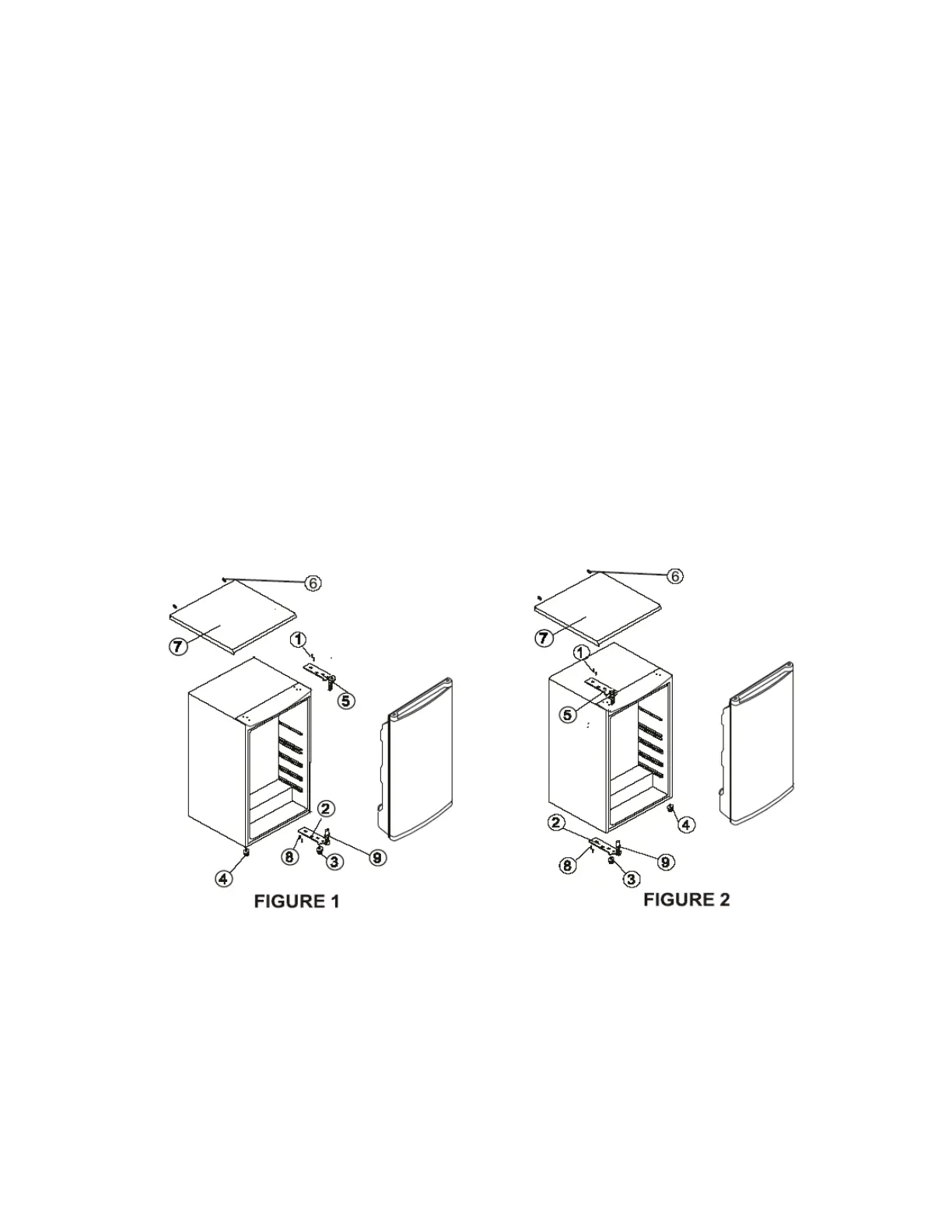

DIAGRAMS SHOW LEFT AND RIGHT MOUNTING OF THE DOOR
