PROLiNK IPS Series User Manual

8 12

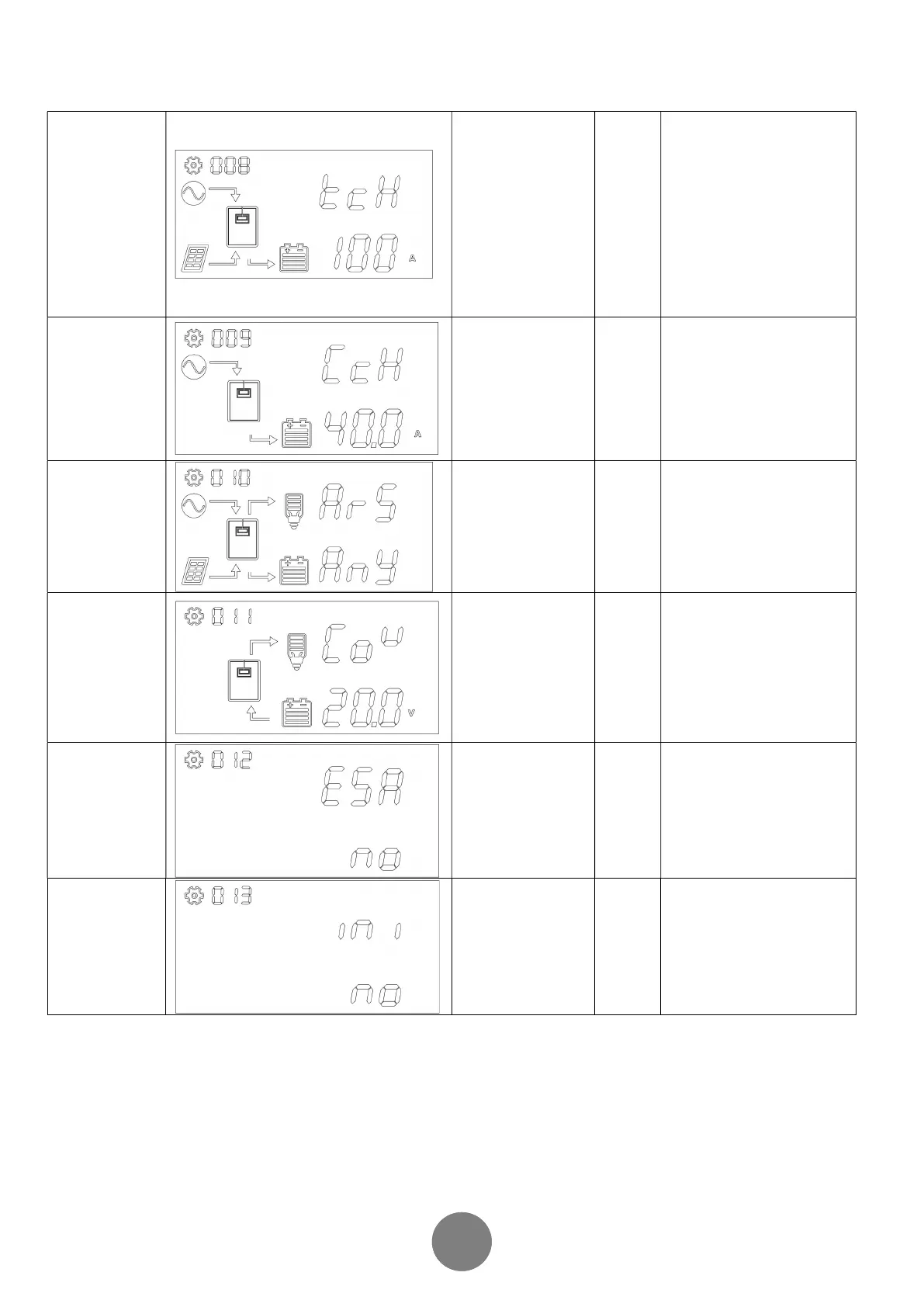

Max charging
current: To
configure total
charging current
for solar and utility
chargers:(Max
charging
current=utility
charging current +
solar charging
current)
10/20/30/40/50/60/70/
80/90 /100A
ESC
NA
Max. charging current=utility
charging current + solar
charging current
Maximum AC
charging current
10/20/30/40A
ESC
NA
If setting value in 008 is smaller
than that in 009, the inverter will
apply charging current from 008
for utility charger.
Auto restart
voltage
For 24V model:
Any/21.0/22.0/23.0/24.
0/25.0 /26.0/FUL .ESC
For 48V model:
Any/42.0/44.0/46.0/48.
0/50.0
/52.0/FUL .ESC
Any
Utility power come back after
inverter shut down at battery low
condition, the inverter will auto
restart if battery voltage is
charging up to setting point.
Battery shutdown
voltage setting
Available options in
3000VA model :
20.0/20.4/20.8/21.2/
21.6/22.0V .ESC
Available options in
5000VA model :
40.0/40.8/41.6/42.4/
43.2/44.0V .ESC
21.2V
for
3000VA
42.4V
for
5000VA
Setting range is from
20.0V to 22.0V for 24V model
and 40.0V to 44.0V for 48V
model. Low cut-off voltage will
be fixed to setting value no
matter what percentage of load
is connected.
Battery model
Energy-Saving
setting
No
Yes
No
User can set Energy-Saving
model in this program to reduce
the consumption in battery
mode.
Initialize
No
Yes
No
If necessary, user can restore
factory settings in this program.

PROLiNK IPS Series Specifications

General

Model	IPS Series
Category	Inverter
Input Voltage	12V / 24V / 48V DC
Output Waveform	Pure Sine Wave
Output Frequency	50Hz / 60Hz
Protection Features	Overload, Over Temperature, Short Circuit
Cooling	Fan
Operating Temperature	0°C to 40°C
