4 Proliphix Internet Managed Thermostat (IMT) Installation Guide
Part No. 600-03100-000, Rev. 4
Installing and Wiring the Thermostat

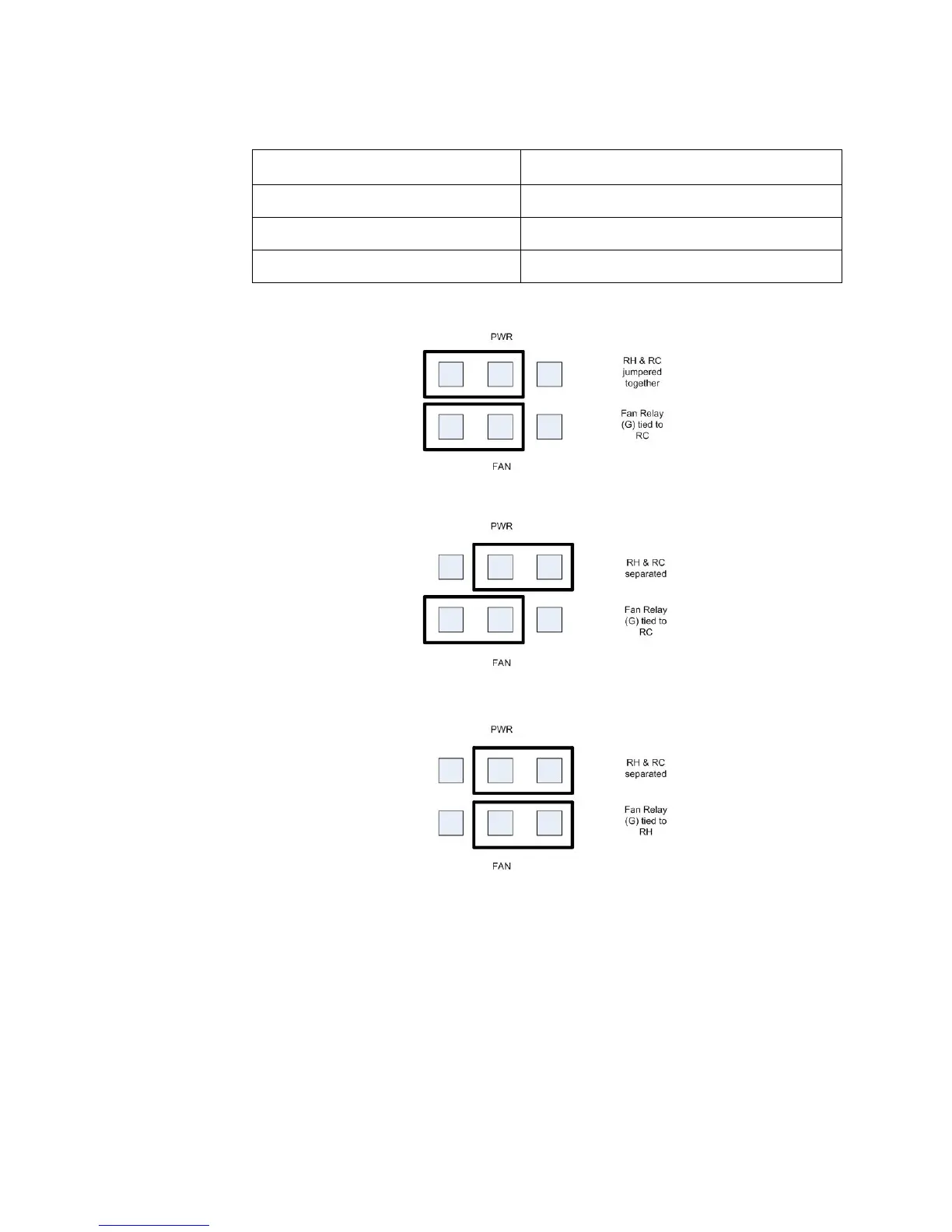

Figure 1 Jumper Configuration
Table 1 HVAC Power Configuration
HVAC Power Configuration Supplies...
RH only (default) or RC only W1, W2, Y1, Y2, G
RH and RC Supplies separate RH supplies W1, W2, G; RC supplies Y1 and Y2
RH and RC Supplies separate RH supplies W1 and W2; RC supplies Y1, Y2, G
