Installing and Wiring the Thermostat
Proliphix Thermostat Installation Guide, Release 1.0 9
Part No. 600-01000-100

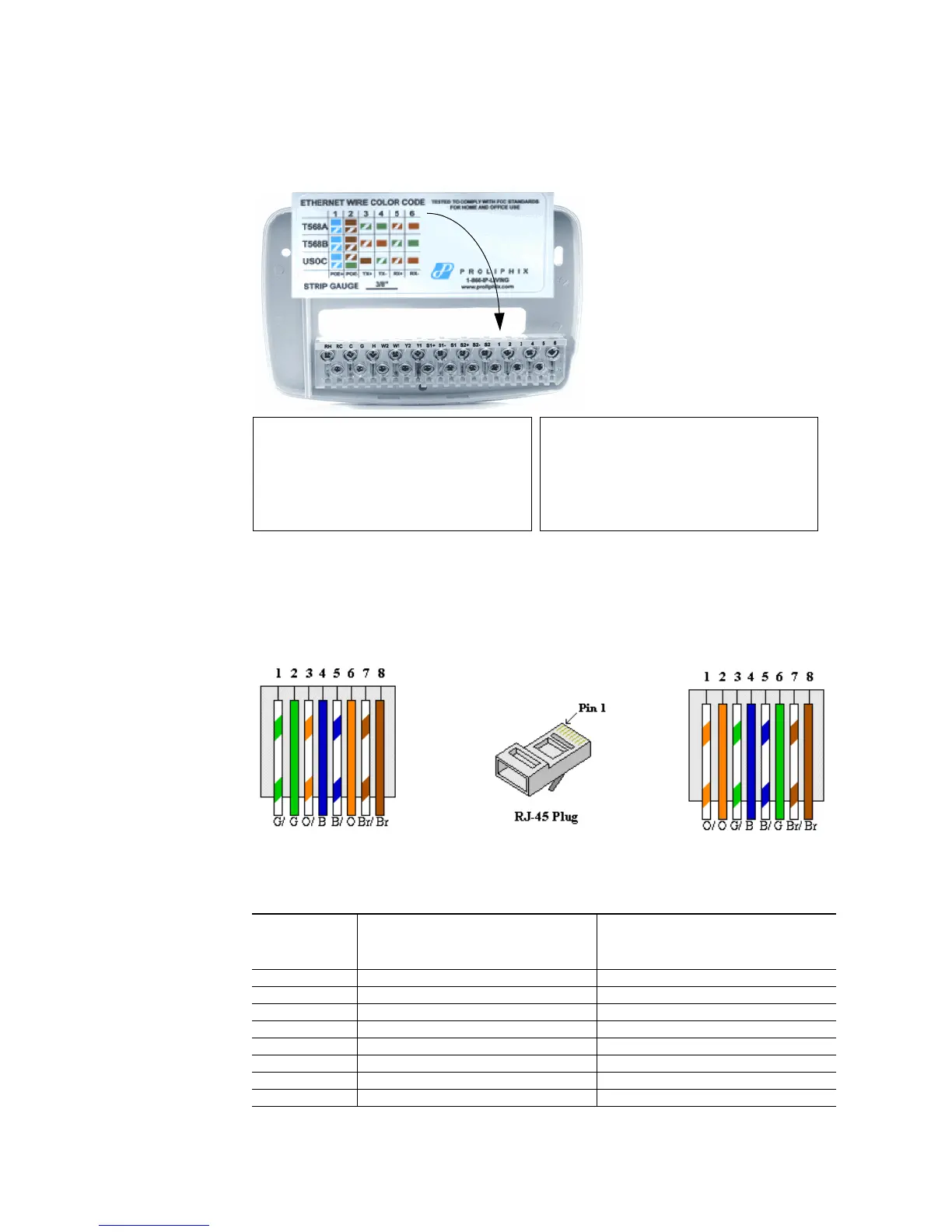

Figure 3 shows an Ethernet CAT 5 wiring example.
Figure 3 Ethernet CAT5/CAT5E/6 Wiring
Figure 4 shows the RJ-45 Ethernet plug pinout assignments for the T568A and T568B
wiring standards.
Figure 4 RJ-45 Ethernet Plug Pinout Assignments for T568A and T568B
Table 4 describes the pinout assignments for the T568A and T568B wiring standards.
Table 4 T568A and T568B Pinout Assignments
Pin Number T568A Wire Color T568B Wire Color
1 Green/White Orange/White
2 Green Orange
3 Orange/White Green/White
4 Blue Blue
5 Blue/White Blue/White
6 Orange Green
7 Brown/White Brown/White
8 Brown Brown
T568A
1 White-blue and blue ends stripped and twisted
2 White-brown and brown ends stripped and twisted
3 White-green
4 Green
5 White-orange
6 Orange
T568B
1 White-blue and blue ends stripped and twisted
2 White-brown and brown ends stripped and twisted
3White-orange
4 Orange
5White-green
6 Green
T568A T568B
