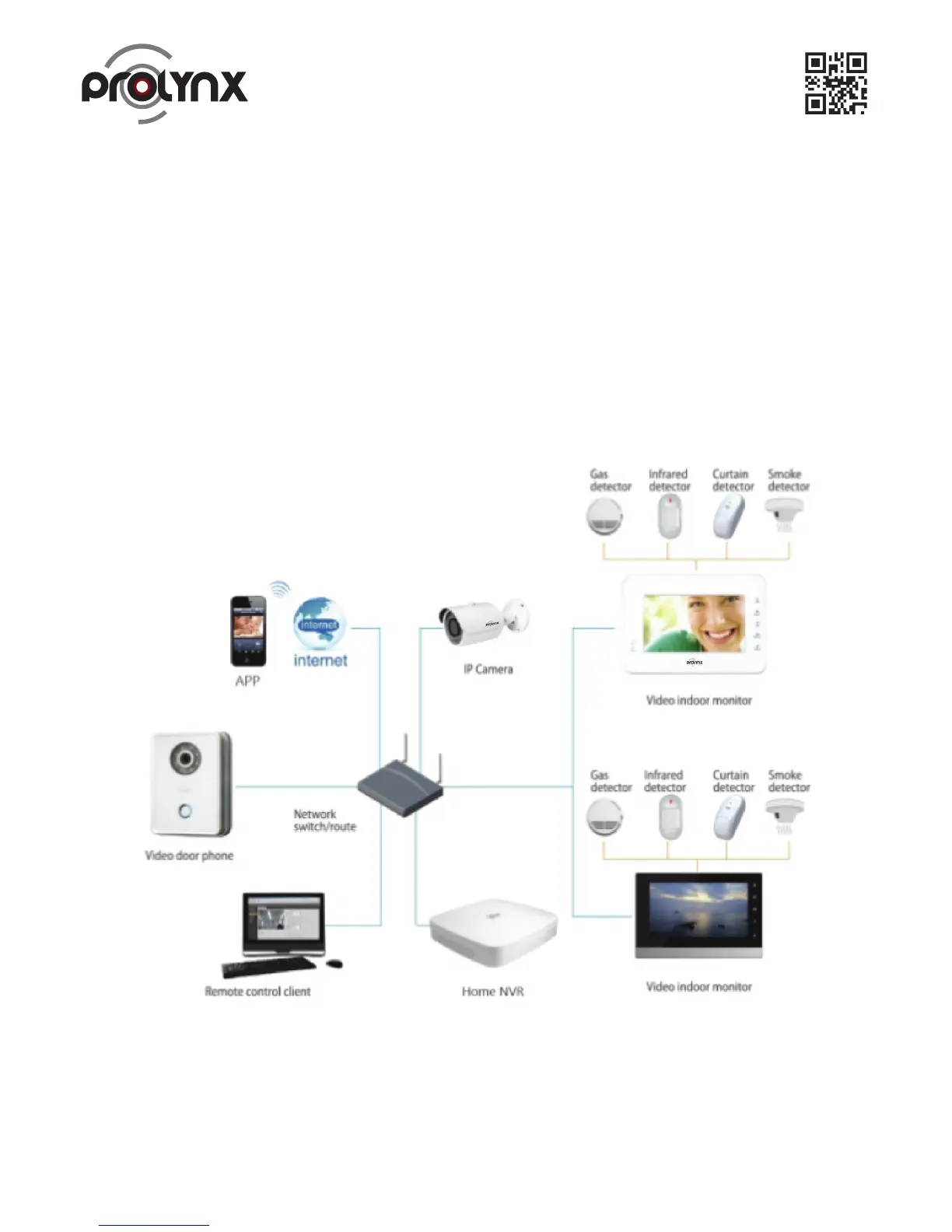

Figure 1- 1.
Note: All the installation and operations here should conform to your local electric safety rules.
When a visitor press call button on Outdoor Station, multiple Indoor Monitors will ring at the same
time. You can call, hang up, and unlock on any of these Indoor Monitors
1. Typical Connection
This mode is for 7”.
Indoor Monitor has one master Indoor Monitor and up to three extension Indoor Monitors. See
Figure 1 1.
1.1 IP Connection Mode 1
3
