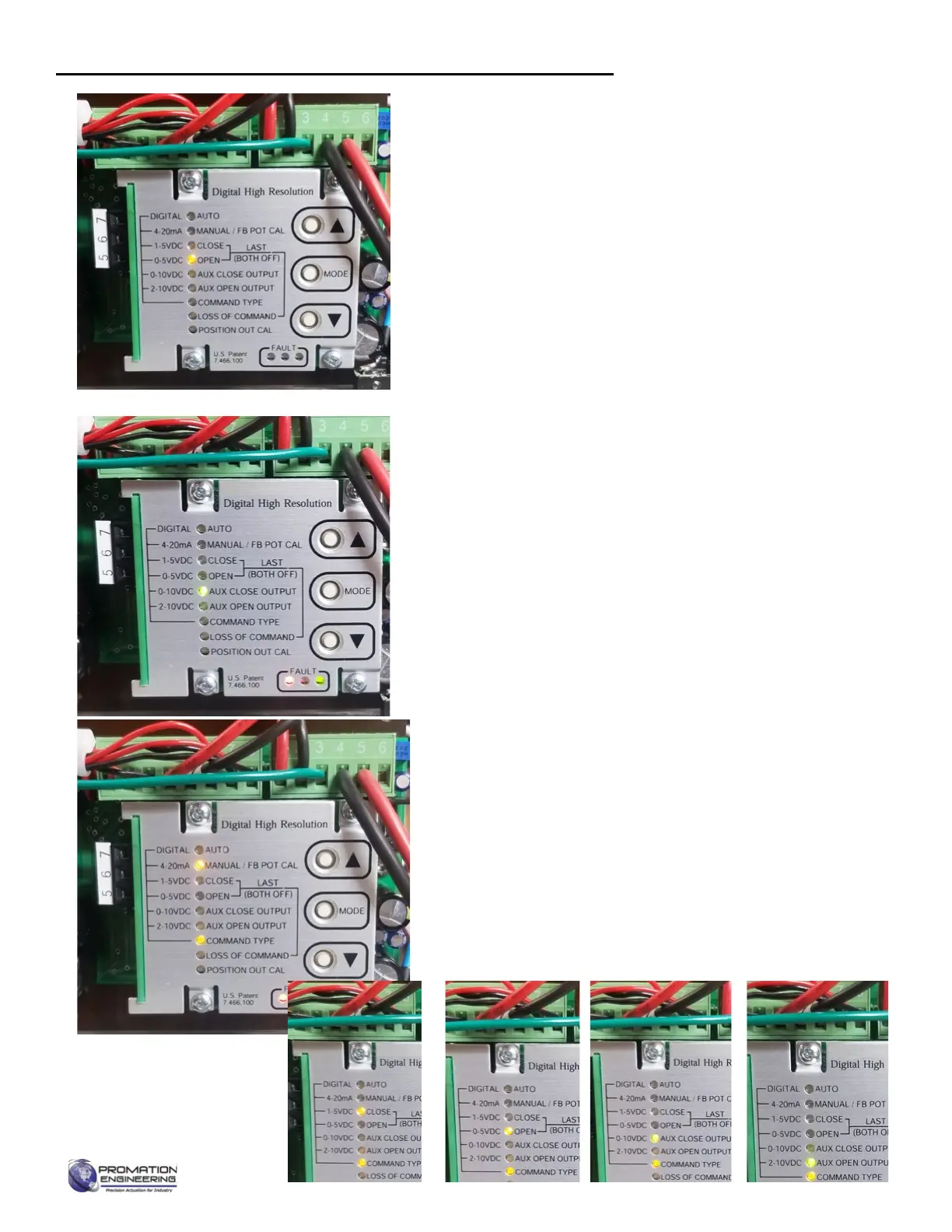

6. Set Open (CCW) Position (OPEN LED is lit)
6.A The motor will drive to approximately the 75% position.
6.B Use the handwheel or the ▲ and ▼ to position the
actuator in the desired OPEN position (i.e. 20 mA).
(Youmusttoucheither▲or▼beforethehandwheel
responds).
6.C Press MODE to conrm setting. This will also move
you to the next user input setting.
6.D This OPEN position is now set.
6.E If the AUX OPEN OUTPUT LED is lit, ignore it.
6.F AUX CLOSE OUTPUT is lit.
The motor may drive an arbitrary position.
7. Aux Close Output Settings (AUX CLOSE OUTPUT is lit)
7.A This feature requires an additional optional board.
7.B Press MODE to skip.
7.C AUX OPEN OUTPUT is lit.
The motor may drive an arbitrary position.
8. Aux Open Output Settings (AUX OPEN OUTPUT is lit)
8.A This feature requires an additional optional board.
8.B Press MODE to skip
8.C COMMAND TYPE LED is lit.
9. Set Input Signal (COMMAND TYPE LED is lit)
9.A Use▲and▼toselectthecommandsignaltypegoing
into the DHC-100 board from the column left of the
LEDs.
• 4-20mA (factory setting)
• 1-5VDC
• 0-5VDC
• 0-10VDC
9.B Press MODE to set Input Signal
