Proportional Control
Torque Switches (if equipped)
For units equipped with torque switches:
Torque switches provide mechanical
overload protection for both the actuated
device and the geartrain.
These are factory set and are not
adjustable without proper equipment.
Torque switches are set to limit actuator
torque to approximately 105% of the
actuator rated output.

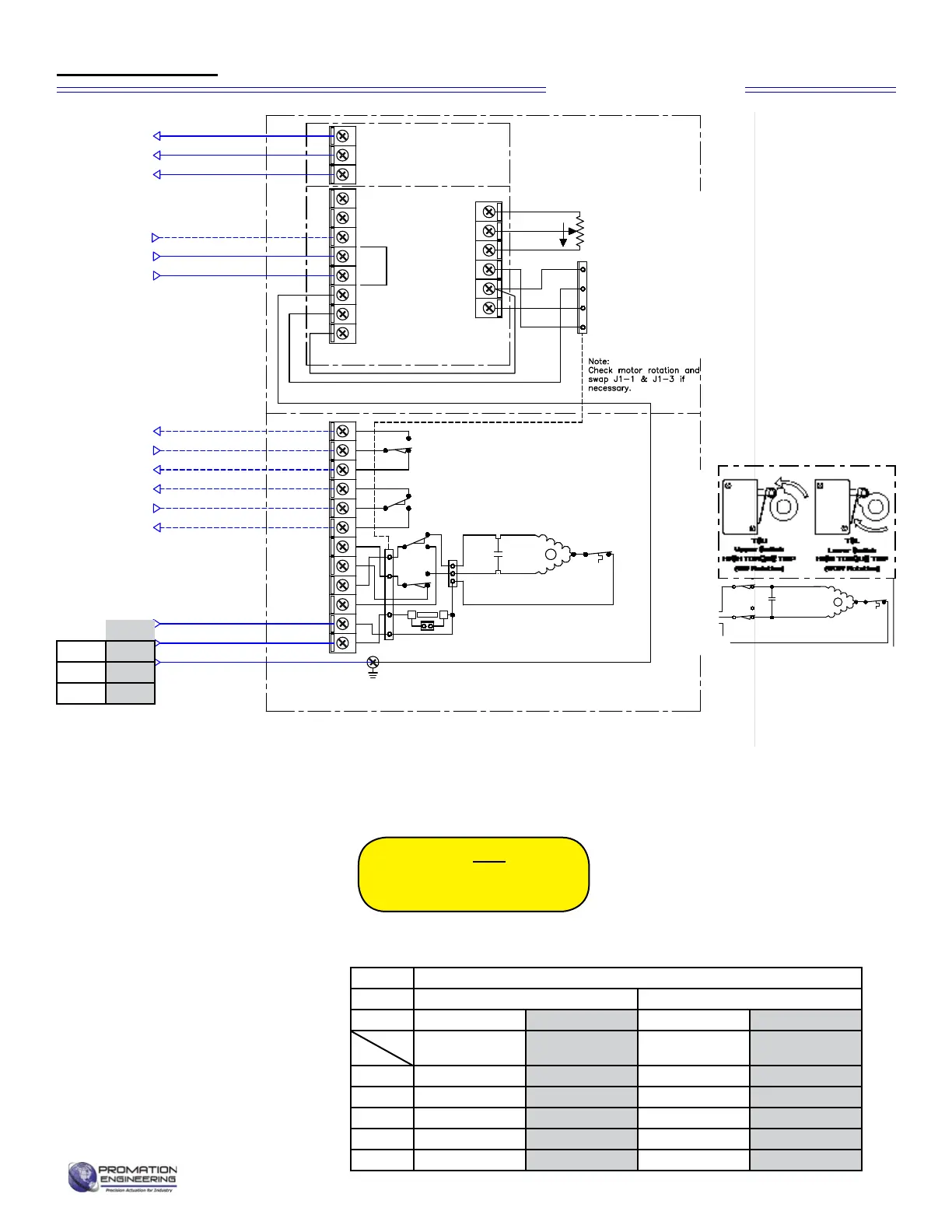

The wiring diagram above shows the
internal wiring connections between
the control board, the torque switches
and the motor. The upper torque switch
controls loading in the CW direction,
while the lower switch controls loading in
the CCW direction.
WARNING! Do NOT adjust the
torque switch cam settings.
This will VOID the warranty.
Wire sizing data is provided in the table to
assist in the selection of the proper wire size for
ProMation actuators using various wire sizes
over distance.
Please make sure to reference the correct
voltage and do not exceed the indicated length
of the wire run for each model.
This motor wiring shows
the wiring for the products
equipped with the optional
Torque Switch (-TS).
NOT OPEN*
OPEN COM*
OPEN*
NOT CLOSED*
CLOSED COM*
CLOSED*
12
11
10
9
8
7
M
SW3
SW4
THERMAL
SWITCH
AC DRIVE
MOTOR
AUXILIARY
SWITCH
(STANDARD)
AUXILIARY
SWITCH
(STANDARD)
* CONNECTIONS
OPTIONAL
GND Screw
P4/5/6-120DN4-ISOFB-TS
Actuator ships in fully closed position!
Items within dotted line indicates internal components
6
5
4
3
2
1
J1
HEATER
SW1
SW2
J2
E1
E2
J3
1
1 2 43
430-10100 Switch Card
RED
BLK
WHT
Capacitor
D
Use For:
WD-850-74902
Blu
Gry
TSU
Gry
Blu
TSL
5
4
3
2
1
ANALOG
ALL SWITCHES
SHOWN WITH
ACTUATOR IN
FULL OPEN
POSITION
Close
POSITION
FEEDBACK
1K ohm
J4
FACTORY
CONNECTOR
430-10102 Controller
GRY
ORG
BLU
J2
GND
L1 Hot
L2 Neutral
DHC-100
+
-
ANALOG
OTX-101
1
2
3
4
5
J1
6
4 3 12
SIGNAL IN
FEEDBACK OUT
(-)
+4-20mA
(-)
+4-20mA
WHT
BLK
BLU
RED
8 (+15v OUT)
7
6
GRN
WHT18
WHT18
(+) 1-5, 0-5, 0-10vdc
ALTERNATE SIGNAL IN
NOT OPEN*
OPEN COM*
OPEN*
NOT CLOSED*
CLOSED COM*
CLOSED*
12
11
10
9
8
7
M
SW3
SW4
THERMAL
SWITCH
AC DRIVE
MOTOR
AUXILIARY
SWITCH
(STANDARD)
AUXILIARY
SWITCH
(STANDARD)
* CONNECTIONS
OPTIONAL
GND Screw
P(2-13) 120PN4(7)-HR
Actuator ships in fully closed position!
Items within dotted line indicates internal components
6
5
4
3
2
1
J1
HEATER
SW1
SW2
J2
E1
E2
J3
1
12 43
430-10100 Switch Card
BLK
RED
WHT
BLK
WHT
Capacitor
ProMation
F
NONE
Use For:
WD-850-P4222 F
5
4
3
2
1
ANALOG
ALL SWITCHES
SHOWN WITH
ACTUATOR IN
FULL OPEN
POSITION
Close
POSITION
FEEDBACK
1K ohm
J4
FACTORY
CONNECTOR
430-10102 Controller
GRY
ORG
BLU
J2
GND
L1 Hot
L2 Neutral
DHC-100
OTX-100
1
2
3
4
5
J1
6
4 3 12
SIGNAL IN
FEEDBACK OUT
(-)
+4-20mA
GND(-)
Amperage Out +4-20mA
WHT
BLK
BLU
RED
8 (+15v OUT)
7
6
GRN
WHT18
(+) 1-5, 0-5, 0-10vdc
ALTERNATE SIGNAL IN
5
7
6
Voltage Out
Field wiring and
devices by others
120VAC 230VAC
Neu L2
Hot L1
GND GND
Page 4 of 18 P2-13 HV Proportion HR (-TS) Series
P7/8 SD
Actuator Speci cations
P7 P8
Torque “lb/Nm 8900”lbs/1000Nm 13250”lbs/1500Nm
Supply Voltage 120vac 230vac 120vac 230vac
Max Inrush Current 8.5A 4.1A 9.0A 4.4A
Running Current 3.1A 1.4A 3.3A 1.6A
Motor Split Phase Capacitor
Runtime (90°@60Hz) 46 sec 46 sec
Runtime (90
O
@50Hz) 55 sec 55 sec
Duty Cycle 25%, Proportional: Managed (75% maximum)
Motor Starts 1200 per hour
Weight 82lbs/37kg
Mechanical Connections ISO5211 F12 8pt 36mm
Electrical Entry (2) 3/4” NPT
Electrical Terminations 12-16ga
Environmental Rating NEMA 4/4X
Manual Override 11.6” Handwheel
Control On/O󰀨-Jog,Proportional
Actuator Case material Aluminum Alloy, Powder coated
Motor Protection
230°F/110°C Thermal F* Class
*Totally Enclosed Non-Ventilated Motors
Ambient Temperature
Operating Range
-22°F to +125°F
-30°C to +52°C
P7/8 HV PN4
Actuator Speci cations
P7 P8
Torque “lb/Nm 8900”lbs/1000Nm 13250”lbs/1500Nm
Supply Voltage 120vac 230vac 120vac 230vac
Max Inrush Current 8.5A 4.1A 9.0A 4.4A
Running Current 3.2A 1.6A 4.0A 2.0A
Motor Split Phase Capacitor
Runtime (90°@60Hz/vdc) 46 sec 46 sec
Runtime (90
O
@50Hz) 55 sec 55 sec
Duty Cycle Managed (75% maximum)
Motor Starts 1200 per hour
Weight 82lbs/37kg (87lbs/39.5kg w/ -TS)
Mechanical Connections
ISO F12 36mm / Imp 5/6.5 in BHC 1.375 in Shaft
Electrical Entry (2) ISO ¾” / Imp ½” NPT
Electrical Terminations 12-16ga
Environmental Rating NEMA 4/4X/IP67
Manual Override 11.6” Handwheel
Control Proportional
Actuator Case Material Aluminum Alloy, Powder coated
Motor Protection
230°F/110°C Thermal F* Class
*Totally Enclosed Non-Ventilated Motors
Ambient Temperature
Operating Range
-22°F to +125°F
-30°C to +52°C
MAX distance between Actuator and Supply (feet)
Actuator
P7 P8
Voltage
120VAC 230VAC 120VAC 230VAC
8.5A 4.1A 9.0A 4.4A
16
- 607 - 566
14
247 981 233 914
12
377 1500 357 1398
10
642 2550 606 2376
8
958 3806 905 3546
Wire
Gage
Amps
Wire Sizing Chart
P78
Wiring Diagram
