작업 8: 다른 PC 네트워크 드라이브 설치
355
액세스 거부됨 - 보기만 가능 , 없음
읽기 전용
읽기 쓰기 - 기본 설정

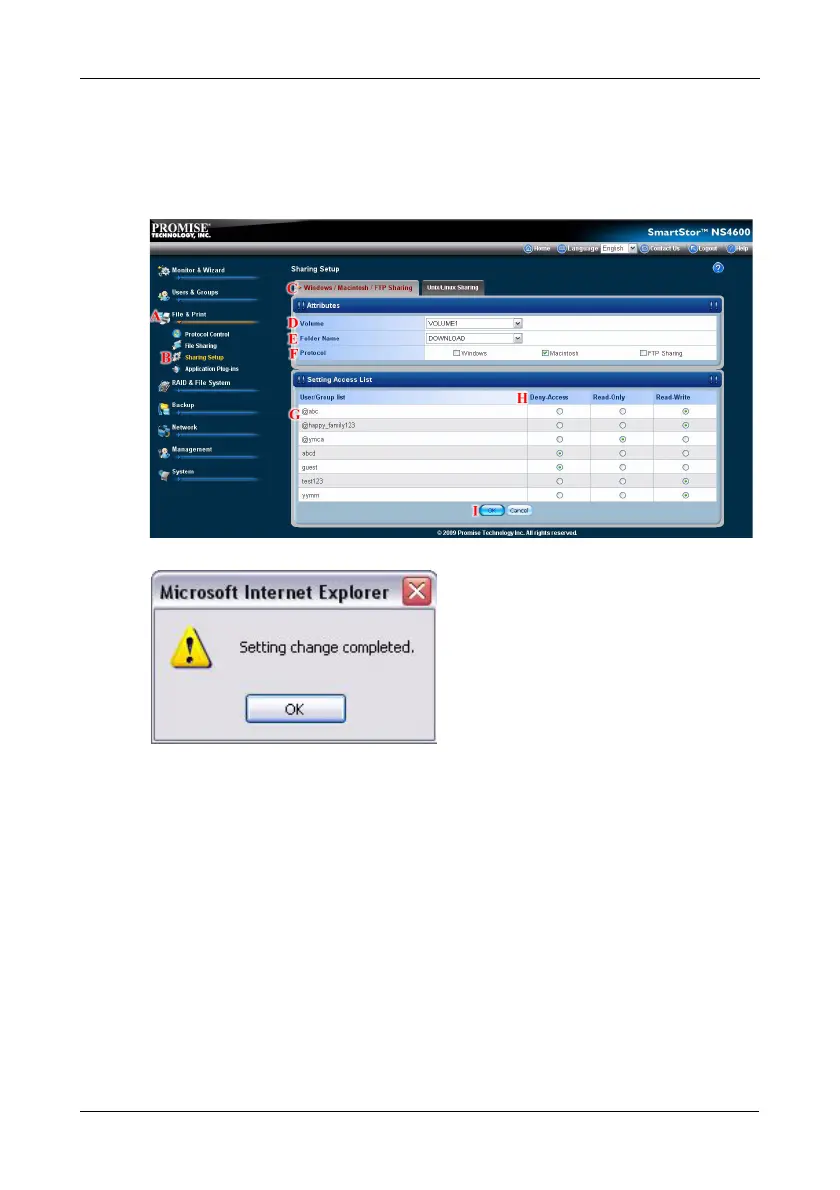

8. OK ( 확인 ) 버튼을 클릭하여 설정을 저장합니다 . (I)
9. 확인 상자에서 OK ( 확인 ) 버튼을 클릭합니다 .
이제 Mac 에서 지정된 폴더에 액세스할 있습니다 .
Mac 파일 공유로 Mac SmartStor 폴더에 액세스할 있습니다 . 경우
, 공용 폴더에 액세스가 주어집니다 .
클라이언트 사용자 용
Mac 데스크톱에서
1. 이동 메뉴에서 ,
서버에
연결
선택합니다 .
2. 서버에 연결 대화 상자에서 , afp:// SmartStor NAS IP 입력하고 Connect
( 연결 ) 버튼을 클릭합니다 .
위에 표시된 IP 주소는 단지 예일 뿐입니다 .
+ 버튼을 클릭하여 IP 주소를 즐겨찾는 서버 리스트에 추가합니다 .

Other manuals for Promise Technology Smartstor NS4600

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Promise Technology Smartstor NS4600 and is the answer not in the manual?

Promise Technology Smartstor NS4600 Specifications

General IconGeneral
RAID levels0, 1, 5, 10
Storage drive size3.5 \
Hot-swap drive baysYes
Storage drive capacity0 GB
Supported file systemsEXT3, FAT32
Storage drive interfaceSerial ATA II
Total installed storage capacity0 TB
Number of storage drives installed4
Internal memory0.25 GB
Processor model-
Processor frequency0.6 GHz
Maximum data transfer rate1000 Mbit/s
Supported network protocolsFTP, DHCP, NTP
Compliance industry standardsIEEE 802.3i, IEEE 802.3ab, IEEE 802.3u
CertificationRoHS, CE, FCC, UL, TUV
Data transfer rate3 Gbit/s
Dimensions (WxDxH)152.5 x 229.6 x 188.2 mm
Power requirements100 - 230 V/50-60 Hz
Networking featuresGigabit Ethernet
Compatible operating systemsWindows 2000/XP/2003/Vista Mac x 10.4 + Linux
USB 2.0 ports quantity2
Ethernet LAN (RJ-45) ports1
Power supply unit (PSU) capacity90 W
Operating temperature (T-T)5 - 35 °C
Operating relative humidity (H-H)10 - 85 %
Weight and Dimensions IconWeight and Dimensions
Weight2500 g
