VTrak J610s, J310s Quick Start Guide
14
Step 4: Setting Up Data Cable Connections
The VTrak J610s or J310s unit provides Direct Attached Storage (DAS) support
to the Host PC.

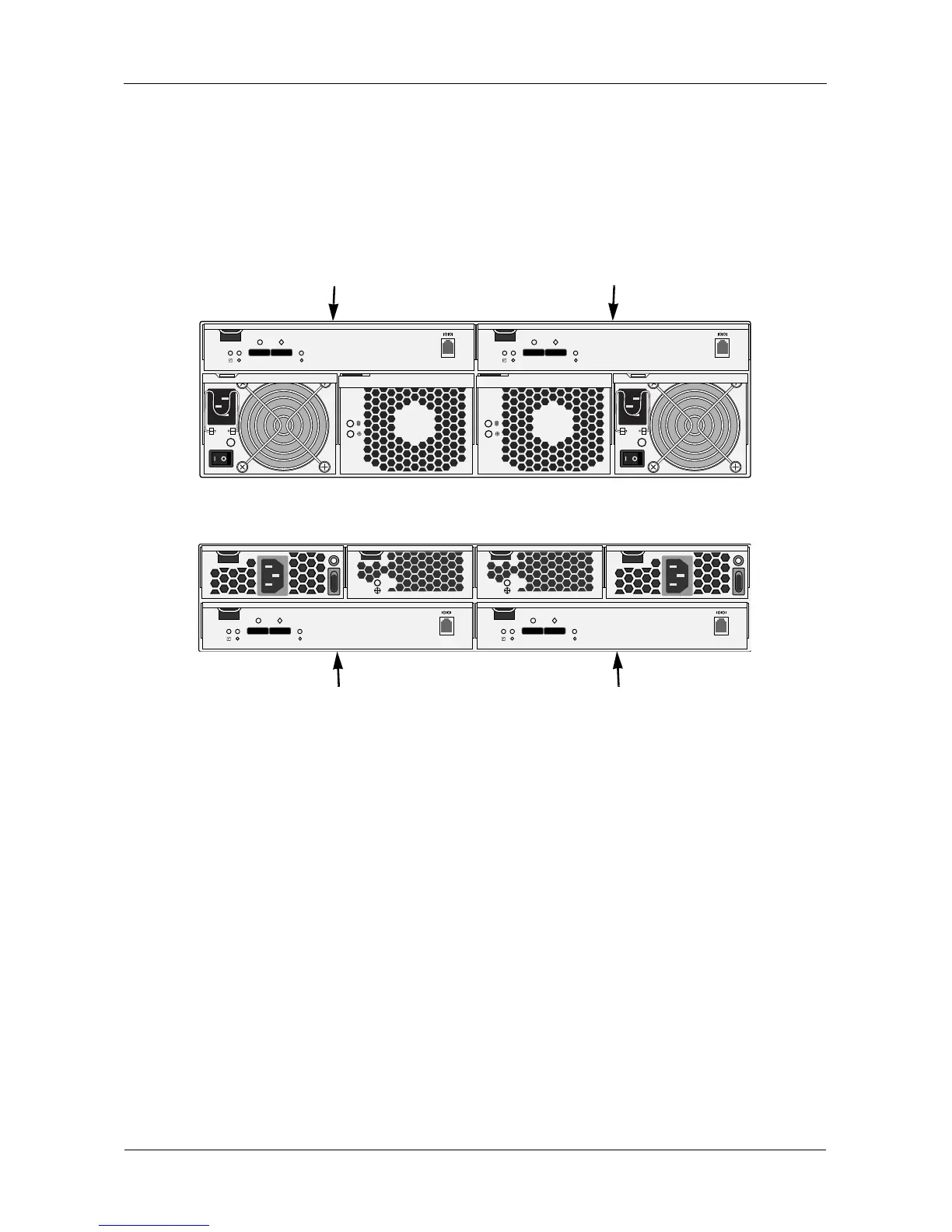

Figure 15. VTrak J610s has one or two I/O modules
Figure 16.VTrak J310s has one or two I/O modules
There can be one or two Input Output Modules (I/O modules) on the J610s or
J310s unit.
• If your J610s or J310s has two I/O modules, I/O module 1 (on the left) is the
default primary.
• If your J610s or J310s has only one I/O module, that I/O module is the
default primary.
Under SAS specifications, both I/O modules are active at the same time. The
terms primary and secondary are for enclosure management purposes only. To
verify which I/O module is the default primary, see Chapter 3 of the VTrak J610s,
J310s Product Manual on the CD.
115200
8 N 1
115200
8 N 1
I/O module 2
I/O module 1
(default primary)
O
I
O
I
115200
8 N 1
115200
8 N 1
I/O module 2
I/O module 1
(default primary)
