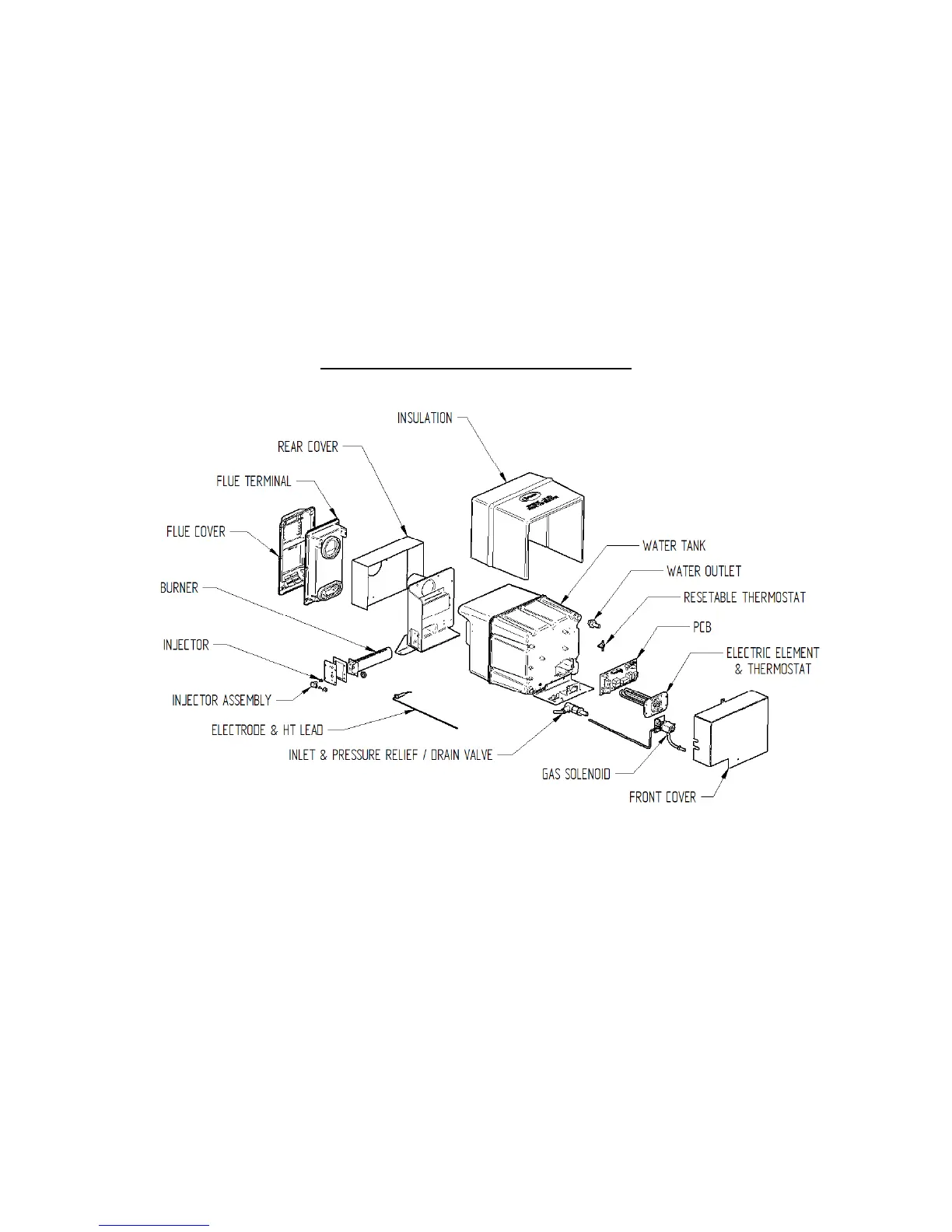

EXPLODED DIAGRAM OF MALAGA 5/5E
This diagram is to be used for reference when carrying out any maintenance on the appliance
This
diagram
is
to
be
used
for
reference
when
carrying
out
any
maintenance
on
the
appliance
.
Note: “ELECTRIC ELEMENT & THERMOSTAT” is only present on Malaga 5E Malaga 5 will have a blanking plate in place of this
