1) Cup Holder
2) Deck Height Index Bracket
3) Deck Lift Handle (Manual Lift)
4) Park Brake Handle
5) Brake Pedal
6) Forward Drive Pedal
7) Reverse Drive Pedal
8) Steering Wheel
9) Seat Adjustment Lever
10) Charging Port and Port Cover
11) Low Cutting Speed Button
12) Cruise Control Button
13) Reverse Mode Operation Button
14) Blade Start / Stop Knob, Power Take
Off (PTO)
15) Key Switch
16) Battery Charge Level and Fault
Warning
6. SET UP
UNPACKING AND ASSEMBLY
1. OPENING THE PACKAGING
The machine is shipped partially dismantled and packaged in a metal crate to

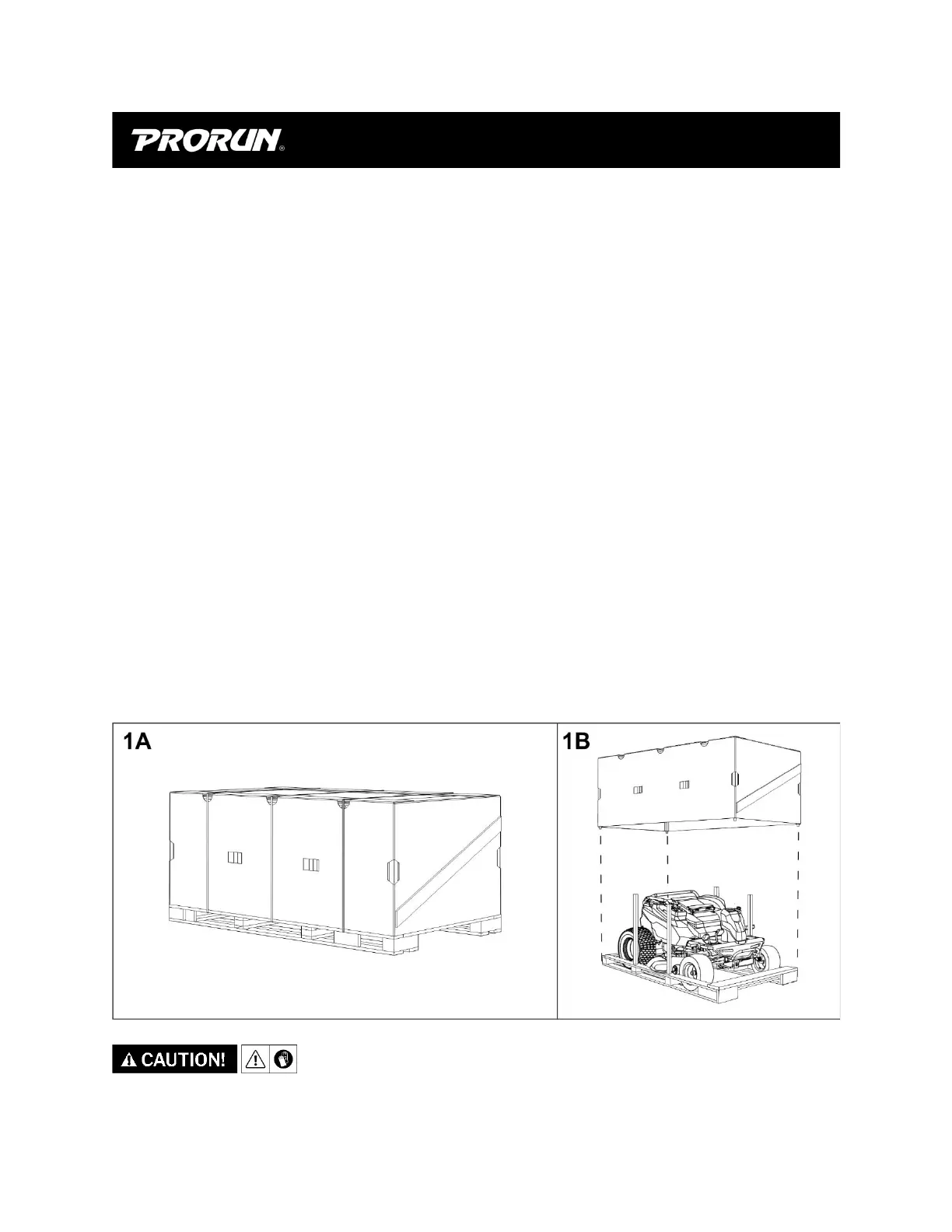

protect it during transport. The packaged machine will appear as in Fig 1A.
A. Remove all shrink wrap and cut the two plastic straps that surround the package.
B. Lift off the corrugated exterior cover assembly and discard the four wooden
support posts. (Fig 1B)
Wear heavy gloves.
