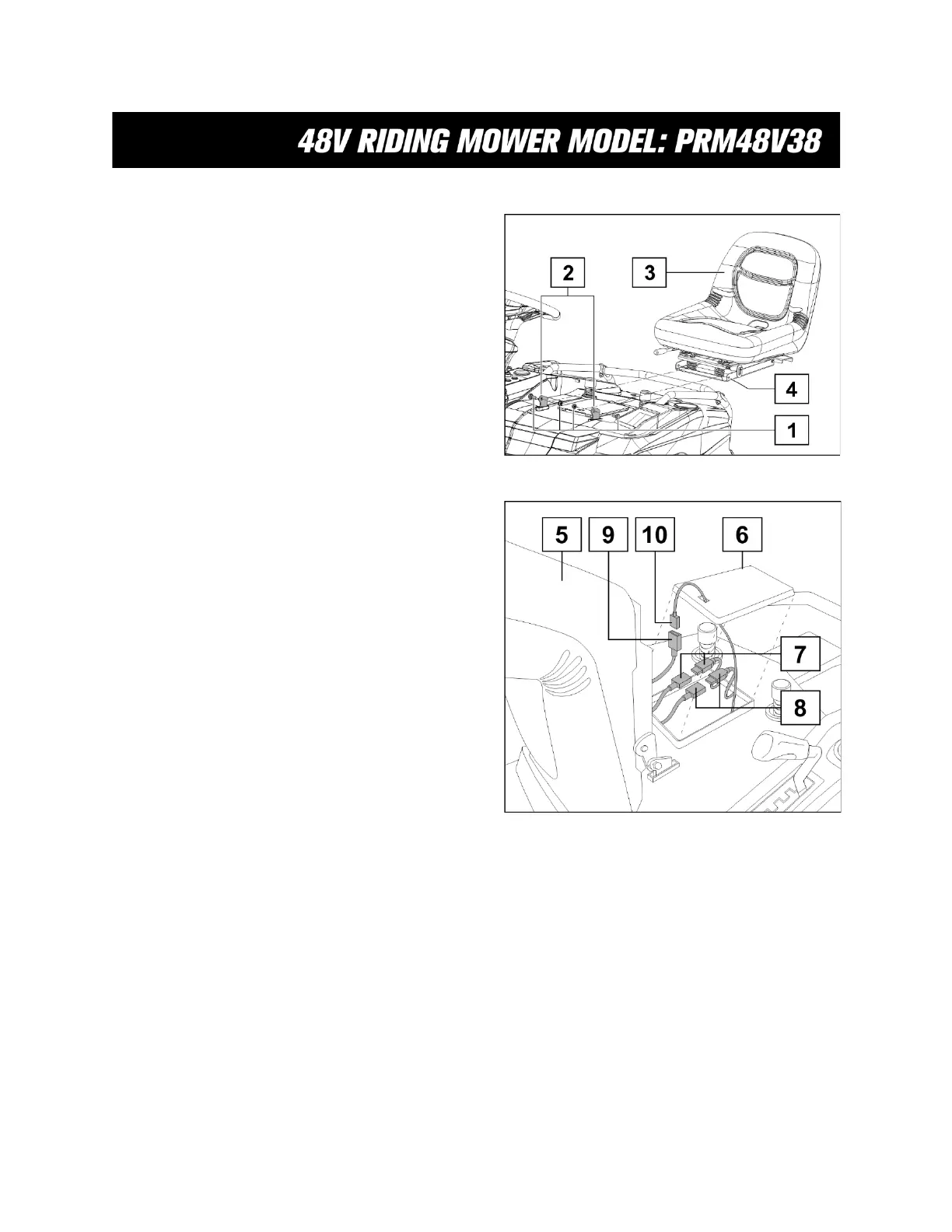

2. MOUNT THE SEAT
A. Remove the two nuts and bolt (1)
from mower's mounting brackets (2).
B. Place the Seat (3) on top of springs
and align the holes on the seat's
mounting bracket (4) with the holes in
mower's mounting brackets (2).
C. Reinsert the two nuts and bolt (1)
and tighten. Test that Seat rotates
upwards towards the steering wheel.
3. CONNECT BATTERY AND OPERATOR PRESENCE SWITCH
A. Lift the Seat (5) and remove the
Battery Compartment Lid (6)
B. Connect the RED Positive Wire
Connectors (7) and the BLACK
Negative Wire Connectors (8),
C. Connect the Wire Harness (9) to the
Operator Presence Switch (10) under
the seat.
D. Replace Battery Compartment Lid
(6)
