24

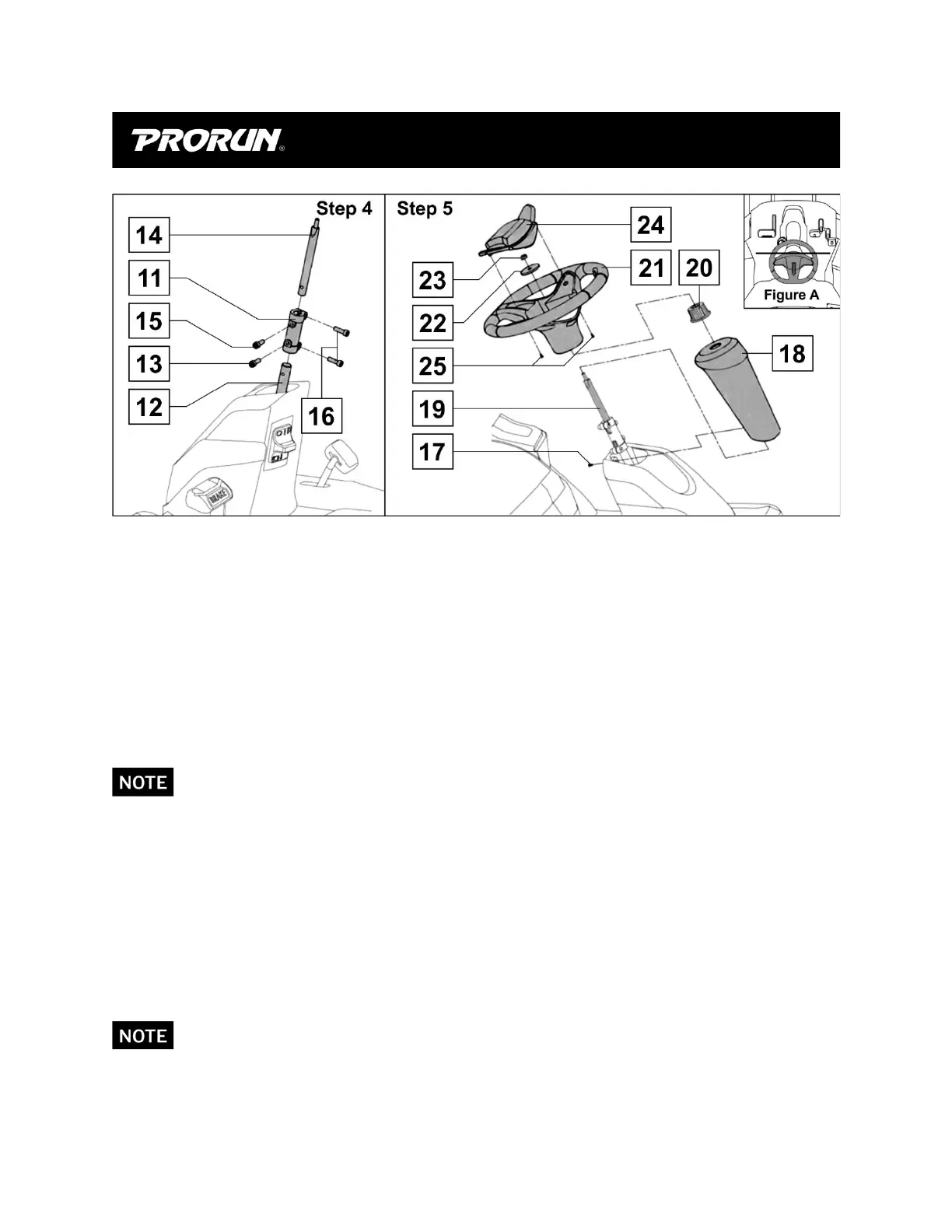

4. MOUNT THE STEERING COLUMN
A. Mount the Coupler (11) onto the
mower's Steering Shaft (12) using
screw M8 x 20 (13).
B. Insert the Steering Column (14) into
the Coupler (11) and fasten with screw
M8 x 20 (15).
C. Complete assembly by tightening
the screws M8 x 20 (16).
The screws for this assembly
are typically found installed in the
Couple.
5. MOUNTING THE STEERING COLUMN
COVER AND STEERING WHEEL
A. Remove the Column Cover Screw
M6 X 25 (17) from the bucket nut
mounted onto the Column Cover (18).
B. Slide the Column Cover (18) over the
Steering Column assembly (19).
Reinsert and tighten Column Cover
Screw M6 X 25 (17).
C. Insert the Splined Hub (20) onto the
Steering Column assembly (19). Mount
the Steering Wheel (21), Spacer (22),
and secure assembly with Nut M8
(23).
D. Insert Steering Wheel Cover (24)
into the Steering Wheel (6) and secure
with two Screws (25) (Screws are
typically found installed in the Steering
Wheel Cover).
Be sure to align the direction of Steering Wheel as shown in Figure A.
