WALL MOUNT INSTALLATION
INSTALLINGREMOVING THE BASE STAND
WARNING
/
:The
LED Display is very fragileand must be protected at all times when removing the base
Stand
Be sure that no hard or sharp objector anything that could scratch or damage the LED displaycomes into
contact with itDo NOT exert pressure on the front of the unit at any time because the screen could crack
1Disconnect all cables or cords connected to the unit
2Lay the unit down on a flat surface with the back side facing down.

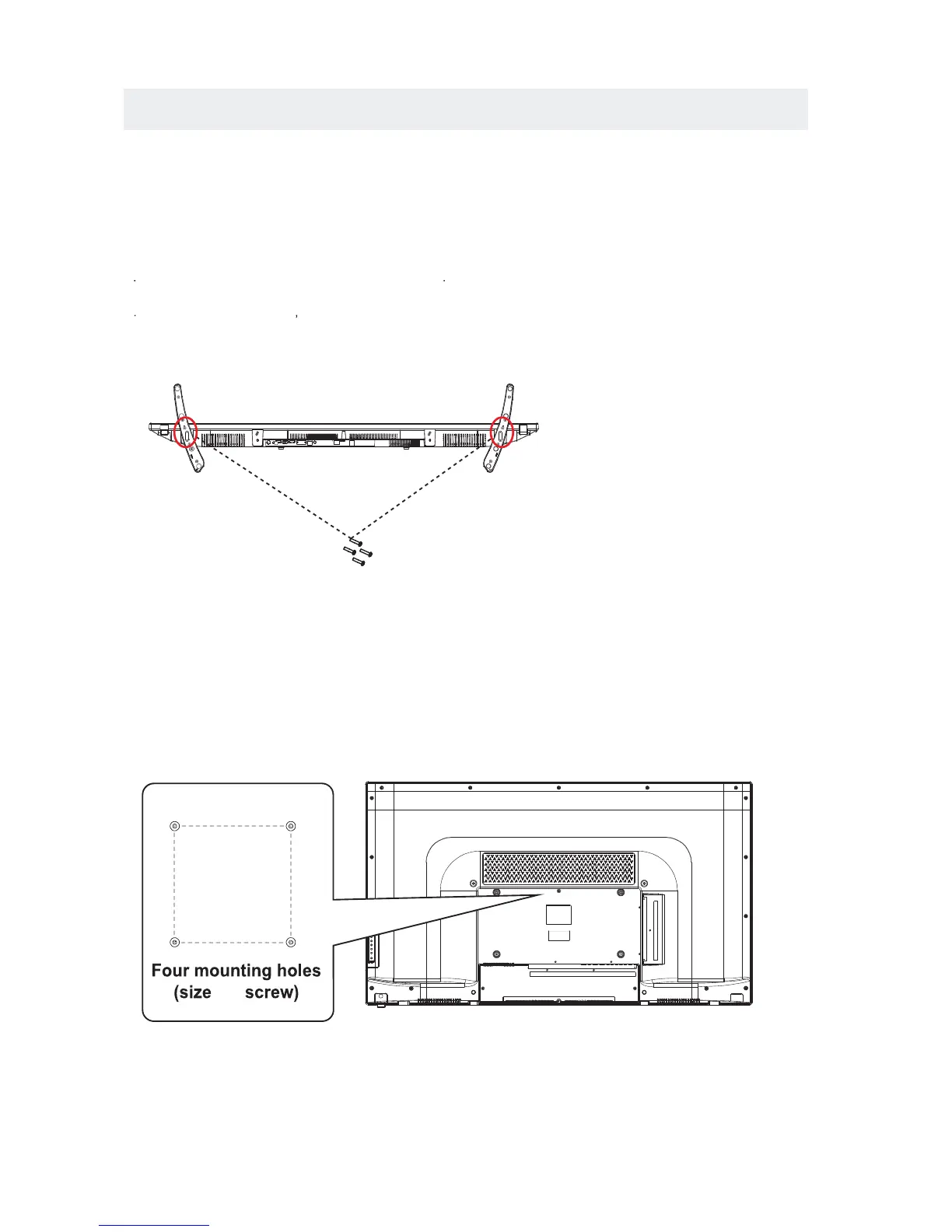

3To remove the base standloosen screws off the holes then pull downwards to release
the base stand
,
.
..
.
MOUNTING ON THE WALL
NOTE
Remove the base stand before mounting the unit on the wall.
This unit is VESA-compliant, and is designed to be wall-mounted with a VESA-compliant 16"x8"
(400x200mm ) mounting kit designed for flat-panel TVs(not supplied). Mount this unit according to
the instructions included in the mounting kit.
Length of screw should not exceed 10 mm.
