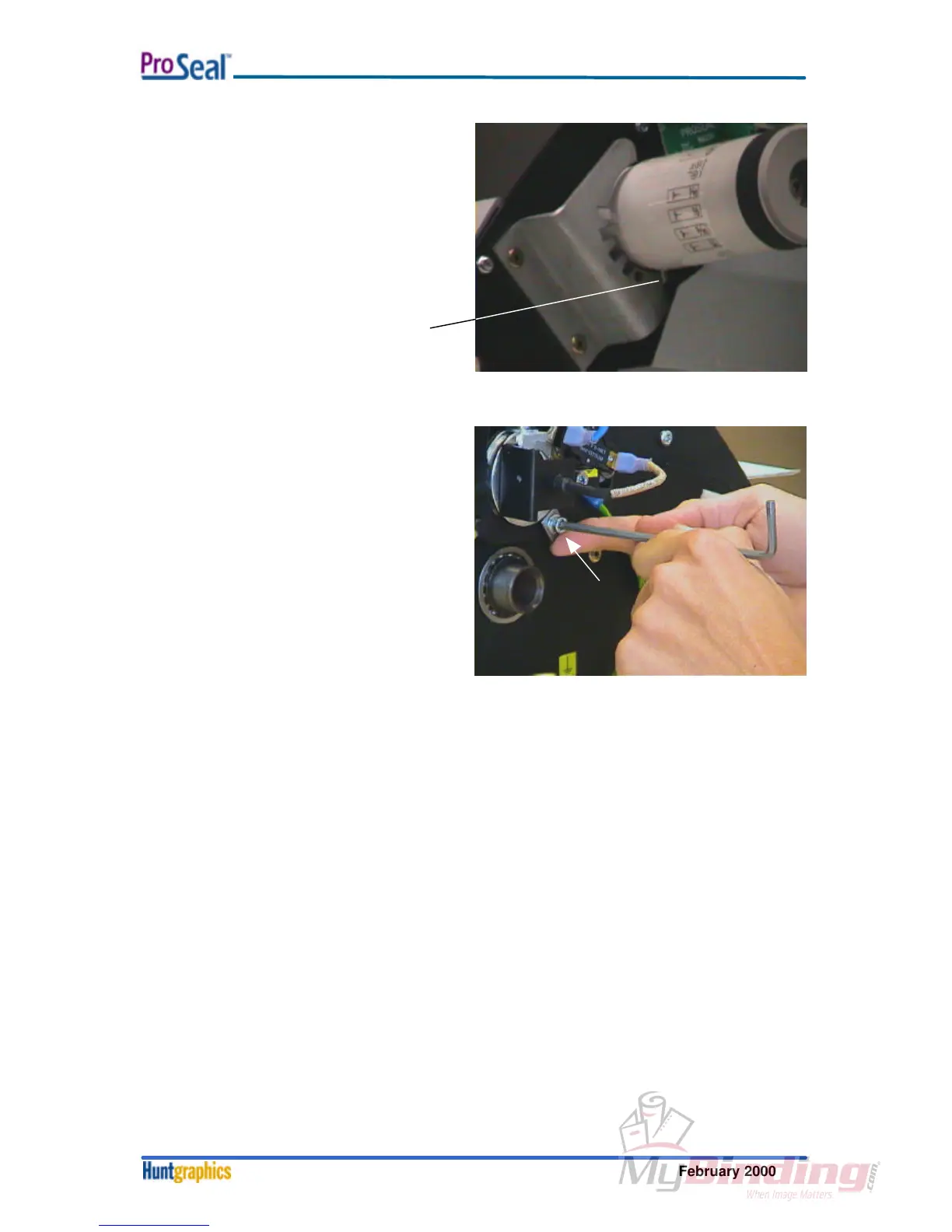

5. Push and rotate the nip setting knob fully
counter-clockwise, until the pin, mounted
in the knob, reaches its lowest position in
the indent bracket. See figure 38.
The top roller is now applying pressure on the
adjustment sheet.
6. Push the adjustment strip against the top
roller bearing housing. Whilst holding the
strip in this position, fasten the M5 bolt(s)
firmly using the Allen key 4mm. See figure
39.
7. Perform the previous step at either side of
the machine.
8. Open the roller nip again, to remove the
adjustment sheet.
fig. 39
push
