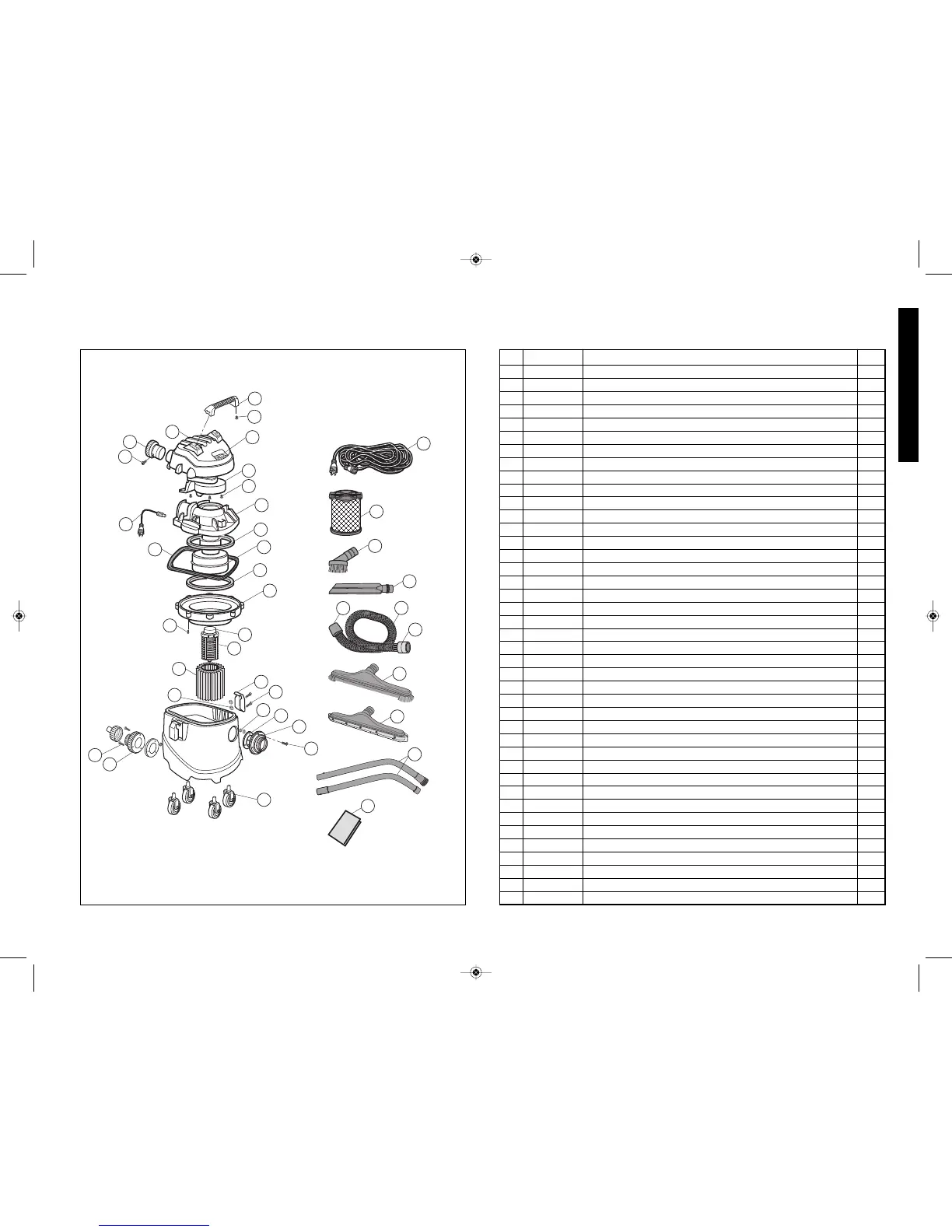

ProTeam ProGuard 20 - Vacuum Assembly and Parts Lists; 10 Gallon Vacuum Assembly and Parts

p
r
o
g
u
a
r
d
10
:7#-)5?6-:O;)6=)4/ Manual del usuario de ProTeam / Mode d’emploi ProTeam 
+6'/8'8:99+3(2?'2254#+:8?"');;399+3(2?
  !$# #'
1 510094 COVER MOTOR ASSEMBLY 1
2 830565-2 HANDLE MOTOR COVER 1
3 820563-4 SCREW SER PN OR TY AB N10 X 3/4 ZN PL 2
4 833417 CORD PIG TAIL 1
5 831651 DUCT MOTOR EXHAUST 1
6 831658 GASKET MOTOR COOLING FAN 1
7 831567 MOTOR ASM 2-STAGE W/BLOWER 1
8 827415 GASKET MOTOR 1
9 826453-2 SCREW PAN CR 10-32 X 3/4 5
10 510127 SWITCH ASM 1
11 831659 COLLECTOR ASM 2 STAGE MOTOR 1
12 823200A FLOAT BLK 1
13 820563-4 SCREW SER PN CR TY AB N10 X 3/4 ZN PL 16
14 830101-1 CAGE FILTER PUSHON-QUICK RELEASE PROTEAM 1
15 833600 DIFFUSER ASM 1
16 831653-3 LID 1
17 833518 GASKET LID 1
18 830609 PAD NR FOAM LID 1
19 107175 FINE DUST FILTER 1
20 833601 TANK 10 GALLON 1
21 833424-1 LATCH DRUM JJI 2
22 833492-1 SCREW PAN CROSS SS 10-32 X 3/4 4
23 833492 SCREW PAN CROSS SS 10-32 X 1.25 3
24 161255-8 NUT LOCK #10 SS 10
25 833493 WASHER (13/64 ID) #10 SS 10
26 833425 ADAPTER DRUM INLET PROTEAM 1
27 833426 GASKET INLET ADAPTER PROTEAM 1
28 833429 DRAIN ADAPTER ASM MACHINED 1
29 833492-2 SCREW PAN CROSS SS 1-32 X 1/375 3
30 833431 CASTER 3” 4
31 833432 EXTENSION CORD 1
32 107177 FILTER, WET APPLICATION 1
33 100110 DUST BRUSH 1
34 100107PT CREVICE TOOL 1
35 833442 HOSE ASSEMBLY 1
36 833577 HOSE ADAPTOR 2
37 833587 HOSE ASSEMBLY LOCKING RING CUFF 2
38 100614 FLOOR BRUSH TOOL 1
39 100143 SQUEEGEE TOOL 1
40 101338 EXTENSION WAND (SET) 1
41 SP6777 OWNER’S MANUAL 1
38
39
40
41
32
33
34
35
37
36
15
3
2
3
10
9
5
1
16
8
7
8
12
11
14
17
13
25
26
23
30
19
24
27
29
28
22
21
31
4
