ProTeam ProGuard 20 - 15 & 20 Gallon Vacuum Assembly and Parts

p
r
o
g
u
a
r
d
15
&
20
:7#-)5?6-:O;)6=)4/ Manual del usuario de ProTeam / Mode d’emploi ProTeam
+6'/8'8:99+3(2?'2254#+:8?"');;399+3(2?
7   :7,=+<)5- #'

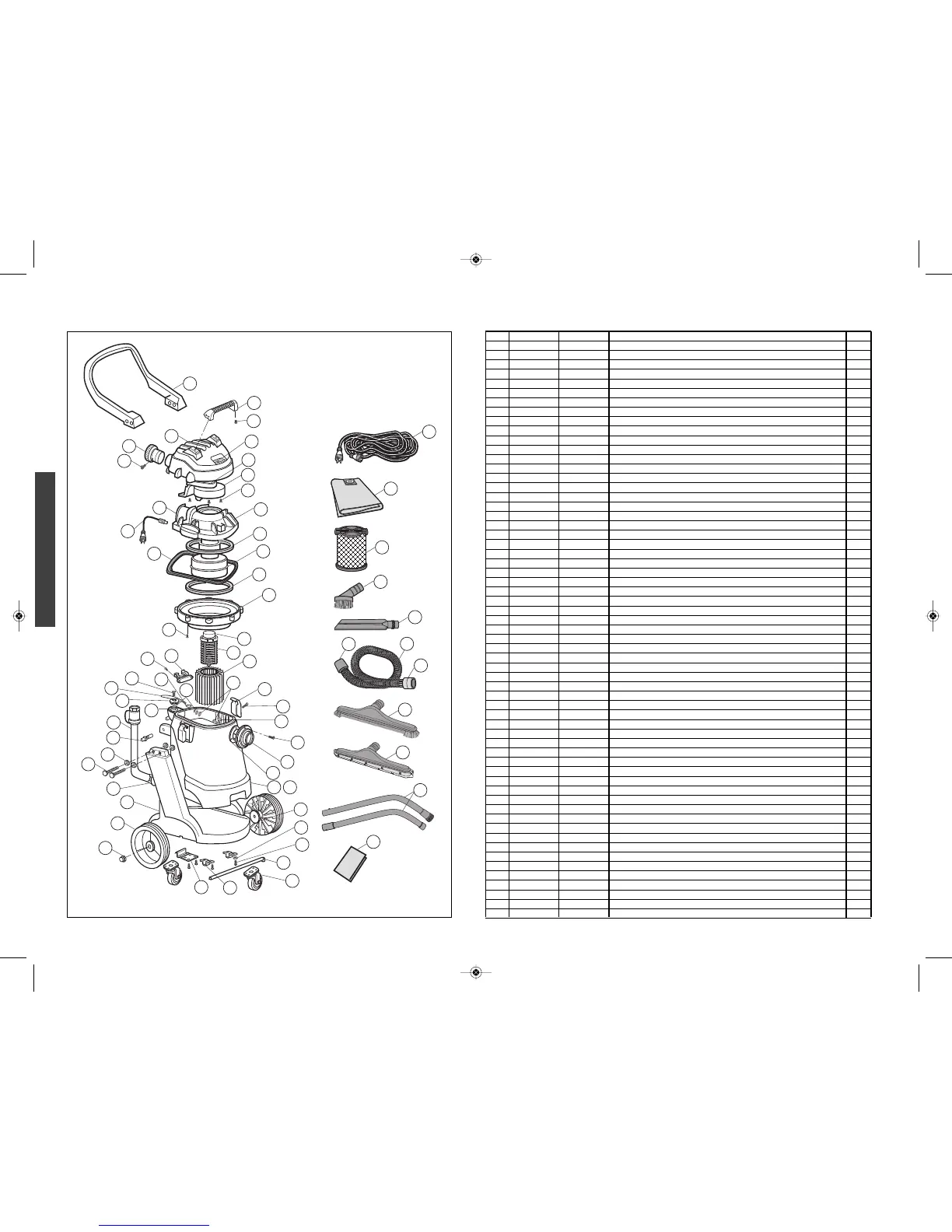

1 510097 510104 COVER MOTOR ASM 1
2 830565-2 830565-2 HANDLE MOTOR COVER 1
3 820563-4 820563-4 SCREW SER PN CR TY AB N10 X 3/4 ZN PL 2
4 833417 833417 CORD PIG TAIL 1
5 831651 831651 DUCT MOTOR EXHAUST 1
6 831658 831658 GASKET MOTOR COOLING FAN 1
7 831567 831567 MOTOR ASM 2 STAGE W/BLOWER 1
8 827415 827415 GASKET, MOTOR 1
9 826453-2 826453-2 SCREW PAN CR 10-32 X 3/4 5
10 510127 510127 SWITCH ASM 1
11 831659 831659 COLLECTOR ASM 2 STAGE MOTOR 1
12 820563-4 820563-4 SCREW PAN CR TY AB 10-32 X 3/4 ZN PL 16
13 823200A 823200A FLOAT BLK 1
14 830101-1 830101-1 CAGE FILTER PUSH ON QUICK RELEASE 1
15 833600 833600 DIFFUSER ASM 1
16 831653-3 831653-3 LID 1
17 833518 833518 GASKET LID 1
18 830609 830609 PAD NR FOAM LID 1
19 107175 107175 FINE DUST FILTER 1
20 — 833603 TANK, 20 GALLON 1
21 833602 — TANK, 15 GALLON 1
22 833424-1 833424-1 LATCH DRUM 2
23 833492-1 833492-1 SCREW PAN CROSS SS 10-32 X 3/4 4
24 161255-8 161255-8 NUT LOCK #10 SS 7
25 833493 833493 WASHER (13/64 ID) #10 SS 7
26 833425 833425 ADAPTER DRUM INLET 1
27 833426 833426 GASKET INLET ADAPTER 1
28 833492 833492 SCREW PAN CROSS SS 10-32 X 1.25 SS 3
29 833451 833451 HOSE DRAIN ASM 30" (includes Key No. 49) 1
30 833452 833452 CLAMP HOSE SS WORM-DRIVE 1
31 808872-2 808872-2 SCREW PAN CROSS TY AB 8 X 3/4” ZN PL 2
32 833454 833454 BUSHING, DRUM HINGE 2
33 833449 833449 CAP RUBBER DRUM POUR SPOUT 1
34 833450 833450 CABLE LANYARD 1
35 833492-1 833492-1 SCREW PAN CROSS SS 10-32 X 1.25 SS 1
36 833456 833456 BASE, CART 1
37 833459 833459 WHEEL 10” 1
38 833460 833460 SPACER WHEEL 1
39 831024-3 831024-3 SHAFT TUBE 2
40 813836-1 813836-1 NUT WASHER CAP 1/2 BLK 2
41 833461 833461 BRACKET SHAFT TUBE 1
42 833462 833462 CASTER 4” W/BEARINGS 2
43 833463 833463 PLATE PEDAL LOCK 2
44 805466-3 805466-3 SCREW HEX HD 5/16-18 X 5/8 3
45 140755-12 140755-12 LOCK WASHER EXT 5/16 1
46 833465 833465 HANDLE, CART BASE 14
47 832397-1 832397-1 SCREW HEX 3/8-16 X 3.750 14
48 805557-1 805557-1 WASHER 13/32 ID 1
49 826881 826881 CLAMP HOSE 4
50 833432 833432 EXTENSION CORD, TWIST LOCK 4
51 107180 107180 FILTER BAG, INTERCEPT MICRO 1
52 107177 107177 FILTER, WET APPLICATION 1
53 100110 100110 DUST BRUSH 1
54 100107PT 100107PT CREVICE TOOL 1
55 833577 833577 HOSE ASSEMBLY 1
56 833587 833587 HOSE ADAPTOR 1
57 833587 833587 HOSE ASSEMBLY LOCKING RING CUFF 1
58 100614 100614 FLOOR BRUSH TOOL 1
59 100143 100143 SQUEEGEE TOOL 1
60 101338 101338 EXTENSION WAND (SET) 1
61 SP6777 SP6777 OWNER’S MANUAL 1
50
58
59
60
61
15
3
46
6
2
3
10
9
5
1
16
18
8
7
8
13
11
19
14
17
31
12
33
26
27
28
2120
38
29
32
45
47
30
36
37
39
42
41
43
45
22
23
40
24
25
35
34
24
25
49
23
44
51
52
53
54
55
57
56
4
SP6777 ProGuard:Layout 1 11/19/10 1:04 PM Page 36
