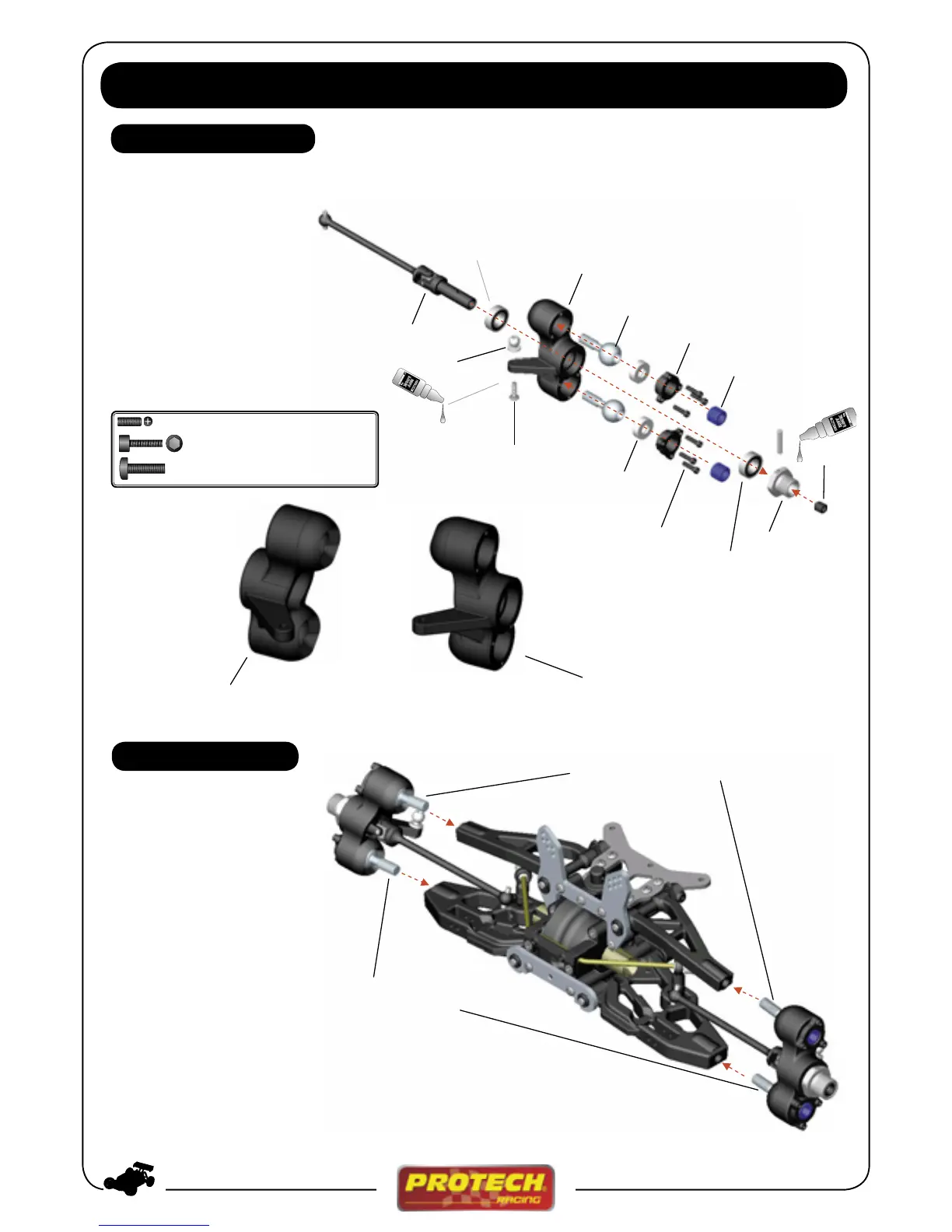

protech YADA ST - Front Steering System Assembly; Front Steering Knuckle and System

12
Assembly of the front suspension / Montage van de voorste ophanging /
Montage de la suspension AV / Montierung von die vordere Querlenker oben
NUT LOCK
NUT LOCK
5 x 5mm
T30.192
Wheel Hub
T30.086
Cup Holder Bushing
T30.101
Cap 2.6 x 10mm
T30.189
Pivot Ball Cup
T30.044
Pivot Ball Cup Holder
T30.044
Pivot Ball 14mm
T30.061
Steering Knuckle
T30.029
Ball 7mm
T30.116
Front Universal Drive Joint
T30.052
R/H 3 x 10mm
T30.211
STEERING KNUCKLE - R
T30.029
STEERING KNUCKLE - L
T30.029
Please refer to the “BASIC SETTING SHEET” page 38
(Track wide)
Right / Left Steering X 2
Front Steering System
5 x 5mm (x2)
Cap 2.6 x 10mm (x6 each side)
R/H 3 x 10mm (x2)
Wheel Hub Pin
T30.115
8 x 16 x 5 mm
ball bearing
T30.144
8 x 16 x 5 mm
ball bearing
T30.144
Please refer to the “BASIC SETTING SHEET” page 46
(Track wide)
