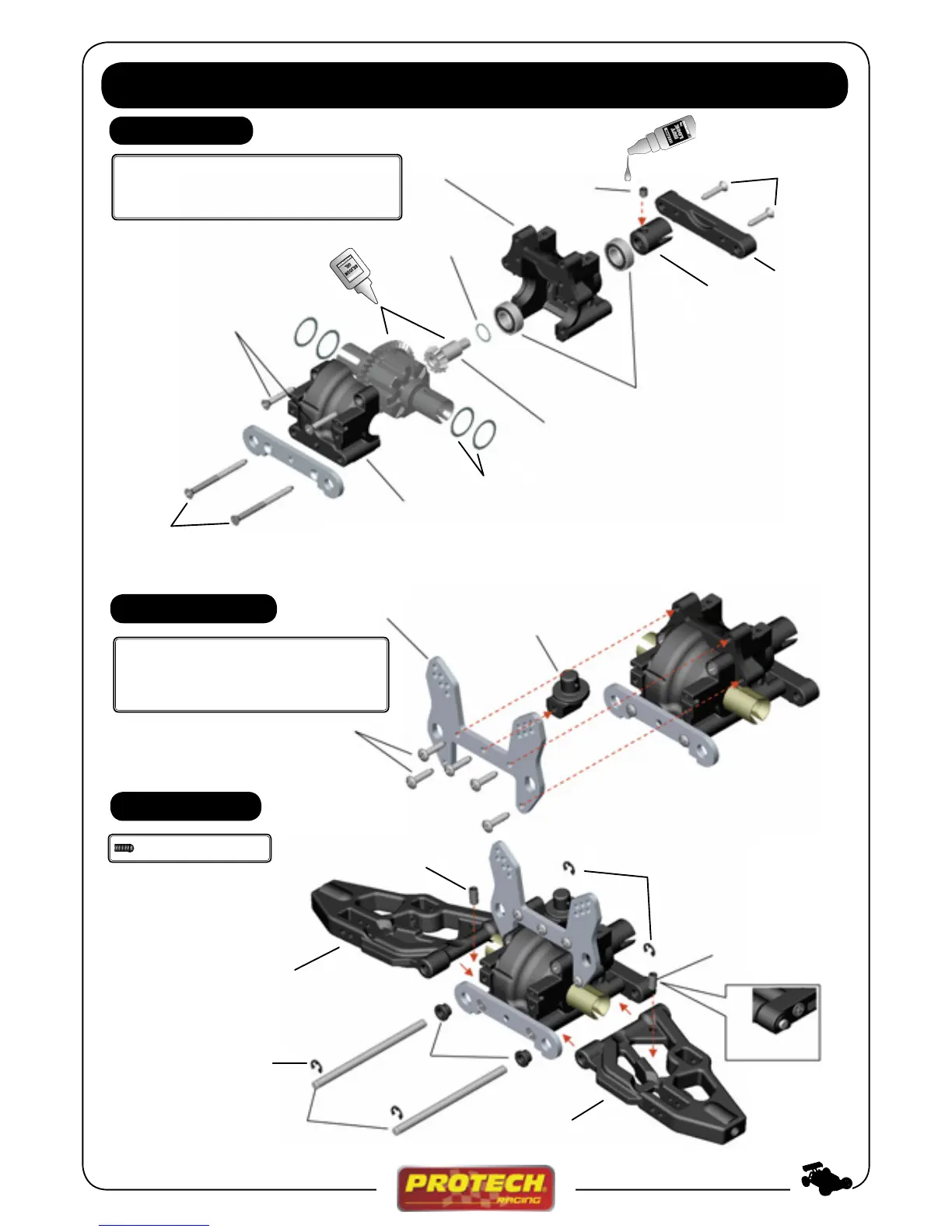

Front Gear Box
Assembly of the FRONT gearbox & SUSPENSION / Montage v/d tandwielkast V & / ophanging
Montage des réducteurs FR & de la Suspension AV / Montierung des Getriebe V & Querlenker V
5 x 5mm set screw
T30.192
F/H 3 x 15mm
T30.178
Front Toe In
(use 1 degree)
T30.048
Drive Joint
T30.057
Shim Ring
T30.088
Shim Ring
T30.111
Pinion Gear small
T30.069
F/H 3 x 20mm
T30.208
FH/ST 3 x 40mm
T30.184
Front Sus. Hinge Pin Holder ( * )
Gearcase
T30.027
Gearcase
T30.027
Front Body Mount
T30.046
Front Shock Tower ( * )
R/H 3 x 12mm
T30.212
E-Clip 3mm
T30.200
E-Clip 3mm
T30.200
Front Sus. Arm-R
T30.025
Front Sus. Arm-L
T30.025
Set Screw 4 x 8mm
T30.191
Set Screw 4 x 8mm
T30.191
Adjuster
T30.049
Front Shock Tower
Front Lower arm
Set Screw 4 x 8mm (x2)
*
YADA ST = 6061 Alu Front Shock Tower T30.078
YADA PRO = 7075 Lighten CNC Front Shock Tower T31.204
YADA PRO-X = 7075 Lighten CNC Black/Chrome design
Front Shock Tower-X T31.205
NUT LOCK
High Speed Grease
SL001
Front Lower Susp. Hinge Pin
T30.072
8 x 16 x 5 mm
ball bearing
T30.144
*
YADA ST = 6061 Alu Front Sus. Hinge Pin Holder T30.083
YADA PRO = 7075 CNC Front Sus. Hinge Pin Holder T31.212
YADA PRO-X = 7075 CNC Front Sus. Hinge Pin Holder-X T31.238
