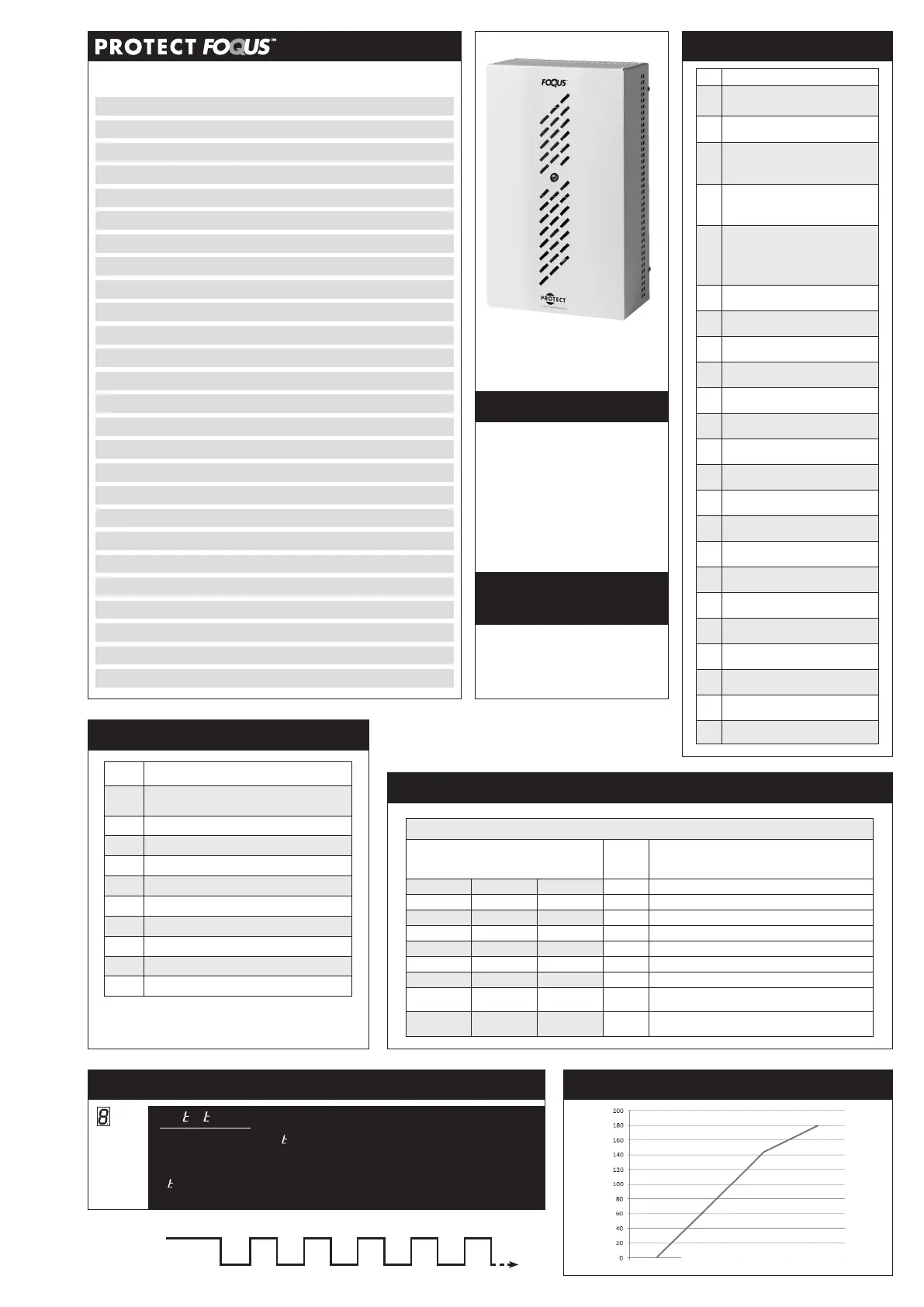

Protect 600i - PROTECT FOQUS Specifications and Features

SPECIFICATIONS:
FOG OUTPUT DIAGRAM
TYPICAL
SPARE PARTS
FOG TIME DIP 2-3-4
CONSUMER GOODS
90020206 XTRA
+
Fog fluid 3 l
90020230 30° Nozzle
SPP1060 Batteri 12V - 1,2Ah
SPP1075-0000 Thermo Sensor
SPP200-0020 Heating Rod
SPP200-0000 Print
White - Item no.: 90010201
FOQUS
TM
Dip Setting Fog Time Fog Volume
Dip 2 Dip 3 Dip 4
OFF OFF OFF -
Do not use
ON OFF OFF -
8 m
2
/ 72 m
2
OFF ON OFF -
16 m
2
/ 144 m
2
ON ON OFF -
25 m
2
/ 180 m
2
OFF OFF ON -
10 sec. of fog + 3 pulse shots (in all about 90 sec. fog)
ON OFF ON -
10 sec. of fog + 6 pulse shots (in all about 180 sec. fog)
OFF ON ON -
6 sec. of fog (full speed) + 294 sec. of fog
(reduced speed). In all 300 sec. fog
ON ON ON -
5 sec. of fog (at normal speed)
+ 5 min. of continuous fog (at very slow speed)
Fog generation: Rooms up to 25 m²
Fog production settings: Three possible durations (8, 16 and 25 m
2
)
Pulse mode: Yes, can shoot several times (3 settings)
Fog uid container: 1.1 litre (same as model 600
TM
/600i
TM
and 1100
TM
/1100i
TM
)
Shots per container: Min. 20
Electronic uid measurement: Yes
Mains connection: 230 V, 50 Hz z
Power consumption: 700 W
Standby consumption (after warm up): 55 W
Standby consumption (when heat is disabled): 5 – 10 W
Warm-up time from cold: 7 min.
Warm-up time after fog discharge: ½ – 3 min.
Operation temperature (min./max.): 5/80° C.
Input: 5 signals
Output: 3 signals
Control settings for fog time, signals and heating: On/off DIP switches
Battery back up (2 x 12 V, 1.2 Ah): Electronics and pumps
Power backup after power failure: Up to 1 hour
Built-in automatic battery loading: Yes
Signals/Indicators: Audible, optical, and electrical
PCB status indicator: Yes
Data log memory: Yes, optional with IntelliSuite
TM
Dimensions (mm): L: 400, B: 240, H: 135
Installation weight: 7 kg
Possibility of 2 different angled nozzles: Yes (straight ahead and 30°)
Metal casing colour: White



 
0 sek. 10 sek. 20 sek. 30 sek.
144
72
0
180
DISPLAY EXPLANATION
DISPLAY
H
Heating. The system is in the heating
phase and has not reached operating
temperature.
r
The system has reached normal operating
temperature and is ready to produce fog.
d
”Disable” input activated and system
blocked, as the alarm is not connected
(heating has not been disconnected).
Hd
”Heat Disable”. ”Disable” input activated
and system blocked, as the alarm is not
connected. Heating is also disconnected, as
dipswitch 1 is in the ON position.
bt
“Blocking timer active”. System blocked
from fog triggering internally (timer-con-
trolled). This occurs after the fog has been
triggered or in connection with system
start-up after loss of mains voltage.
A
“ARM” input activated.
P
“Primary Trig” input activated.
S
“Secondary Trig” input activated.
bAt
A battery is (or has been) mounted.
C
The battery is currently being charged.
E1
Mains voltage failure.
E2
Low uid level.
E3
Fire alarm input activated.
E4
Low battery voltage.
E5
Failed attempts to charge the battery for
24 hours.
E6
Battery failed load test.
E7
PCB temperature too high.
E8
PCB temperature too low.
E9
Thermo-sensor temperature too high (or
connection lost).
E10
Thermo-sensor temperature too low
(after preliminary heating).
E12
Pump timeout. The pump has been running
for too long. Lack of uid, etc.
E13
External 12 supply shut down due to
overload.
E14
Error in “load test circuit”.
DIP
Function
1
Heat disable. On = The heating element
disconnects if disable is activated
2 Fog time
3 Fog time
4 Fog time
5 Arm*
6 Primary*
7 Secondary*
8 Fire-alarm delay**
9 Reserved. Leave in OFF position
10
Error indicator. On = Beeper connected
* ON = normal open.
OFF = normal closed.
** ON = delay is active.
DIPSWITCH SETTINGS
Break Break
PROTECT Pulse Effect
TM
6/10 sec. fog Fog output Fog output Fog output Fog outputFog output
BreakBreakBreak
Display/
fault codes
DISPLAY / FAULT CODES
PrO Ec 600 EU
H. H: Heat
r. r: ready
d. d: disable
H.d. Hd: Heat disable
B. . Bt: Blocking timer
A. A: Arm trig
P. P: Primary trig
S. S: Secondary trig
b.A. . bat: battery
C. C: Charge
E. E: Error + no
1.234567890
1.234568790
rc. rc: Remotely controlled*
norc. norc: No remote control signal*
rd. Remotely disabled*
rHd. rHd: Remotely heat disabled*
rP. rP: Remote primary*
rb. rb: Remotely blocked*
rF. rF: Remote re alarm*
rPA rPA: Remote panic alarm activated*
