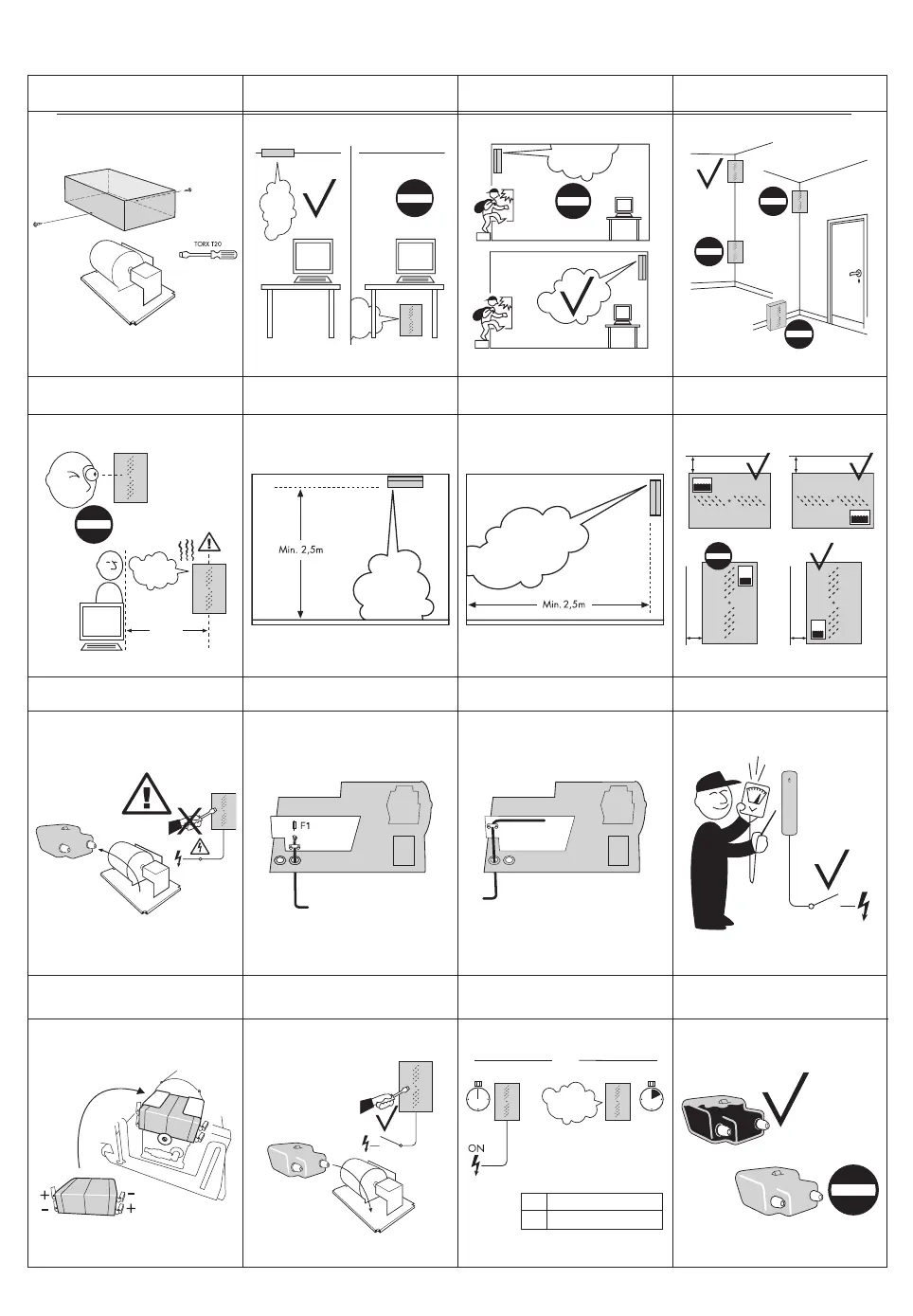

Mounting and positioning
Ensure immediate coverage of possible access
points
Cabling of PROTECT FOQUS™ – high voltage Cabling of PROTECT FOQUS™ – low voltage Check the control signals before testing
The fog needs free passage
Connect the battery.
One battery measures 97 x 43 x 51 mm
Remember to heat the system before testing
Check the uid level after testing (hand over
the fog machine
with a full uid container)
Install the uid container and attach the metal
cover using the 2 screws to x it
Removal of cover Place the Fog Cannon™ out of reach
Take precautions before service
Min. safety distance is 35 cm Min. installation distance from objects is 2,5 mMin. installation distance from objects is 2,5 m
Min. 35 cm.
Place the uid container correctly
LOW VOLTAGE
TO ALARM SYSTEM
Min. 10 cm
Min. 10 cm
Min. 10 cm
Min. 10 cm
Min.
PROTECT FOQUS
TM
7
HIGH VOLTAGE
MAIN POWER
