OPERAnNG

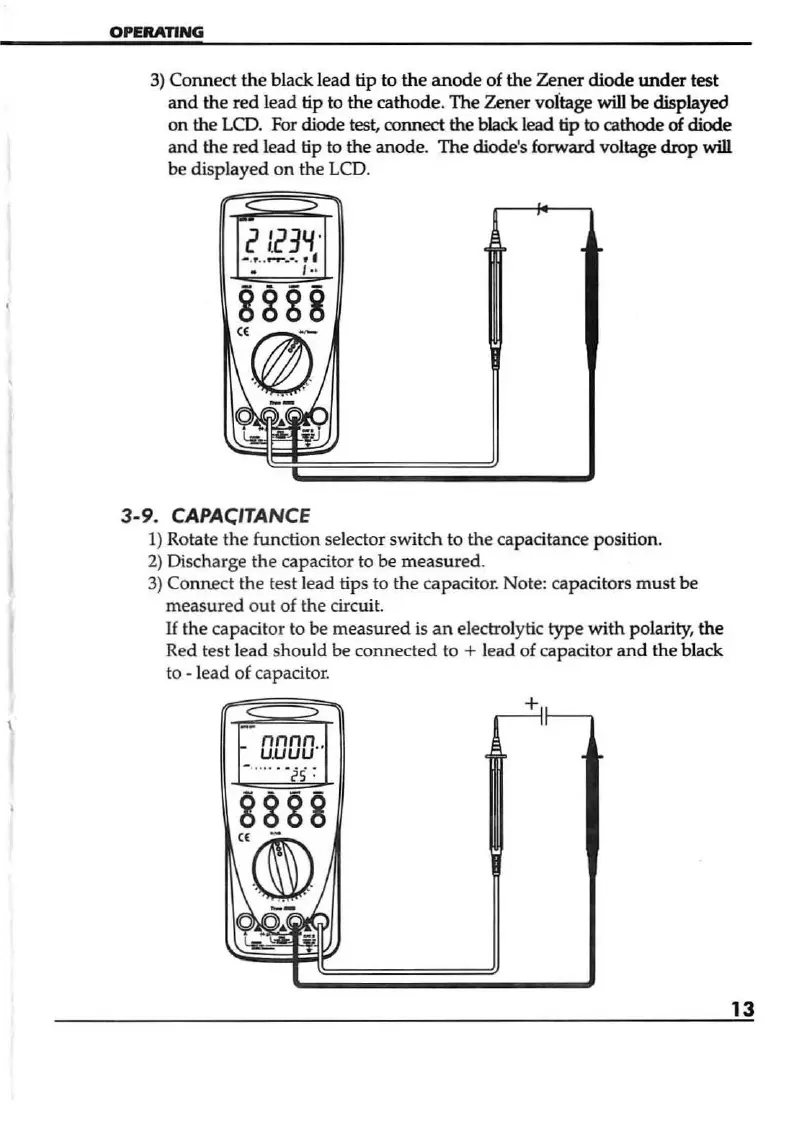

3) Connect th e black lead tip to the anode of th e Zener diode under test
and the red lead tip to the cathode . The Zener voltage will be displayed
on the LCD. For diode test, connect the black lead tip to cathode of diode
and the red lead tip to the anode . The diode 's forward voltage drop will
be
di splayed on th e LCD.
3-9. CAPACITANCE
1) Rotate the fu nction selector switch to the ca pacitance po sition.
2) Discharge the capacitor to be measured.
3) Co nne ct the test lead tips to th e capacit or. No te: capacitors must be
me asured out of the circuit.
If th e capacitor to be meas ur ed is an electroly ti c type with polarity, the
Re d test lead should be connected to + lead of ca pacitor and the black
to - lead of capacitor.
+"
--
"
aaaa ··
-
·· ·· ·· 8 '
8888
l~
o o.
~ ""::J:.vjL
13
