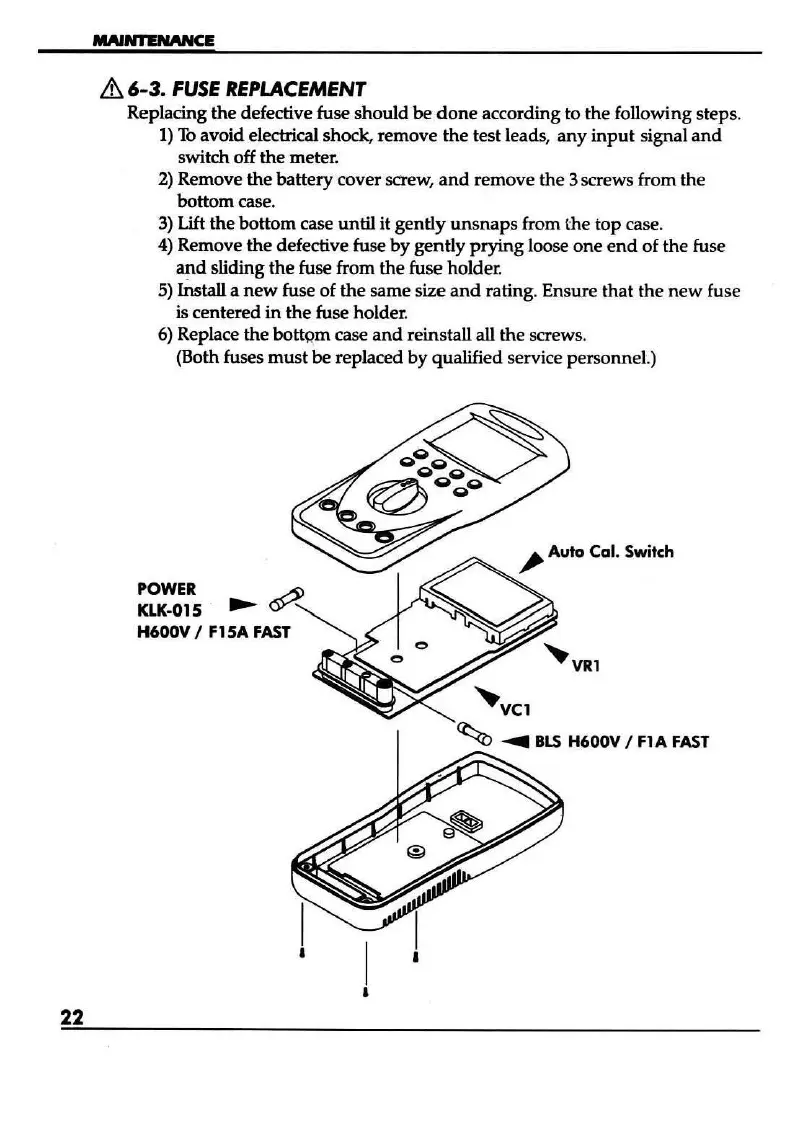

6-3.
FUSE
REPLACEMENT
Replacing the defective fuse should be
done
according to the following steps.
1)
To
avoid electrical shock, remove the test leads,
any
input
signal
and
switch off the meter.
2) Remove the battery cover screw, and remove the 3 screws from the
bottom case.
3)
Lift
the bottom case until it gently unsnaps from the top case.
4)
Remove
the
defective fuse by gently prying loose one
end
of the fuse
and
sliding the fuse from the fuse holder.
5) Install a
new
fuse
of
the same size and rating. Ensure that the
new
fuse
is centered
in
the fuse holder.
6)
Replace the bott
p'
m case
and
reinstall all the screws.
(Both fuses must
be replaced by qua1ified service personneL)
POWER
KLK·015
H600V
/ F15A
FAST
I
,
