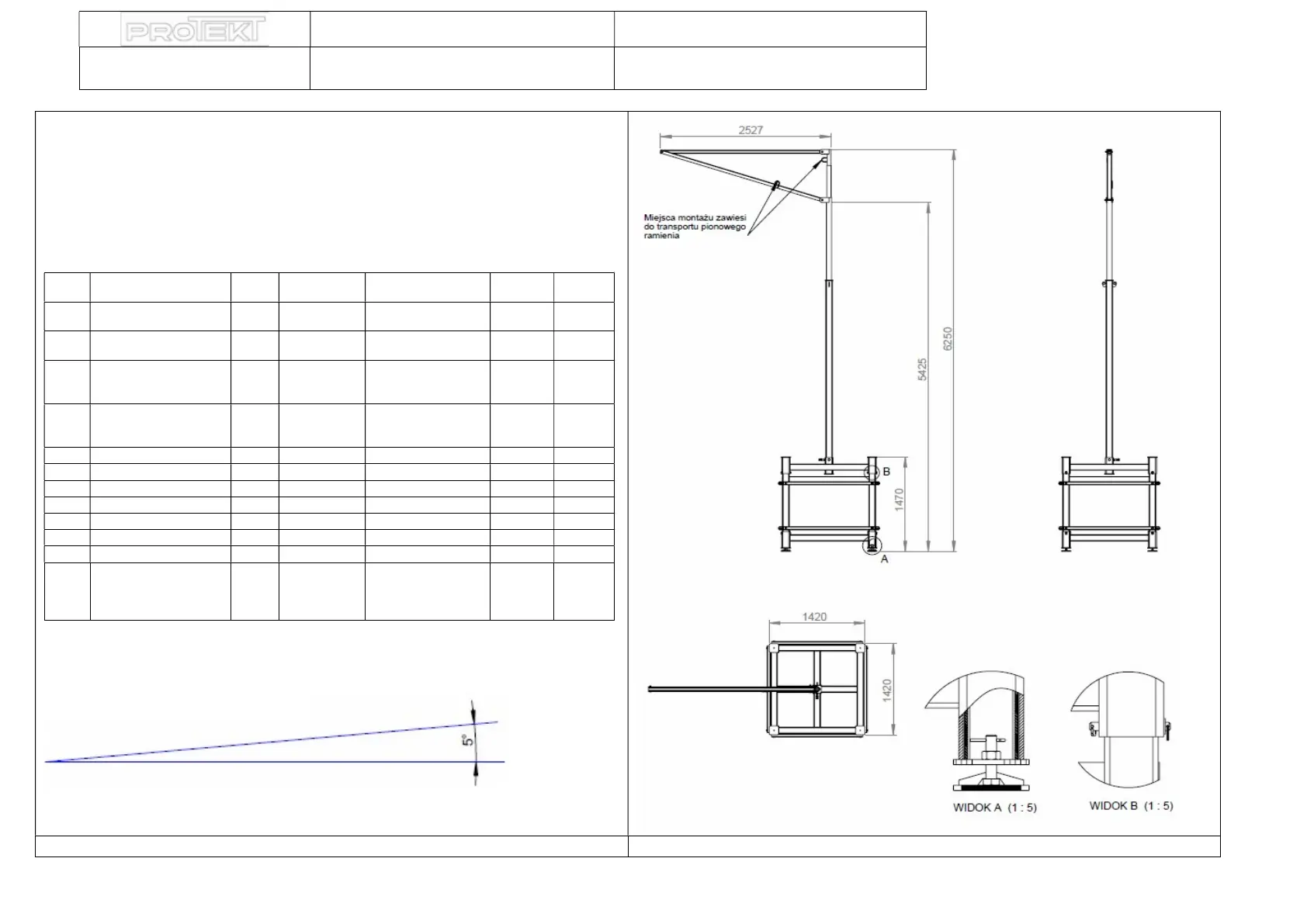

INSTALLATION OF THE DEVICE (Method of use no. 1 and 2)
Order of installation
Before installing the device RJ200 prepare necessary tools as follows:
• Hammer
• Spirit level
• Combination open-end wrenches 19mm (2 pcs.)
List of elements:
12 Śruba M12x90 (Bolt) 16 galvanized
steel
DIN 931 0.090
11 Podkładka M12
(Washer)
16 galvanized
steel
DIN 125-A 0.010
10 Locking pin 8 S235/A2
(steel)
ASB500-130 0.250
9 Płyta OSB #18mm
boczna (OSB side
panel)
4 OSB panel
#18mm
(OSB)
RJ200.09.000 12.400
8 Płyta OSB #18mm
dolna (OSB bottom
panel)
1 OSB panel
#18mm
(OSB)
RJ200.08.000 20.200
7 Belka (Beam) 8 S235 (steel) RJ200.07.000 7.200
6 Ramię (Arm) 1 S235 (steel) RJ200.06.000 65.000
5 Gniazdo (Socket) 1 S235 (steel) RJ200.05.000 76.400
4 Pokrywa (Cover) 1 S235 (steel) RJ200.04.000 138.000
3 Noga (Leg) 4 S235 (steel) RJ200.03.000 23.800
2 Podpora (Support) 4 S235 (steel) RJ200.02.000 1.690
1 Podstawa (Base) 1 S235 (steel) RJ200.01.000 132.000
Nr.
częś.
(Part
No.)
Nazwa części /
zespołu
(Part / Assembly
name)
Sztuk
(pcs).
Materiał
(Material)
Nr rys. / Nr normy
(Drawing No /
Standard No)
Ciężar
[kg]
(Weight)
Uwagi
(Notice)
1. Level base “1” using four supports “2”.
Maximum inclination angle of a surface on which the device can be placed is shown
in figure above.
