Proteus EEC-1800 - Step 3: Handrail and Pivot Cap Installation; Step 4: Connecting Arm and Pedal Assembly

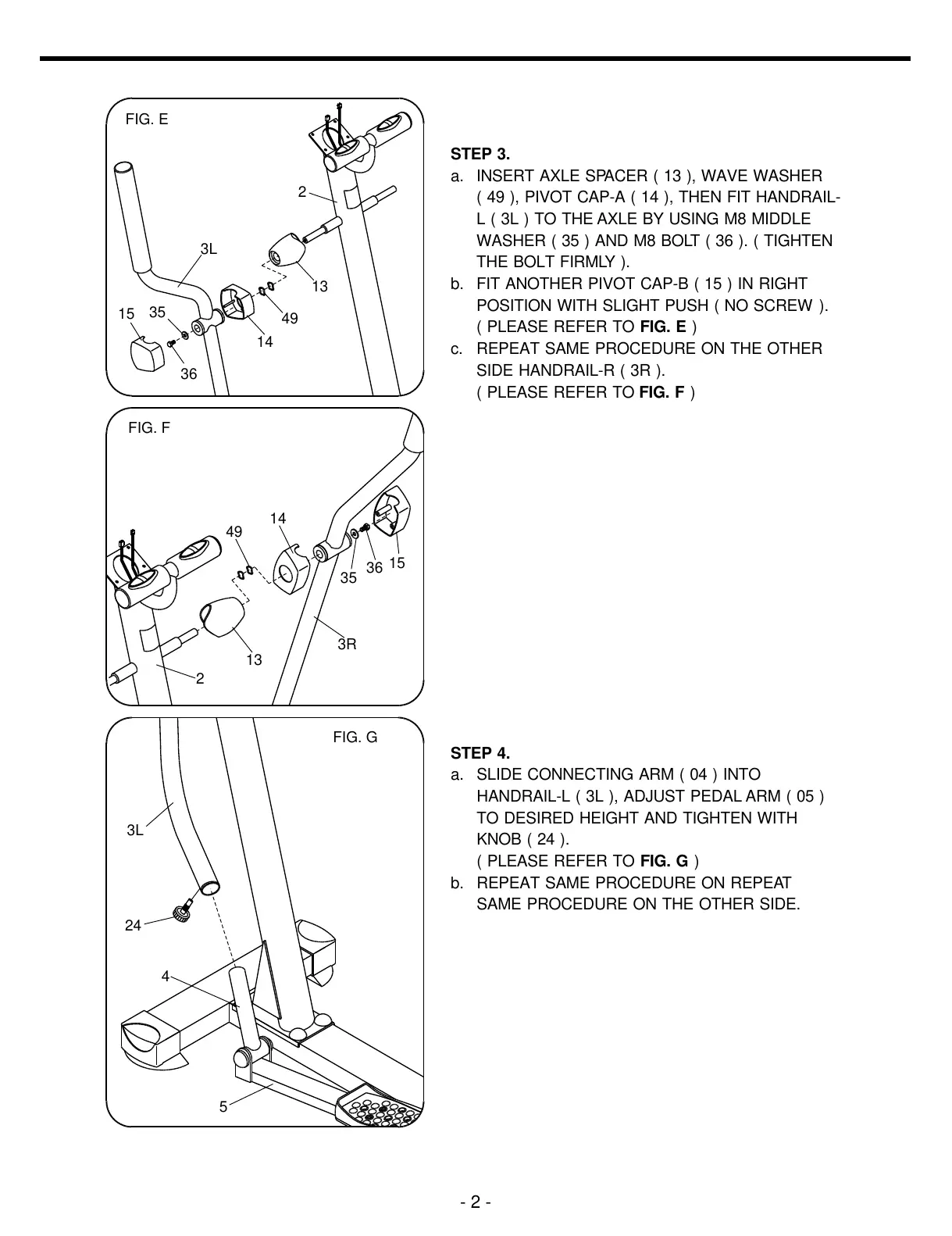

STEP 4.
a. SLIDE CONNECTING ARM ( 04 ) INTO
HANDRAIL-L ( 3L ), ADJUST PEDAL ARM ( 05 )
TO DESIRED HEIGHT AND TIGHTEN WITH
KNOB ( 24 ).
( PLEASE REFER TO FIG. G )
b. REPEAT SAME PROCEDURE ON REPEAT
SAME PROCEDURE ON THE OTHER SIDE.
STEP 3.
a. INSERT AXLE SPACER ( 13 ), WAVE WASHER
( 49 ), PIVOT CAP-A ( 14 ), THEN FIT HANDRAIL-
L ( 3L ) TO THE AXLE BY USING M8 MIDDLE
WASHER ( 35 ) AND M8 BOLT ( 36 ). ( TIGHTEN
THE BOLT FIRMLY ).
b. FIT ANOTHER PIVOT CAP-B ( 15 ) IN RIGHT
POSITION WITH SLIGHT PUSH ( NO SCREW ).
( PLEASE REFER TO FIG. E )
c. REPEAT SAME PROCEDURE ON THE OTHER
SIDE HANDRAIL-R ( 3R ).
( PLEASE REFER TO FIG. F )
- 2 -
3L
24
4
5
FIG. G
3L
36
FIG. E
15
35
13
14
2
49
36
35
2
13
3R
14
15
FIG. F
49
