Protouch prowarm ProTouch V2 - Wiring Instructions; Power and Sensor Connections; Safety Precaution

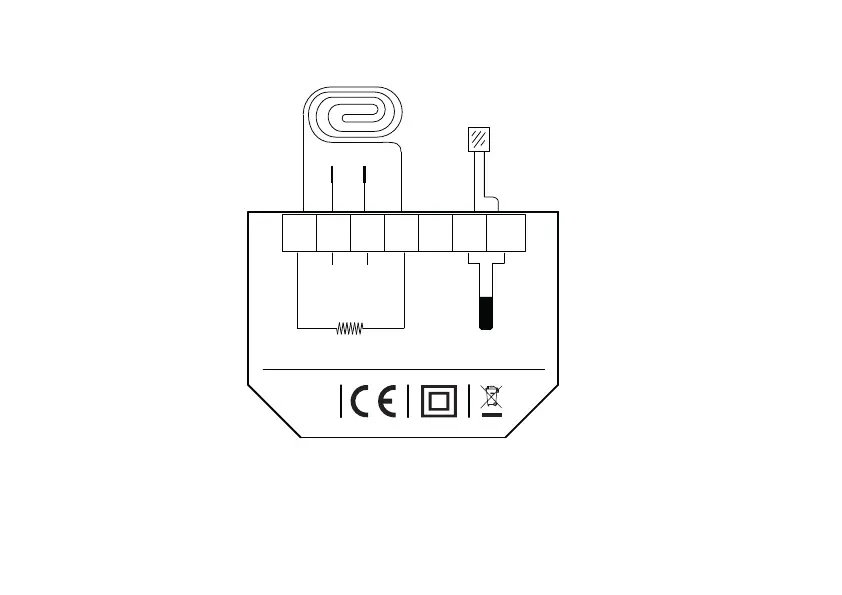

WIRING INSTRUCTIONS
Ensure power is disconnected when wiring!
MAX LOAD: 16A
SENSOR
L1N1 N L
FLOOR
SENSOR
POWER
85V-265V
50/60Hz
IP 21
N1
N
L
L1
S2 COM
S1
POWER
FLOOR SENSOR
Suggestion: Please keep the max load around 90% of 16A to prolong the lifetime.
