prowarm protouch iQ - LCD Display; Mode 2 - Time Clock

3029
1
4
5
2
10
7
9
3
8
6

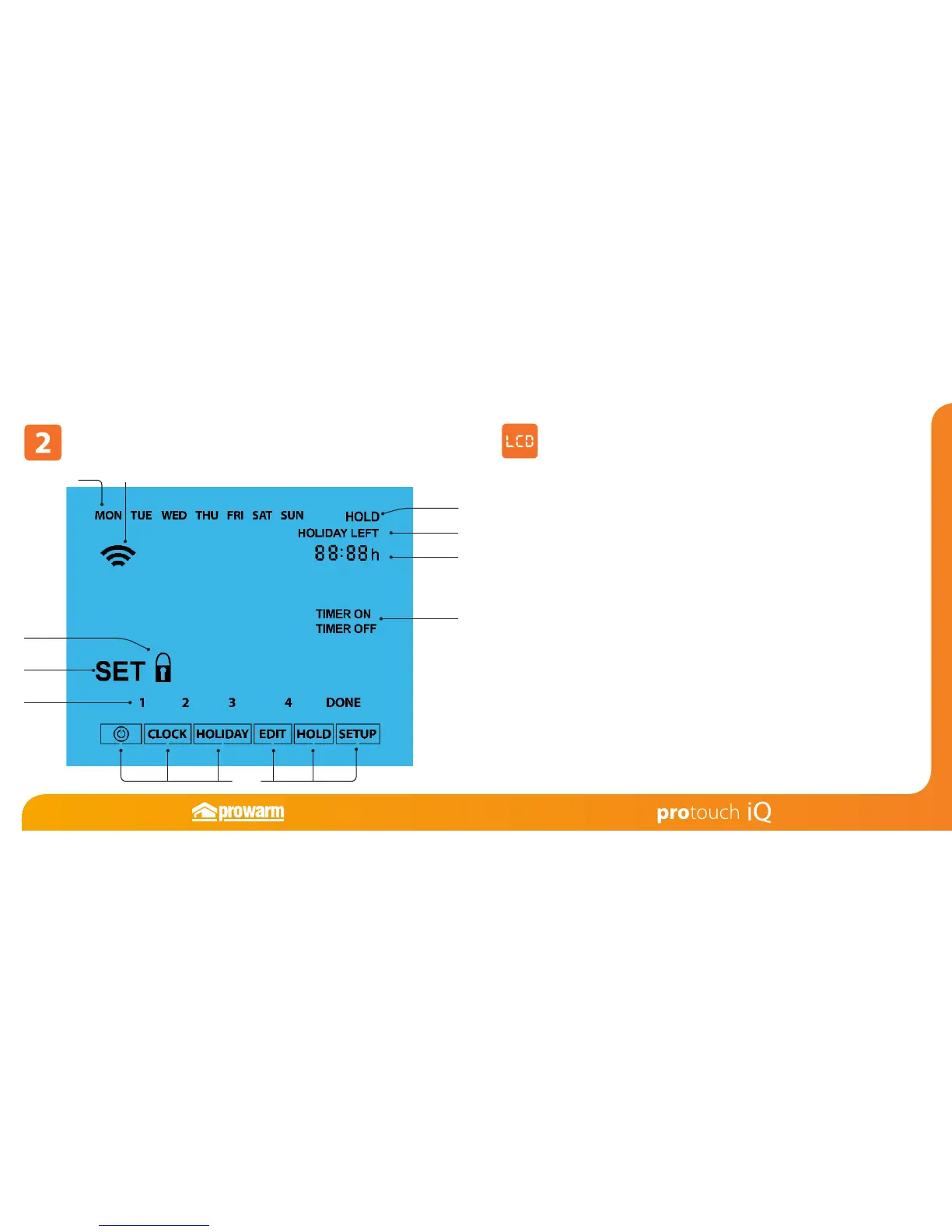

Mode 2 - Time Clock
1. Day Indicator - Displays the day of the week.
2. Mesh Symbol – Displayed when connected to the ProTouch iQ Hub.
3. Key Lock Indicator – Displayed when the KeyLock is Locked.
4. Set – Displayed when changes are being made to the program schedule or
current set point.
5. Program Indicator – Displayed during programming to show which period is
being altered.
6. Main Menu – Displays which option is currently selected.
7. Timer Status – Displays the current state of the timed output.
8. Clock - Time displayed in 24 hour format.
9. Holiday Left – Displayed when the thermostat is in holiday mode.
10. Hold Left – Displayed when a temperature hold is active, the remaining time
will be shown.
LCD Display
