EDDYTHERM operating manual
20
Clip-type probe [ETH 7305] (optional)

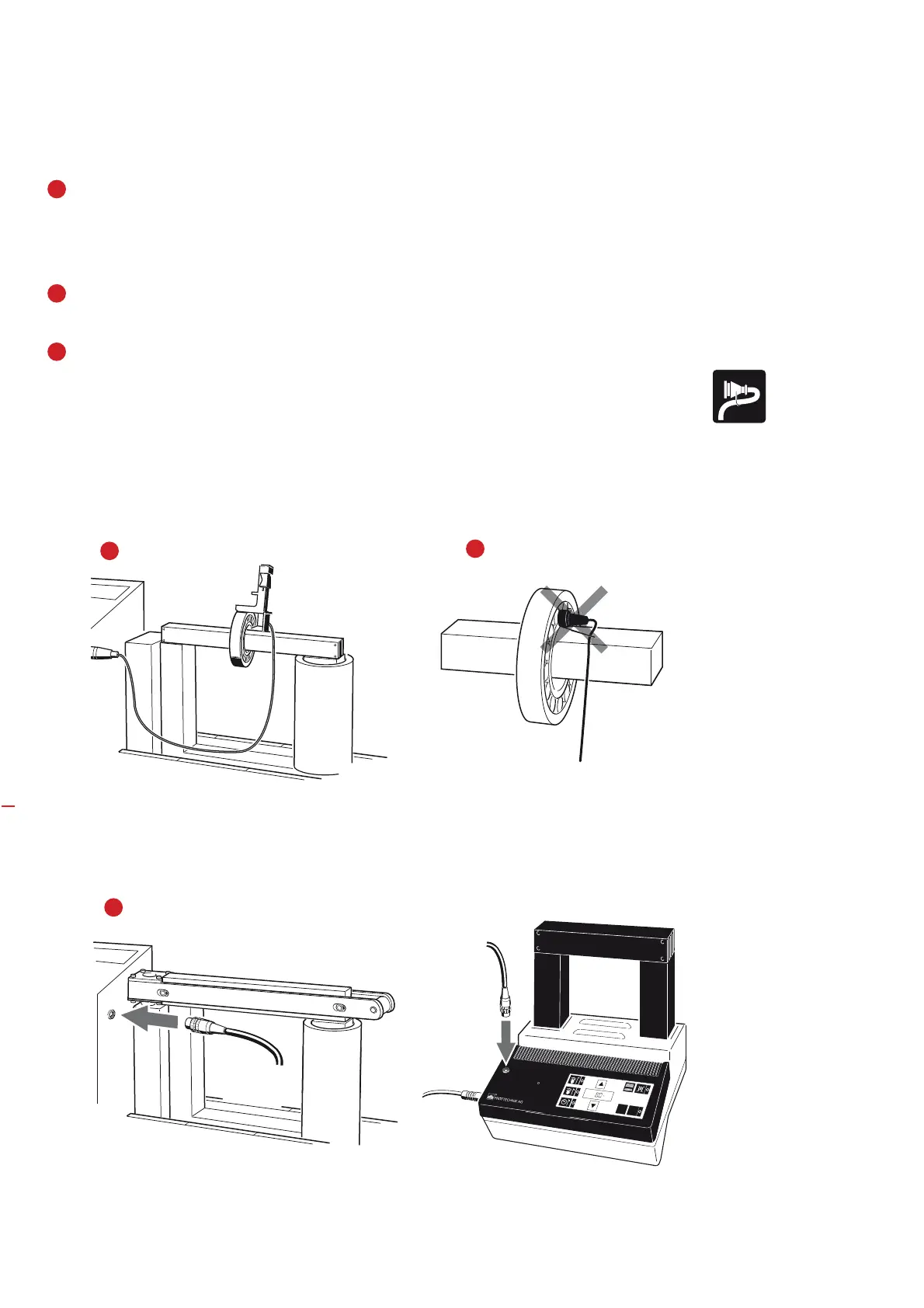

This temperature probe with a clip-on holder is suitable for temperatures up to 140°C/284°F. It is attached so that
the measurement point is located on the side or inside of the workpiece. Unlike the magnetic probe, the clip-type
probe can be attached to non-magnetic workpieces (aluminum, stainless steel).
If the side surfaces of the inner ring of the bearing are too narrow for the magnetic probe, the clip-type probe should
be used.
Connecting the temperature probe
The connector of the temperature probe is plugged into the connector next to the keypad (or to the right beneath
the control panel in the 4x), and is locked with the threaded bushing.
The EDDYTHERM recognizes the connected probe type and automatically limits the temperature programming to
the highest allowable value in each case.
