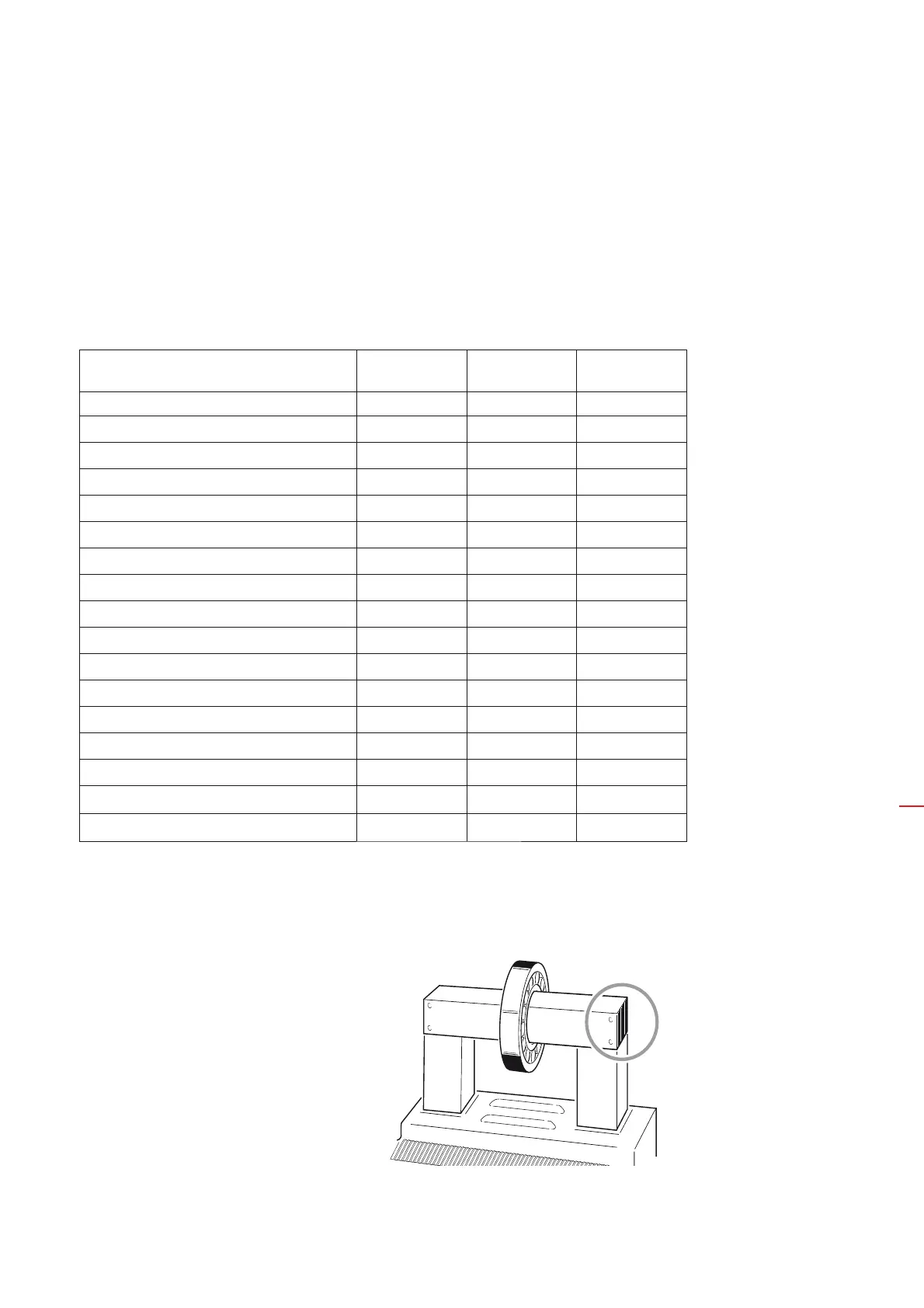

EDDYTHERM operating manual
29
Crossbars
EDDYTHERM is delivered with crossbars in a variety of sizes.
The crossbars consist of thin, laminated sheets. Do not use them as a hammer or lever.
Always mount the crossbars on EDDYTHERM so that their laminates are oriented vertically (with the unpainted side
facing down); see the figure below.
Overview
Scope of delivery
and optional accessories EDDYTHERM Ix EDDYTHERM 1-6 EDDYTHERM 4x
Crossbars for inside ø Order no.
> ø 15 mm ETH 7650
❍❍
> ø 20 mm ETH 7651
●❍
> ø 30 mm ETH 7652
❍●
> ø 43 mm ETH 7653
●❍
> ø 64 mm ETH 7654
❍●
> ø 79 mm ETH 7655
●❍
> ø 86 mm ETH 7656
> ø 43 mm ETH 7648
> ø 58 mm ETH 7647
Container for crossbars ETH 7905
❍❍
Swivel crossbars for inside ø
> ø 108 mm ETH 7640
> ø 79 mm ETH 7641
Demagnetization bar ETH 7670
❍❍
Temp. probe, magnetic holder ETH 7305
●●●
Clip-on type temperature probe ETH 7303
❍❍❍
Optional Included
The crossbars must
be mounted on the
EDDYTHERM with the
laminates in a vertical
position.
