Getting Started
®

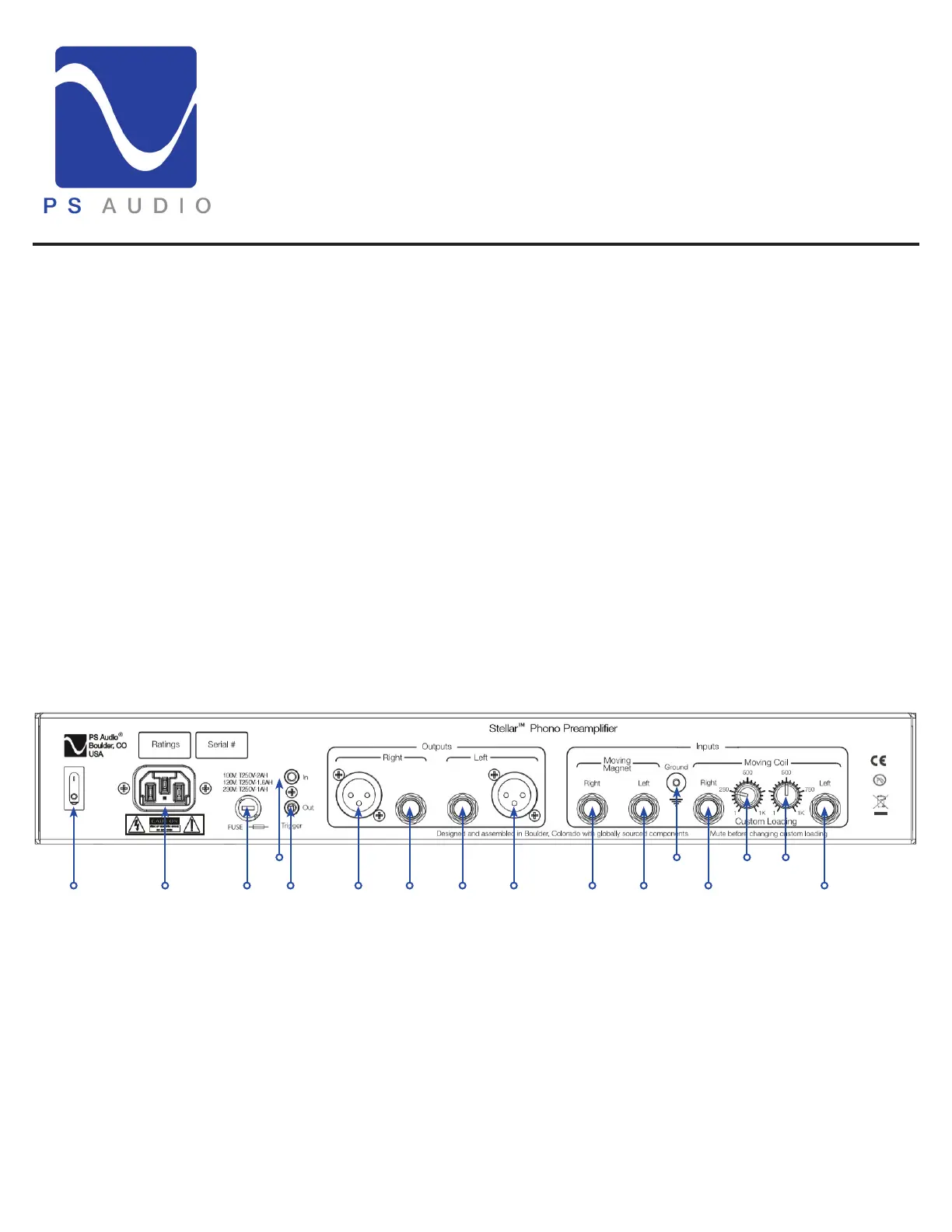

Rear Panel View Master Power Switch1
IEC AC Power Inlet 2
Fuse Socket3
5 Volt -12 Volt Trigger Input4
Single-Ended Right Output7
5 Volt - 12 Volt Trigger Output
5
Balanced Right Output
6
Balanced Left Output 9
Moving Magnet Right Input10
Moving Magnet Left Input11
Ground Binding Post12
Moving Coil Left Input15
Moving Coil Right Input
13
Single-Ended Left Output8
6
Stellar Phono Preamplifier
14 Moving Coil Custom Loading
1 2 3
4
5 6 7 8 9 10
12
11 13
14 14
15
