Advisory audio input
Music input (wired)
Cellular phone
When a cellular telephone is connected to this jack using an adapter cord (PS
Part Number 425-006-7026), the PMA8000BT audio panel will connect the
intercom to the cell phone when the “TEL” button is pressed (10). When
the TEL mode is off, the telephone ringer audio will be heard if it is present
on the telephone’s output (ringer may be muted by radio and intercom).
Audio Advisory Input
The front jack can be used as a priority advisory input for auxiliary systems
such as a GPS terrain advisory or portable traffic watch system. To prevent
radio or intercom from muting this input, press the “Mute” button.
NOTE: The front jack is not a substitute for the certified installation of
alerts such as the GPS waypoint or autopilot tones. These still must be hard
wired into the back by your installer.
“Smart Jack” Function
When the PMA8000BT has an audio signal on music #1 from the rear con-
nector, the front panel jack automatically becomes a Priority Advisory input,
and is heard in the crew headphones, and this input will NOT be muted by
radio or intercom., if the Music 1 audio is actively playing.
Music Input
When used as a music input, the front panel jack (and Bluetooth) music are
treated as Music #1. Using the Music function button, it can be distributed to
all users, depending on the intercom mode.
Smart Function Keys
(SFK)
With voice feedback, the configu-
ration process is self-directed.
These functions are non-essential and non-required and as such are only an
accessory capability. Note: annunciations will be stopped by any audio re-
ceived on the com radio selected for transmit.

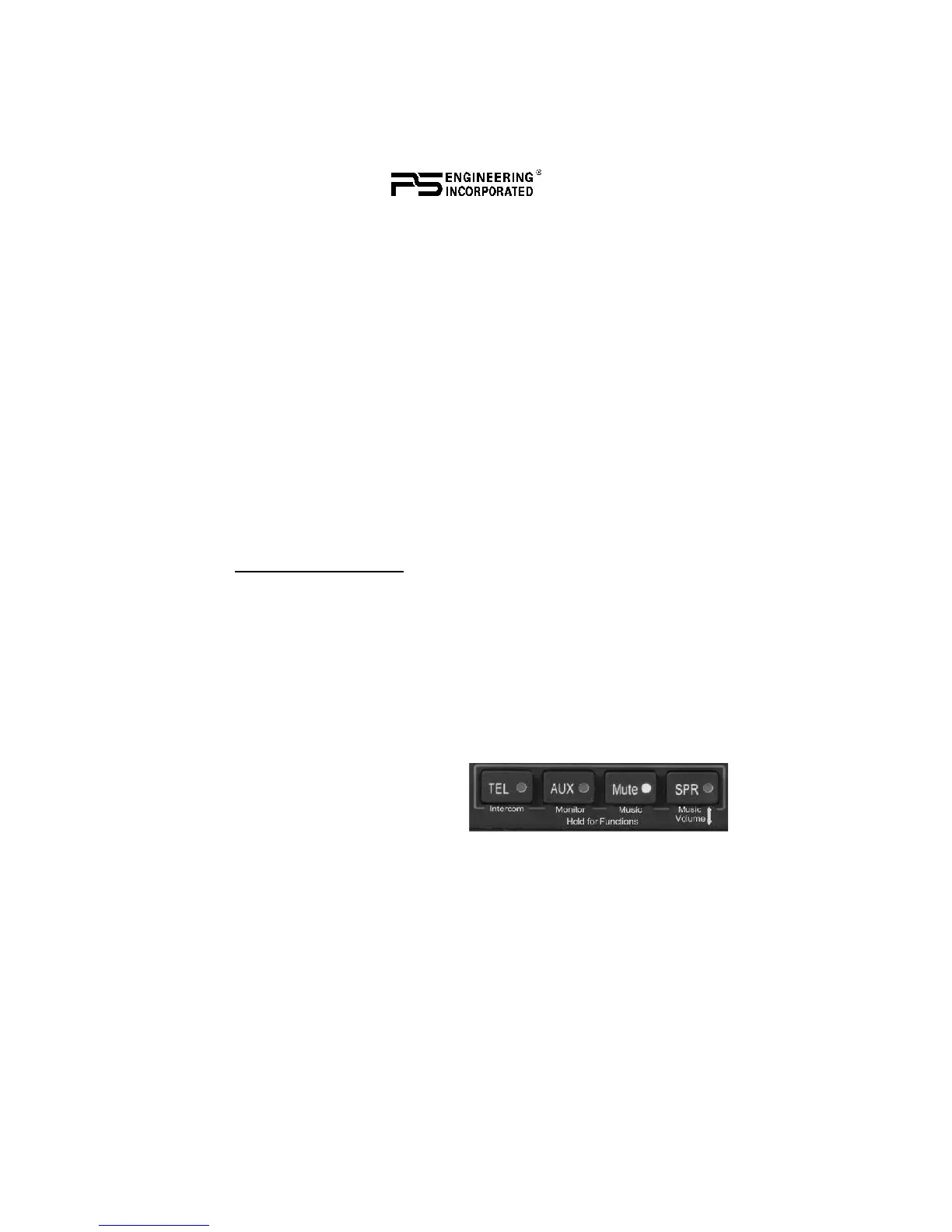

Looking at the front panel you’ll notice that the TEL, AUX, Mute and SPR
buttons have “Function” assignments.
To use these function keys Intercom, Monitor, and Music – press and
hold the desired function key until the audio annunciation of the mode be-
gins. NOTE: SFK are not available in the split mode.
