1.5 MM SPRAY GUN PARTS LIST

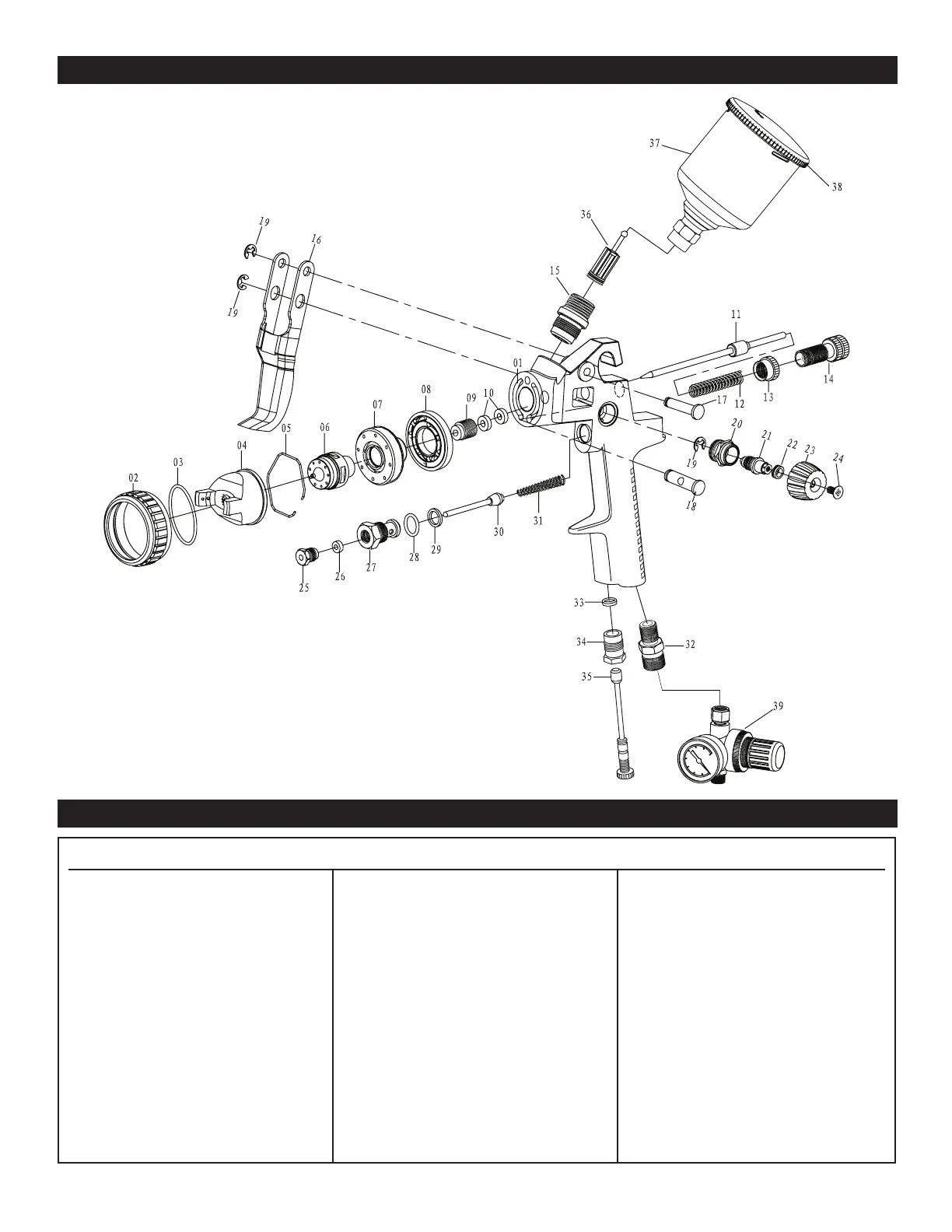

REPLACEMENT PARTS LIST
1. Gun body ............................... 1
2. Nozzle Cap ............................. 1
3. Washer ................................... 1
4. Air Nozzle* .............................. 1
5. Snap Ring ............................... 1
6. FluidNozzle* .......................... 1
7. Brass Ring .............................. 1
8. Nylon Gasket .......................... 1
9. Packing Bushing .................... 1
10. Washer ................................... 2
11. Needle* ................................... 1
12. Spring ..................................... 1
13. Lock Nut ................................. 1
14. Fluid Volume Control Knob .... 1
15. Paint Cup Bushing ................. 1
16. Trigger .................................... 1
17. Trigger Pivot Pin ..................... 1
18. Needle Actuator Pin ............... 1
19. E-Clip ..................................... 3
20. Spray Regulator Nut ............... 1
21. Spray Regulator Screw .......... 1
22. Nylon Seal .............................. 1
23. Spray Pattern Control Knob ... 1
24. Screw ..................................... 1
25. Needle Valve Bushing ............ 1
26. NylonRing .............................. 1
27. Air Valve ................................. 1
28. O-Ring .................................... 1
29. Washer ................................... 1
30. Needle Valve .......................... 1
31. Spring ..................................... 1
32. Air Inlet Bushing ..................... 1
33. Washer ................................... 1
34. Air Volume Control Stem ........ 1
35. Air Valve Stem Bushing .......... 1
36. PaintCupFilter* ..................... 1
37. Paint Cup Assembly* ............. 1
38. Lid .......................................... 1
39.
Air Regulator/Gauge Assembly*
1
# Description Qty. # Description Qty. # Description Qty.
*Asterisk denotes parts included in repair kit, M710CK
Call Customer service for replacement parts: 1-800-497-0552
