VFD Driver/Controller IC PT6315
PT6315 v2.0 Page 12 Sep. 2002
COMMAND 4: DISPLAY CONTROL COMMANDS
The Display Control Commands are used to turn ON or OFF a display. It also used to set the pulse
width. Please refer to the diagram below. When the power is turned ON, a 1/16 pulse width is
selected and the displayed is turned OFF (the key scanning is stopped).

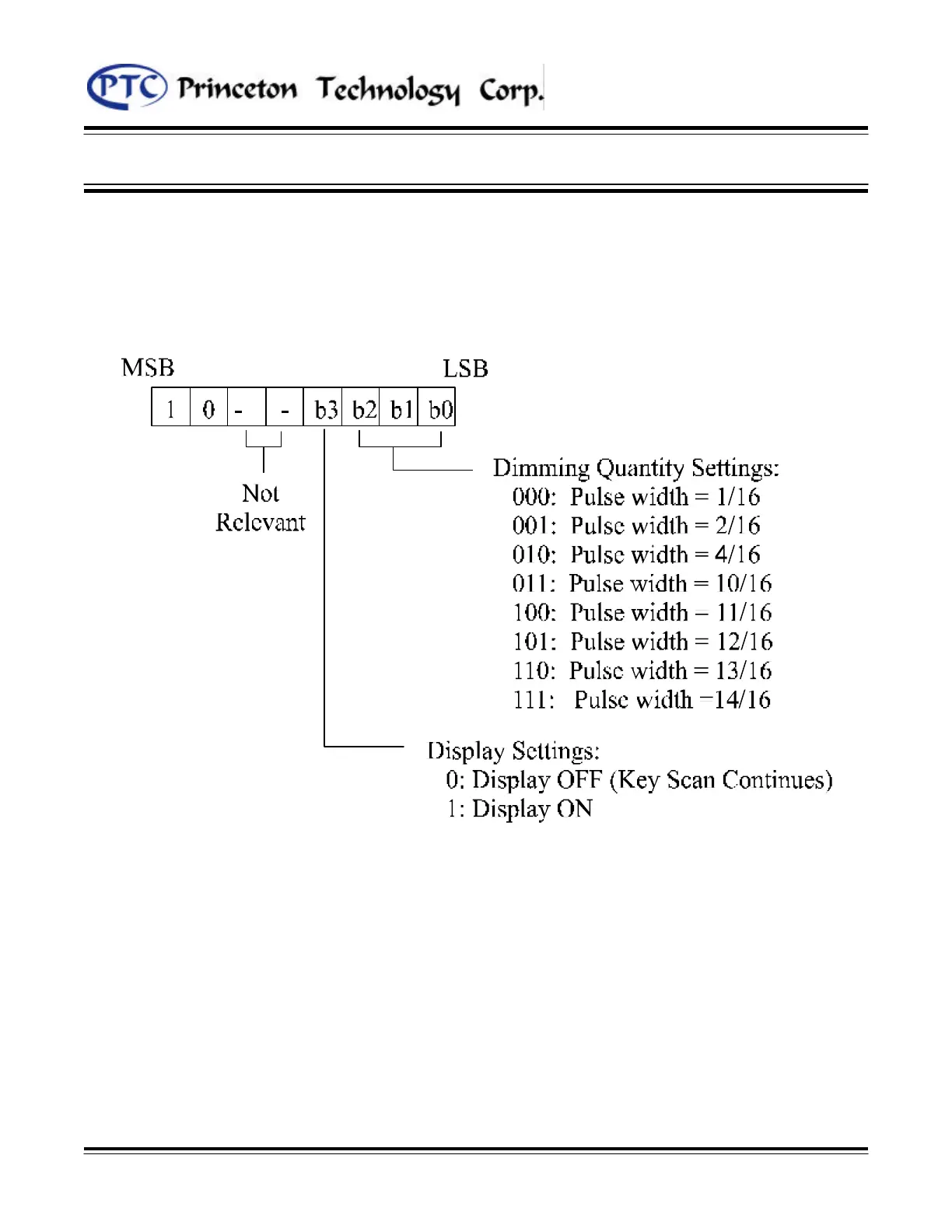

Figure 11: Display Control Settings
To Next Page
