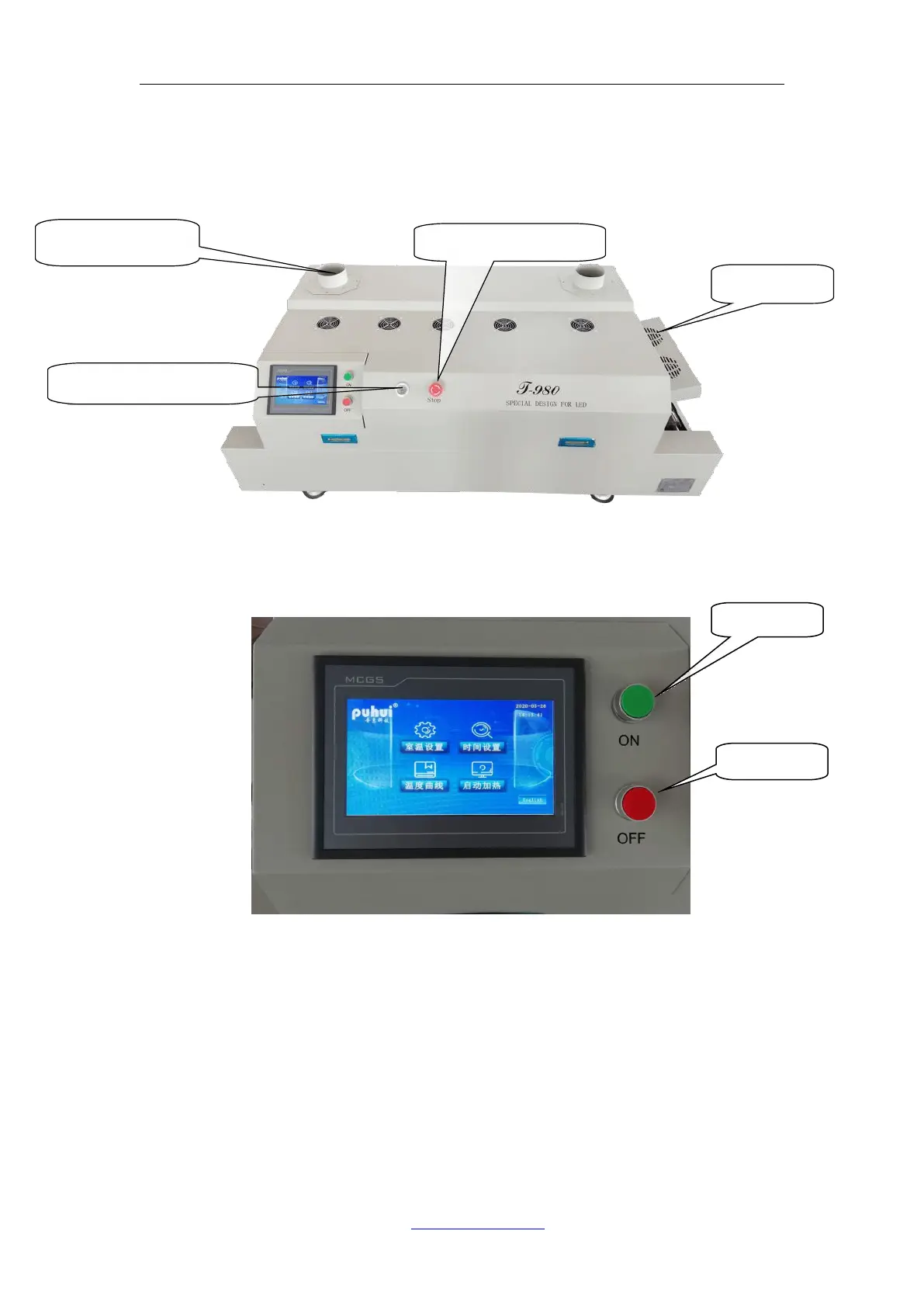

Description of the main parts
1. Welding table main body
2.Control panel
3.The instruction of the connecting line
Remove the sealing plate screw of the power wiring cabinet at the back of the
machine, remove the sealing plate, and press the power line on the terminal block in
sequence according to the wiring requirements of L, N and PE. L1, L2 and L3 are
respectively connected to the three phases of three-phase power, N connect neutral
line and PE connect ground line.The wiring diagram as follow:
Start button
Stop button
Exhaust pipe joint
Status indicator lamp
Cooling fan
Emergency stop button
