4. Adjust the eyepiece diopter ring (4)until the symbols in the display are
sharp.
5.Loosen the screw(3) with an Allen key S3.

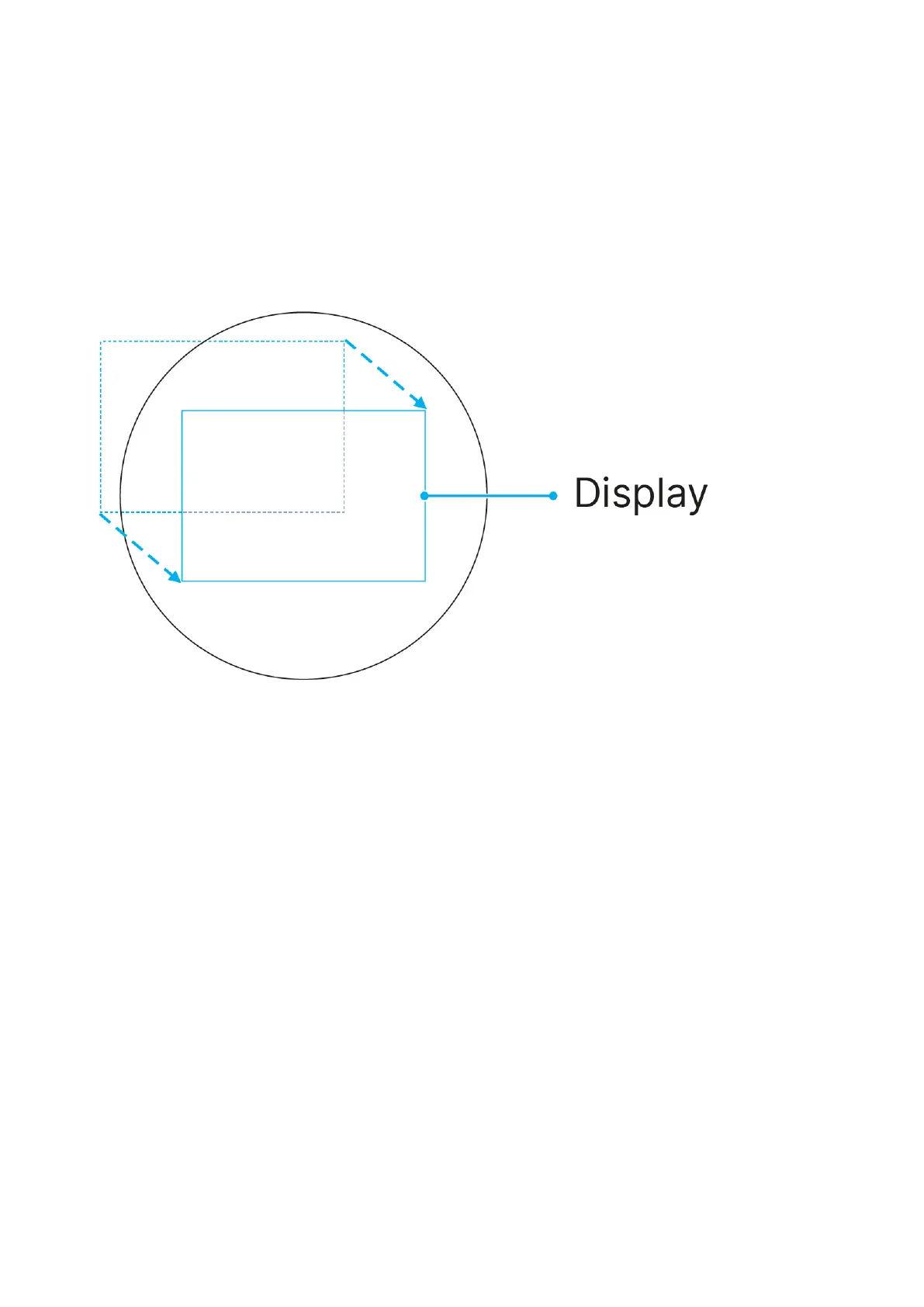

6. Align the display to the centre of the image in the monocular by tilting
the thermal imaging module in the required directions.
7. Lock the monocular in the chosen position by tightening the screw(3)
until it stops (clamping force – 2.5 Nm/ 22.13 in-lbs).
8. To remove the monocular, turn it counterclockwise and disconnect from
the thermal imaging module.
